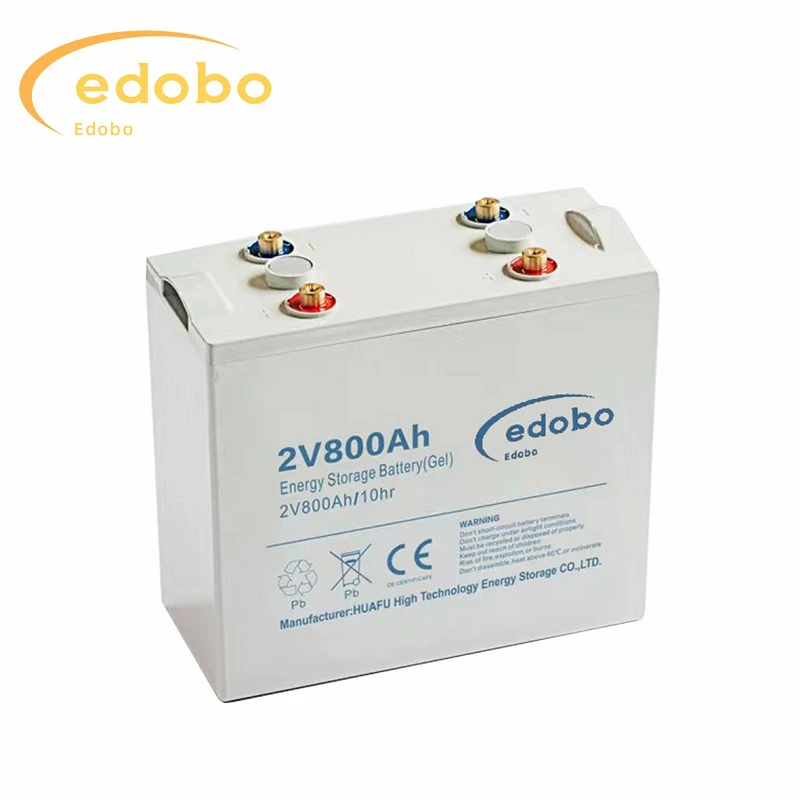

Hnub ci vaj huam sib luag Gel roj teeb
Rated Peev Xwm: 800 Ah (10 hr, 1.80 V / cell, 25 degree)
Qhov hnyav (Kg, ± 3%): 46.7 kg
Terminal: tooj liab M8
Them nqi siab tshaj tam sim no: 200.0 A
Hauj lwm lawm
Kev tsis
Gel roj teeb Specifications rau lub zog cia
Specifications: CNJ-800
Qauv
Lub roj teeb muaj feem ntau ntawm cov phaj zoo, daim hlau tsis zoo, cov khoom sib cais, electrolyte, kev nyab xeeb li qub, lub plhaub roj teeb thiab lub hau npog.
Cov khoom Standard
GB/T 22473-2008
IEC 61427-2005
Khoom Parameters
| Rated Voltage | 2V | |
| Rated Peev Xwm | 800 Ah (10 teev, 1.80V / cell, 25 degree) | |
| Kwv yees qhov hnyav (Kg, ± 3%) | 4 6,7kg | |
| Terminal | Tooj M8 | |
| Maximum Charge Current | 200.0 A | |
| Ambient Kub | -35 ~ 60 degree | |

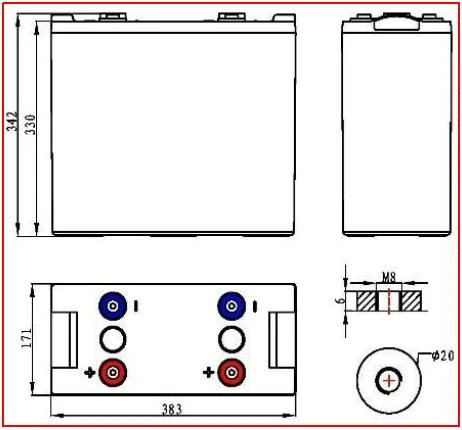

| Dimension (± 3%) | Ntev | 3 83mm |
| Dav | 1 71mm | |
| Qhov siab | 330 hli | |
| Tag nrho qhov siab | 342mm ua | |
| Case | ABS | |

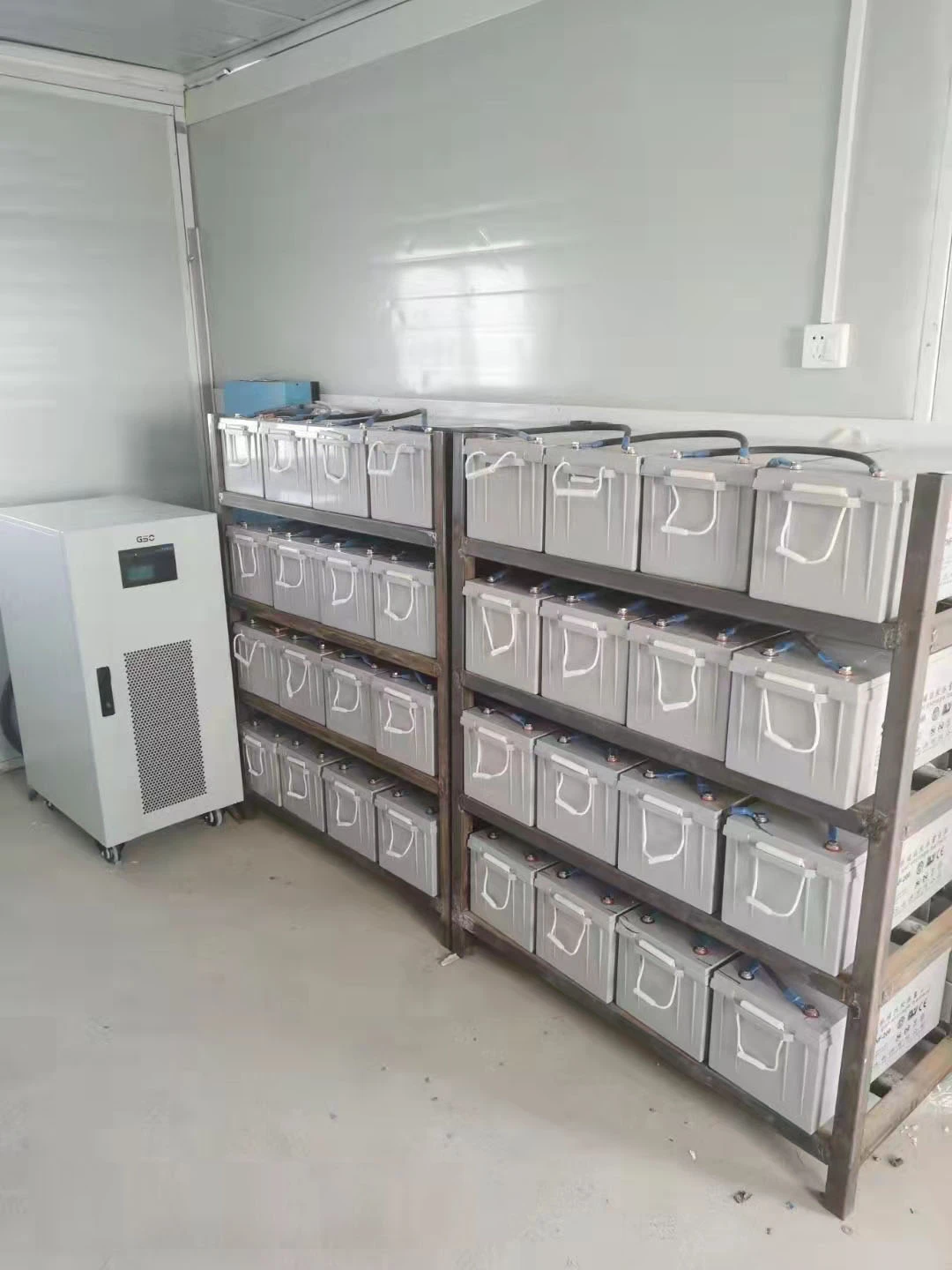

| Daim ntawv thov | Hnub ci (cua) siv lub tsev, Chaw nres tsheb hluav taws xob, Hnub ci (cua) kev sib txuas lus chaw nres tsheb, Hnub ci txoj kev teeb, Txawb lub zog cia system, Hnub ci tsheb teeb, Hnub ci lub tsev, thiab lwm yam. | |
Gel roj teeb Specifications rau lub zog cia
Roj teeb yam ntxwv nkhaus
Cov yam ntxwv tseem ceeb:
♦ Gelled electrolyte ua los ntawm kev sib xyaw sulfuric acid nrog silica fume.
♦ Cov electrolyte yog gel zoo li, immobile thiab tsis xau, ua rau cov tshuaj tiv thaiv tsis sib xws ntawm txhua feem ntawm cov phaj.
♦ Kev ua haujlwm siab tshaj tawm vim kev siv tshuab nruj.
♦ Muaj zog cua sov dissipation thiab dav kev khiav hauj lwm kub ntau yam.
♦ Tsis txhob muab cov kua qaub cais tawm, ib puag ncig tus phooj ywg.
♦ Ua kom muaj cua txias tso tawm cov roj ntau dhau tuaj.
Edobo, lub tuam txhab tsim hluav taws xob hnub ci nrog ntau tshaj 20 xyoo ntawm kev paub, tshwj xeeb hauv kev tsim thiab muag cov hnub ci vaj huam sib luag, hnub ci hluav taws xob tsim tshuab, inverters, thiab roj teeb.
Peb lub tuam txhab txaus siab rau nws tus kheej ntawm kev muab kev pabcuam tshwj xeeb rau cov neeg siv khoom ua ntej, thaum, thiab tom qab muag. Peb pab neeg muag khoom tau cog lus kom nkag siab txog koj cov kev xav tau ntawm lub zog tshwj xeeb thiab muab kev daws teeb meem zoo tshaj plaws rau hnub ci zog rau koj. Peb txaus siab rau peb tus kheej uas muaj peev xwm muab cov nqi sib tw thiab cov nqe lus them nqi hloov pauv kom ntseeg tau tias koj tau txais tus nqi zoo tshaj rau koj cov peev txheej.
Thaum lub sijhawm muag khoom, peb siv sijhawm los qhia koj txog cov txiaj ntsig ntawm lub hnub ci zog thiab teb cov lus nug uas koj muaj. Peb kuj muab cov ncauj lus kom ntxaws txog cov khoom lag luam thiab cov lus qhia tshwj xeeb los pab koj txiav txim siab paub.
Thaum koj ua qhov kev yuav khoom, peb pab neeg txhim kho yuav daws cov txheej txheem installation seamlessly. Peb pab pawg ntawm cov kws tshaj lij tau mob siab rau ua kom muaj kev hloov pauv ntawm kev yuav khoom mus rau kev ua haujlwm. Peb txaus siab rau peb tus kheej ntawm peb txoj kev mob siab rau kev nyab xeeb thiab ua tib zoo saib xyuas kom meej, kom ntseeg tau tias koj lub hnub ci tau teeb tsa kom raug thiab nyab xeeb.
Tom qab kev muag khoom, peb muab kev saib xyuas cov khoom lag luam, kev txhawb nqa, thiab kev tiv thaiv kev tiv thaiv. Peb pab neeg muab kev pabcuam rau cov neeg siv khoom txaus siab tuaj yeem pab koj nrog cov lus nug lossis kev txhawj xeeb uas koj muaj. Peb txaus siab rau peb tus kheej ntawm peb txoj kev cog lus rau cov neeg siv khoom txaus siab thiab ib txwm nyob ntawm no los pab.
Nrog rau ntau tshaj 20 xyoo ntawm kev paub thiab lub koob npe nrov, Edobo yog tus thawj coj ntawm lub hnub ci zog daws teeb meem. Tiv tauj peb hnub no kom paub ntau ntxiv txog peb cov khoom thiab cov kev pabcuam lossis teem sijhawm sib tham.
Cim npe nrov: Tuam Tshoj hnub ci vaj huam sib luag gel roj teeb lwm tus neeg, Hoobkas
