100MW-600MW Hnub Ci Pv Module Ntau Lawm Kab

Puas yog koj tab tom nrhiav venture rau hauv kev lag luam hnub ci lossis nthuav koj cov haujlwm tam sim no? Ntawm Edobo Hnub Ci, peb muab cov khoom siv hnub ci vaj huam sib luag saum toj kawg nkaus los pab koj teeb tsa koj tus kheej cov kab tsim khoom. Nrog peb cov tshuab thev naus laus zis, koj yuav tuaj yeem tsim cov hnub ci ua haujlwm siab kom haum rau koj lub lag luam xav tau.

Xa kev nug

Hauj lwm lawm

Kev tsis

Solar Panels Production Lay up (mechanical type)

product-1600-900

Txheej (mechanical type)

1-1

1. Txoj kev pub mis yog luv luv thiab ntev, thiab cov cuab yeej ua haujlwm yog los npaj lawv nyob rau hauv ib qho kev sib raug zoo. Sab ntev ntawm cov hlua roj teeb yog sib npaug rau sab ntev ntawm cov khoom siv. Cov txheej txheem hauv zos tuaj yeem siv los npaj cov khoom ntawm 96, 72, thiab 60 daim, thiab muaj kev hloov kho txhua yam.

2. Tsis siv neeg tau txais cov hlua roj teeb, khaws cov hlua roj teeb rau cov neeg kho tshuab txoj haujlwm, thiab ua ntej lub iav ncaj

3. Tau txais iav thiab EVA los ntawm cov kab ntau lawm. Nqa cov hlua roj teeb los ntawm qhov chaw kho tshuab. Muab lub roj teeb tso rau hauv series ntawm EVA raws li qhov zoo thiab qhov tsis zoo electrodes. Tom qab ua tiav tag nrho cov kev ua, cov khoom tsim tawm.

4. Cov hlua roj teeb tau muab tso rau ntawm qhov pom kev pom, qhov chaw fiber ntau optic, thiab qhov chaw kho tshuab.

Solar Panels Production Lay up (mechanical type)

product-1080-67

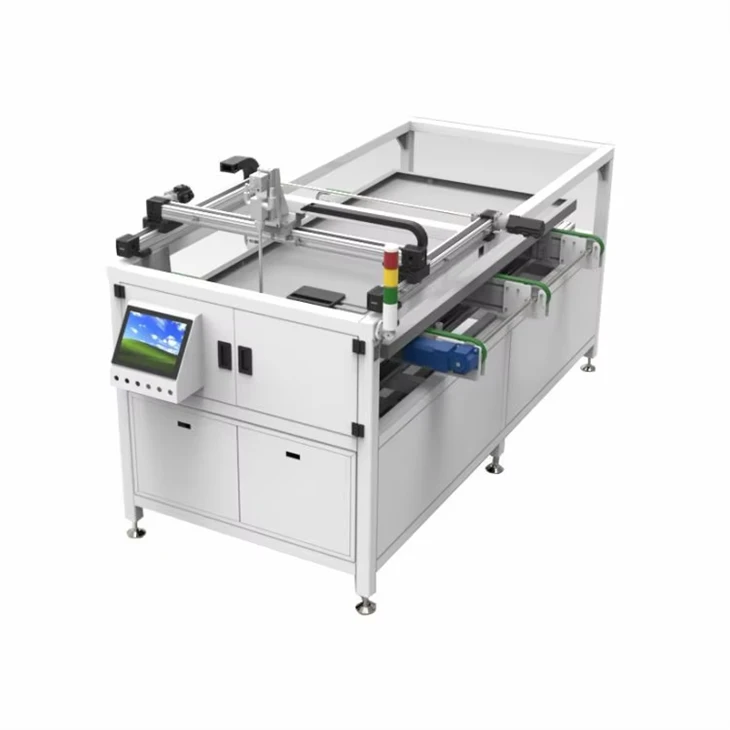

1. Lub tshuab siv lub tshuab synchronous siv, tsav los ntawm servo lub cev muaj zog, thiab coj los ntawm cov kab qhia kev tsheb ciav hlau, uas muaj qhov zoo ntawm qhov tseeb qhov chaw, kev ua haujlwm ruaj khov, thiab ceev ceev.
2. Lub khob nqus dej yog ua los ntawm polyurethane thiab yuav tsis muaj qhov cim tseg ntawm txoj hlua roj teeb tom qab nqus.
3. Lub tshuab yog nruab nrog lub zog thiab kev tiv thaiv roj.
4. Lub tshuab ua haujlwm tsis siv neeg thiab tsis tas yuav muaj kev cuam tshuam los ntawm phau ntawv.
5. Qhov tseeb qhov chaw ntawm cov hlua roj teeb yog ± 0.3 millimeters
6. Rau txoj hlua hluav taws xob nyob nruab nrab ntawm 1-10 millimeters sib nrug
7. Tau tshaj ntau txoj hlua roj teeb, loj 156/182/210, 6-12 daim
8. Lub ntsiab solar hlwb ntiv tes yog sib xws nrog 2/3/4/5 ntiv tes

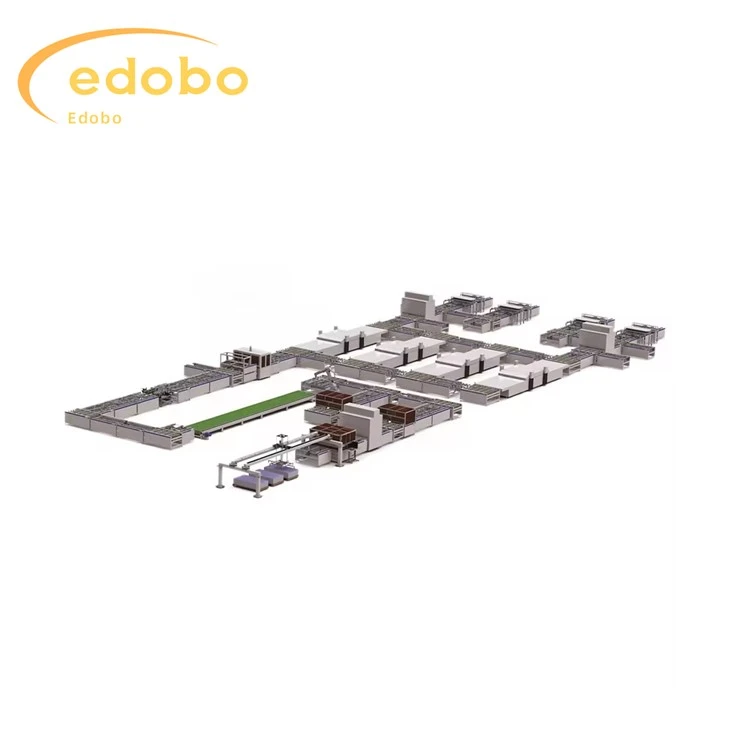

Solar panel production line

Solar Panels Production Lay up (mechanical type)

(1) Ntau lawm kab muaj peev xwm: 100MW-600MW/xyoo.
(2) Cov khoom siv hluav taws xob xav tau yog 380V (peb-theem tsib xaim system), thiab lub zog xav tau tuaj yeem pom nyob rau hauv cov khoom siv ntawm txhua chav. Cov kab hluav taws xob teeb tsa yuav muab cais los ntawm peb lub tuam txhab.
(3) Kev xav tau cua compressed rau cov khoom siv yog 0.6-0.8MPa, qhuav, huv si, thiab ua tau raws li cov kev cai ntawm cov kab ntau lawm; Plua plav yam tsawg dua lossis sib npaug li 1um, dej siab dew point Tsawg dua lossis sib npaug rau -40 degree , roj (nrog rau chav) Tsawg dua lossis sib npaug rau 0.1mg/;
(4) Kev huv huv ntawm huab cua hauv lub Hoobkas yuav tsum tsis pub tsawg dua 300000 qib (ISO Class 8);
(5) Cov khoom siv kis tau tus mob ceev: Lub sijhawm sib kis tau tsawg dua 22s, uas ua tau raws li qhov yuav tsum tau muaj peev xwm ntawm 500MW / xyoo. Tag nrho cov kab tau txais kev tswj hwm qhov sib txawv ntawm qhov ceev, nrog rau kev tswj hwm ceev ceev ntawm 30HZ thiab kev tswj ceev ntawm 0-50HZ (kev ceev tshwj xeeb tuaj yeem pom nyob rau hauv cov khoom tsis sib xws ntawm txhua chav);
(6) Sab nraud qhov ntev ntawm cov kab sib kis: Cov khoom siv no yog cov khoom siv tsis zoo, thiab daim duab kos duab kawg yuav muab los ntawm Edobo Solar;
(7) Kev sib dhos kab qhov siab thiab kev hloov kho ntau yam: Muaj qee qhov siab qhov sib txawv ntawm tus kheej cov cuab yeej siv thiab chav sib kis. Rau cov ncauj lus kom ntxaws sab nraud, thov xa mus rau cov kev tsis sib xws ntawm tus kheej cov cuab yeej; Qhov siab ntawm chav sib kis feem ntau yog 950mm ± 30mm;
(8) Cov kab sib kis thiab cov khoom siv ua haujlwm tuaj yeem hloov kho ntawm cov khoom ntawm qhov ntev (1650mm-2600mm) * dav (950mm-1500mm), ua kom muaj kev thauj mus los ntawm cov khoom hauv ntau txoj kev lamination.
(9) Cov kab sib kis yog du thiab qhov loj me me yog tsawg dua 10mm;
(10) Thaum cov cuab yeej ua haujlwm ib txwm ua, qhov cuam tshuam tsis ua haujlwm los ntawm cov khoom siv thiab cov kab sib txuas yog tsawg dua 1/1000;
(11) Lub suab nrov thaum lub sijhawm ua haujlwm khoom tsawg dua lossis sib npaug li 72dbA (tsis suav cov twj compression)

Solar Panels Production Lay up (mechanical type)

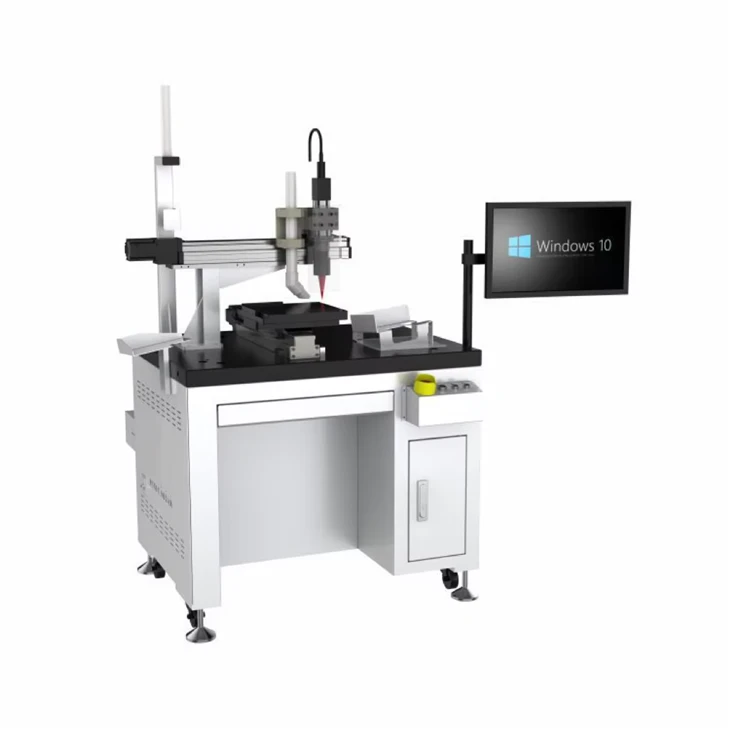

1. Lub xovtooj ntawm tes txais CCD pom qhov chaw, uas muaj qhov zoo ntawm qhov raug thiab ruaj khov;
2. Cov cuab yeej tuaj yeem tau txais, txiav layout thiab txiav cov khoom xa tawm, thiab cov txheej txheem yog qhov tseeb;
3. Lub khob nqus dej yog ua los ntawm cov khoom siv silicone uas tuaj yeem, uas yuav tsis tawm ntawm qhov chaw ntawm lub roj teeb;
4. Txais peb-axis mechanical motion mode (rotating 180 degree);
5. Lub lateral txav adopts linear motor module, uas muaj qhov zoo ntawm kev txav ceev ceev, siab rov ua dua qhov tseeb thiab kev ua haujlwm ruaj khov, txuag lub sijhawm tag nrho;
6. Ntev thiab luv ntug kev hloov kho hloov kho sai sai, kev hloov kho sai, yooj yim, yooj yim thiab txhim khu kev qha; Solar Panels Production Lay up (mechanical type)
