100MW Hnub Ci Vaj Huam Sib Luag Kab Ntau Lawm

100MW hnub ci vaj huam sib luag ntau lawm kab muaj pes tsawg leeg

Xa kev nug

Hauj lwm lawm

Kev tsis

Hnub ci vaj huam sib luag ntau lawm kab 100MW hnub ci vaj huam sib luag ntau lawm kab muaj pes tsawg leeg:

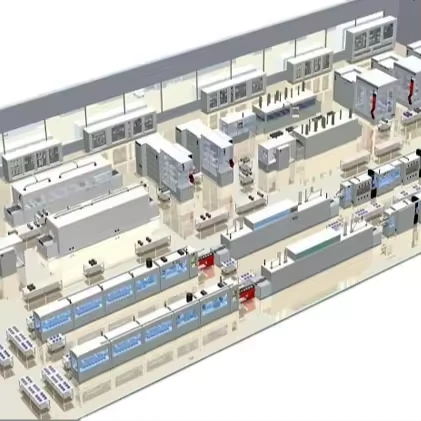

100MW solar panel production line composition:

100MW hnub ci vaj huam sib luag ntau lawm kab muaj pes tsawg leeg:

Cov kab ntau lawm specification:
1. 100MW module ntau lawm kab (1).
2. Beat: Tsawg dua lossis sib npaug li 45 vib nas this / thaiv.
3. Hom vaj huam sib luag tsim: cov pa puv-hlwb / ib nrab-hlwb hnub ci vaj huam sib luag.
4. Hnub ci cell loj: 166-210mm.
5. Hnub ci vaj huam sib luag loj: L (1956 ~ 2300mm) x W (990 ~ 1200mm) x T (25 ~ 45mm).
6. Hnub ci ribbon hom: tiaj vuam ribbon;

Kev piav qhia ntawm kab ntau lawm:

Ua ntej lub lamination: iav chaw thau khoom, EVA chaw thau khoom, chaw ntim khoom, chaw nres tsheb npav, EVA thiab chaw thau khoom rov qab, ua ntej txheej EL / VI tshuaj xyuas thiab kho thaj chaw, pawg (cov kab ntau lawm caching txheej txheem), conveyor system
Tom qab lamination: trimming thiab gluing thiab framing cheeb tsam, junction box vuam thiab gluing cheeb tsam, kho kab, tu thiab kuaj cheeb tsam, binning cheeb tsam, conveyor system

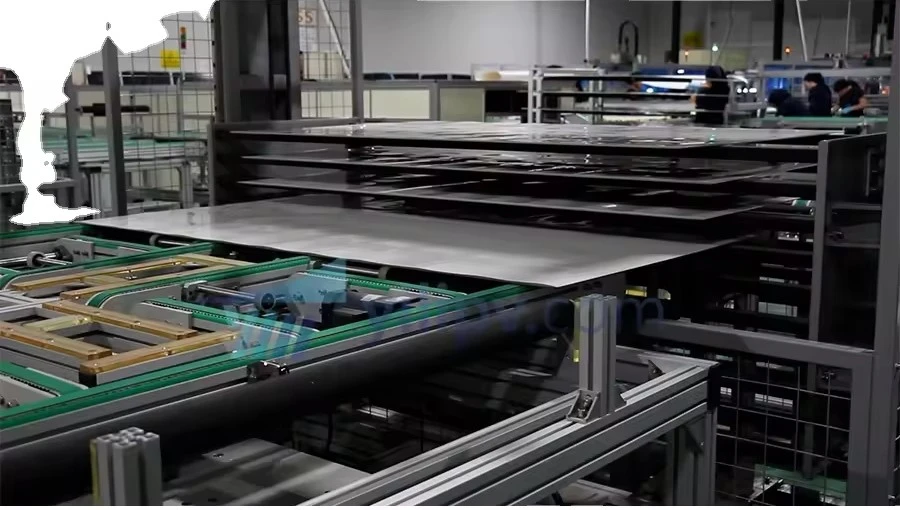

100MW solar panel production line composition:

Kev ua haujlwm ntawm cov tshuab tseem ceeb

Tsis muaj.	Khoom npe	Kev piav qhia
1	Automatic cell stringer	Tsis siv neeg cell stringer rau weld solar cells ntawm 5, 6, 9, 10, 11, 12 bb rau hauv hnub ci xov tooj ntawm tes txiav hauv kev sib txuas raws li kev teeb tsa.
2	Tsis siv neeg EVA txiav thiab tso tshuab	Tsis siv neeg EVA txiav thiab nteg tshuab yog tsim los ntawm iav kis tau tus mob conveyor, positioning mechanism, tsis siv neeg txiav thiab xuas nrig ntaus thiab tsis siv neeg tso mechanism, thiab lwm yam.
3	Laminator	Laminator yog siv rau lub hnub ci vaj huam sib luag lamination.
4	Framing tshuab	Framing tshuab yog siv rau framing PV module txiav.
5	Trolleys ntawm lub hnub ci vaj huam sib luag ntau lawm kab	Trolleys ntawm lub hnub ci vaj huam sib luag ntau lawm kab yog siv rau kev thauj mus los ntawm iav / Modules / Vaj Huam Sib Luag ntawm ntau theem ntawm ntau lawm.
6	IV tester	IV tester feem ntau yog siv los kuaj thiab sau cov hnub ci cell module kev ua haujlwm tsis zoo.
