Muaj nuj nqi thiab Kev Taw Qhia
Online manually thauj khoom profile hauv cov khoom siv.

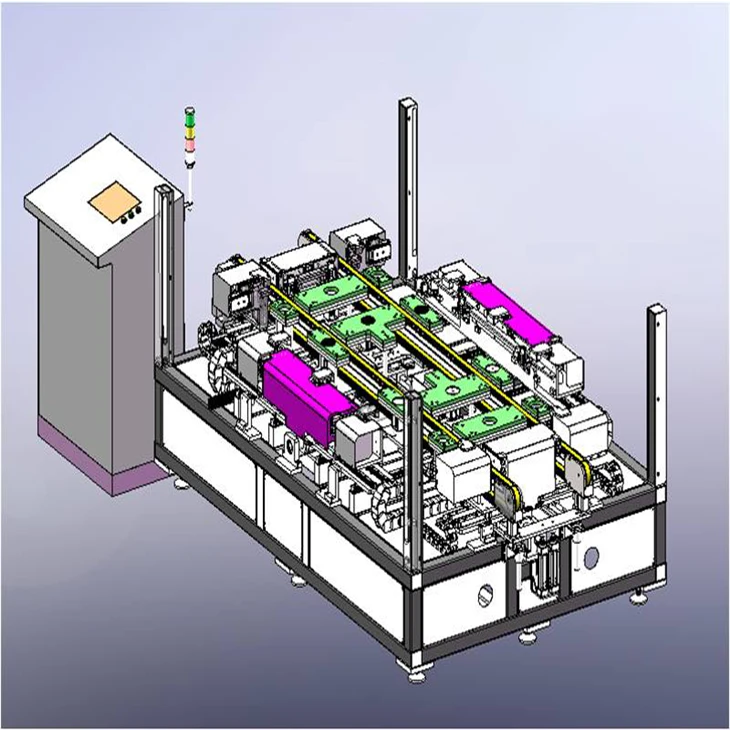

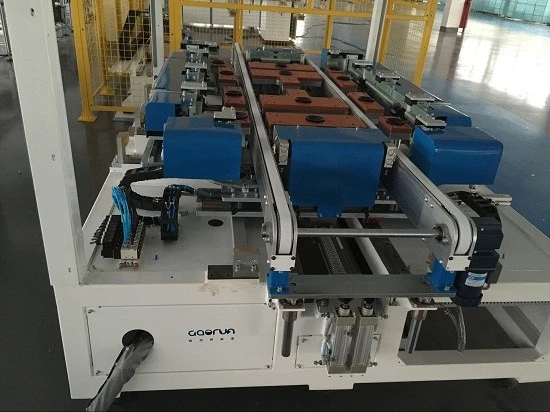

Thaum cov modules ntawm txoj hauj lwm thiab thav duab yog npaj txhij, lub tog raj kheej cua yuav hloov kho thiab clamp. Servo lub cev muaj zog yuav nruab tus ncej tib lub sijhawm.
1. Ntev / luv ntug rau pem hauv ntej.
2.Conveying hom: Synchronous siv conveying.
3. Conveying Qhov siab: 960 ± 50mm.
4.Length thiab dav yog adjustable raws li module dimension, adopting ceev locking fixture, sai kho nyob rau hauv thiaj li yuav ua tau raws li sib txawv modules.
7.Control hom: tswj lub cev muaj zog + Servo tsav.
8.Operational hom: Tsis siv neeg / phau ntawv.
9.HMI: Suav + touchscreen.
Main Parameter
Applicable module dimension:2000mm >long edge >150mm, 1000mm>Luv ntug 800mm, hnyav dua 30kg.
Lub sij hawm voj voog: 35s
Max peev xwm: Ntau dua lossis sib npaug rau 2400 / hnub
Cov neeg ua haujlwm hauv online: 2
Rated zog: 3.0kw
Kev sib txuas hom: Φ12
Qhov Loj (LXWXH): 2779mm * 2249mm * 950mm
Qhov zoo
1.Cov cuab yeej xaiv servo lub cev muaj zog uas muaj qhov zoo xws li qhov tseeb thaum tsiv thiab ruaj khov.
2.Cov khoom siv muaj cov qauv sib npaug, 12 khub ntawm lub khob nqus dej kom sib npaug.
3.Suction khob yog ua los ntawm ntshuam silica gel cov ntaub ntawv, yuav tsis tawm ntawm qhov chaw.
4.12 khub ntawm lub khob nqus dej ua ke nrog ib qho, kev hloov kho txais cov qauv ntawm tes rocker, sai, yooj yim, yooj yim thiab txhim khu kev qha.
5.Cov cuab yeej muaj cov txheej txheem ncaj.
6. Kev hloov kho ntawm ntug ntev thiab luv luv txais cov qauv xauv nrawm, nrawm, yooj yim, yooj yim thiab txhim khu kev qha.
7.Framing quab yuam rau luv ntug yog txog 2.2 tons.
8. Qhov tseeb: ± 1mm rau cov npoo ntev thiab luv, kab pheeb ces kaum Tsawg dua lossis sib npaug li 1.5mm.
9. Txawm dhau lawm: tsim nyog tus nqi ＞ 98%.
|
