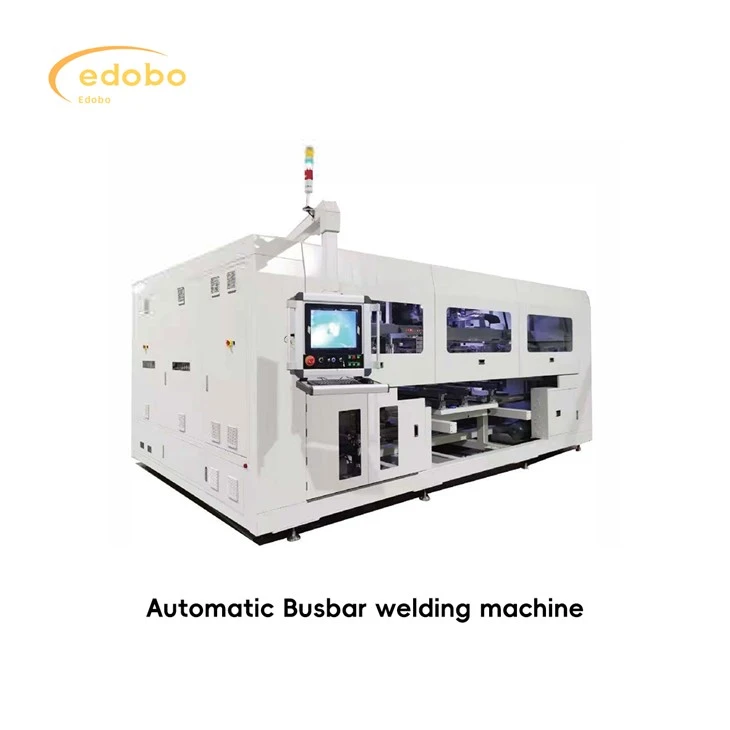

Solar Cells Busbar Vuam Tshuab

Cov cuab yeej muaj nuj nqi: ncab, raug, txiav, khoov, thiab muab lub taub hau, tus Tsov tus tw, thiab nruab nrab busbars, thiab siv lub lifting tes los ua qhov thib ob calibration ntawm txoj hlua ntawm lub module. Cov xov hlau ntawm lub taub hau thiab tus Tsov tus tw ntawm txoj hlua yog soldered ua ke nrog cov busbars hauv ib qho mus thiab xa mus rau qhov chaw ua haujlwm tom ntej. Lub tshuab no yog xaiv tau nrog cov xim dub scraping muaj nuj nqi, tom qab soldering nrhiav muaj nuj nqi, thiab busbar punching muaj nuj nqi.

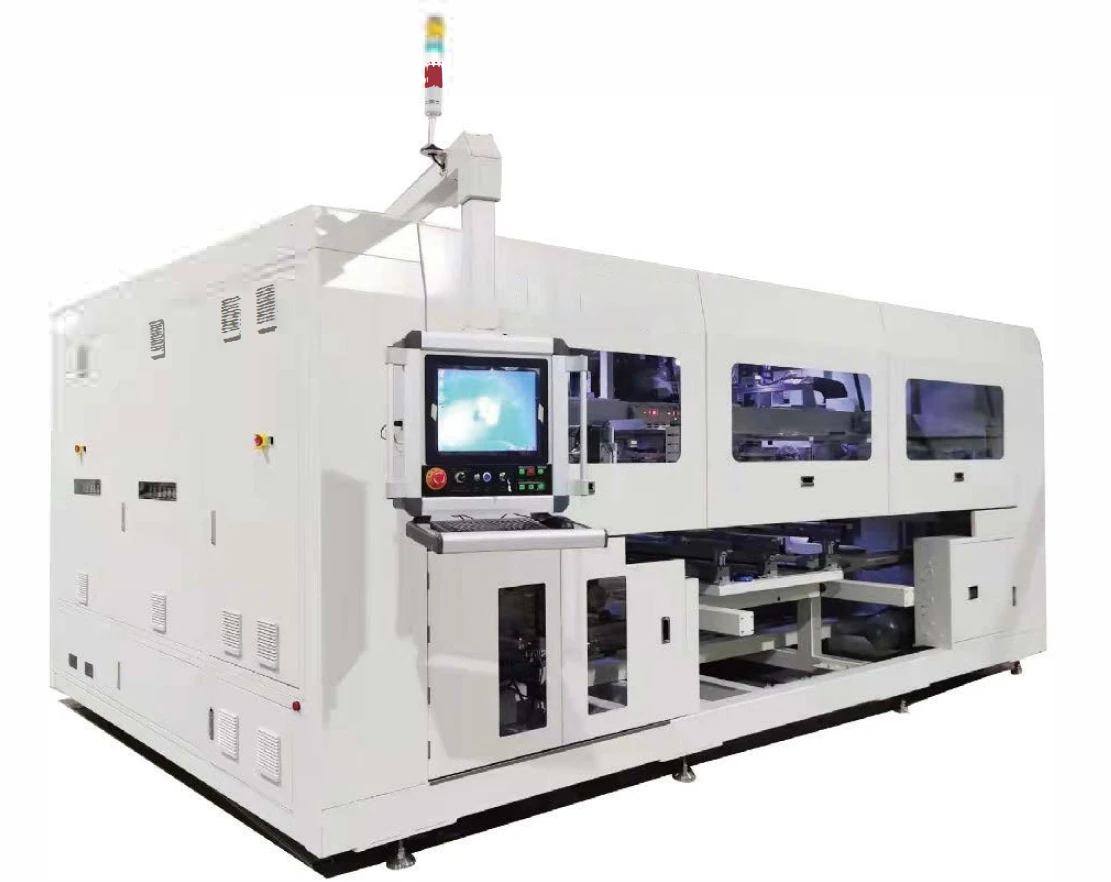

Auto Bussing

Cov kab sib dhos hloov cov kab sib txuas ntawm tes mus rau pem hauv ntej qhov chaw nres tsheb ntawm lub tsheb npav pib, thiab muab lub teeb liab rau lub cell vaj huam sib luag nyob rau hauv qhov chaw thov nkag. Lub tshuab pib bussing tau npaj kom tso cai rau cov kab sib dhos kom ntws module mus rau hauv txoj hauj lwm ntawm lub tshuab bussing thiab xa cov teeb liab tso cai nkag; Lub cev muaj zog khiav mus txog thaum lub module nkag mus rau hauv txoj haujlwm ua haujlwm, thiab kev tso cai nkag mus rau lub teeb liab raug tshem tawm.

♦ Lub sij hawm voj voog: 17sec / vaj huam sib luag (ib leeg bypass soldering) 21 sec / vaj huam sib luag (qhib Ob chav bypass soldering)
♦ Kev Ua Haujlwm: Ntau dua lossis sib npaug li 98%;
♦ Cell Specification: 166mm-230mm;
♦ Vaj huam sib luag specification:
A 156-180 Cell:
6 txoj hlua x 10 ib nrab daim x 2;
6 x 11 x 2;
6 txoj hlua x 12 ib nrab daim x 2;
6 x 13 po x 2 po
B.182 Cell:
6 x 9 x 2 :
C.210 Cell:
6 txoj hlua x 10 ib nrab daim x 2;
6 x 15 x 2 x 3
D.210Cell:
5 txoj hlua x 10 ib nrab daim x 2;
5 txoj hlua x 15 ib qho thib peb x 2
♦ Qhov chaw ntawm tes: -0 5-4mm;
♦ Txoj hlua qhov chaw: 1-6mm; bypass soldering ntawm Txoj hlua qhov chaw Ntau dua lossis sib npaug li 10mm
♦ iav specification: dav (980-1500mm) * ntev(1720-2600mm);
♦ Kev kho qhov tseeb ntawm cov hlua ntawm tes Tsawg dua lossis sib npaug ± 0.25mm;
♦ Khoom siv hluav taws xob: peb-theem 380V 50 / 60Hz:
♦ Lub zog: siab tshaj 35kW; nruab nrab 25kW;
♦ Cua: zoo siab {{0}}.6 ~ 0.8MPa, tsis zoo siab txog - 70kPa;
♦ Cov khoom siv loj: ntev * dav * qhov siab: 6580 * 5604 * 2621 mm (xws li ob kab sib dhos)
