Customized Solar Street Lights Nrog Ib Leeg Ib Leeg Thiab Ob Lub Cev Rau Txoj Kev Siv
Hauj lwm lawm
Kev tsis
Txhim kho koj lub teeb pom kev zoo sab nraum zoov nrog LED Txoj Kev Teeb nrog Lithium Roj Teeb Hnub Ci Street Teeb- ua haujlwm siab - ua haujlwm tau zoo, qis- kev tu vaj tse tsim los rau thaj chaw nyob, kev lag luam, thiab cov chaw pej xeem. Lub hnub ci no -powered LED txoj kev teeb ua ke ua ke ultra- ci LED chips, lub sijhawm ntev - lithium roj teeb, thiab kev tswj lub zog ntse, xa cov nqi hluav taws xob xoom thiab tag nrho- huab cua kev ntseeg siab.
Peb muab cov teeb pom kev zoo tshaj plaws hnub ci muaj nyob rau hauv ib sab caj npab thiab ob sab caj npab versions, tshwj xeeb tshaj yog tsim rau txoj kev hauv nroog, txoj kev loj, thaj chaw nyob, chaw ua si, thaj chaw muaj kev lag luam, thiab cov phiaj xwm pej xeem.
Cov kev sib cais no - hom hnub ci txoj kev teeb muab kev ntseeg siab, off-grid, txuag hluav taws xob teeb pom kev zoo nrog lub neej ntev thiab kev ua haujlwm ruaj khov.
Edobo soalr-- hnub ci txoj kev teeb:
Ultra-Zoo & Zog- LED Teeb pom kev zooNruab nrog hwm 3030 LED chips boasting 190lm / W luminous efficiency, Edobo hnub ci txoj kev teeb muaj adjustable brightness (xws li ntawm 30W mus rau 120W) kom phim ntau yam kev thov. Lub kaum sab xis dav ntawm 180℃ua kom lub teeb sib txawv, tshem tawm qhov tsaus nti. Nrog rau 50,000-teev lifespan (tshaj 5 xyoos ntawm kev siv tas mus li), nws yuav tsum tsis txhob hloov lub teeb ntau zaus, txiav cov nqi tu ntau heev.

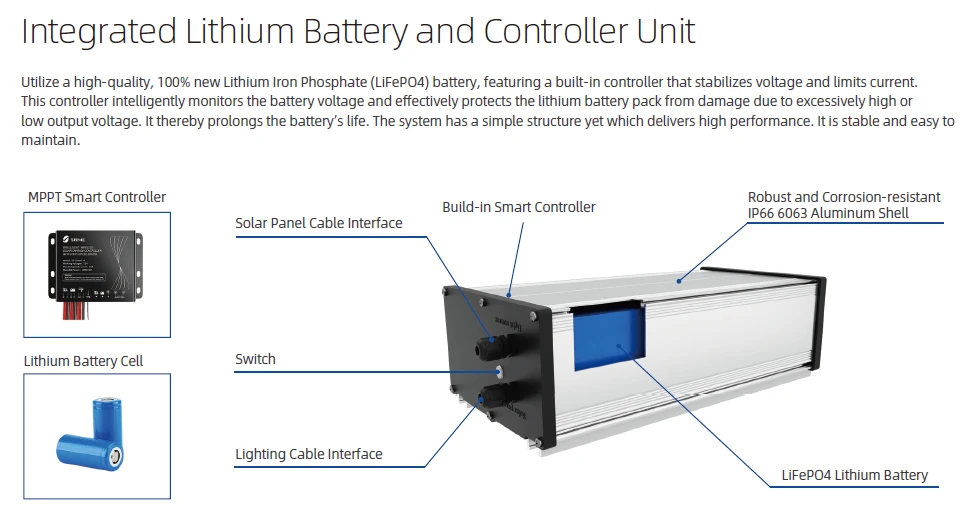

Ntev -Lithium Iron Phosphate (LiFePO4) Roj teeb ntevTsim los ntawm qib-A LiFePO4 lithium roj teeb (12.8V 20Ah–100Ah, kho tau los ntawm tus qauv), qhov teeb pom kev zoo no2500+ nqi - tawm musthiab 6-10 xyoo roj teeb lifespan - 3x ntev dua li cov hlau lead -acid roj teeb. Lub built -inBattery Management System (BMS)muab kev tiv thaiv tag nrho tiv thaiv overcharging, tshaj - tso tawm, luv luv Circuit Court, thiab huab cua kub, ua kom muaj kev nyab xeeb thiab ruaj khov ua haujlwm hauv qhov chaw hnyav.
Siab -Kev Ua Haujlwm Hnub Ci Nrog MPPT TechnologyUa ke nrog lub siab - hloov dua siab tshiab monocrystalline hnub ci vaj huam sib luag (23% efficiency, 25-xyoo lifespan), lub kaw lus siv ibMPPT tus nqi tswjuas boosts zog nqus los ntawm 30% piv rau standard PWM controllers. Nws ua tiav tag nrho cov nqi hauv tsuas yog 4-6 teev ntawm lub hnub ncaj qha thiab tswj kev them nyiaj kom ntseeg tau txawm tias nyob rau hnub huab lossis nag. Lub teeb sensor ua rau nws pib- rau thaum tsaus ntuj thiab pib-tawm thaum kaj ntug, yuav tsum tsis siv neeg txhais tes ua haujlwm.

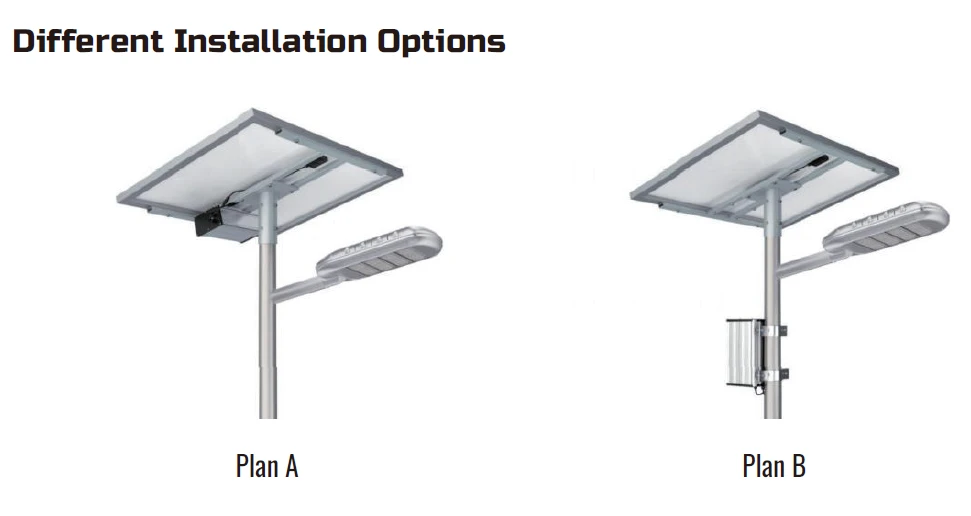

Customizable Design: Txhawb ib sab caj npab thiab ob sab caj npab cov qauv kom tau raws li txoj kev sib txawv thiab cov teeb pom kev zoo.
High-Efficiency Hnub Ci Zog: Nruab nrog kev hloov pauv siab ua haujlwm monocrystalline hnub ci vaj huam sib luag thiab ntev - cov roj teeb lithium rau kev ua haujlwm ruaj khov off-grid.
Super Bright LED Chip: High lumen tso zis, teeb pom kev zoo, tsis muaj teeb pom kev zoo, zoo tagnrho rau kev nyab xeeb thiab pom kev hmo ntuj.

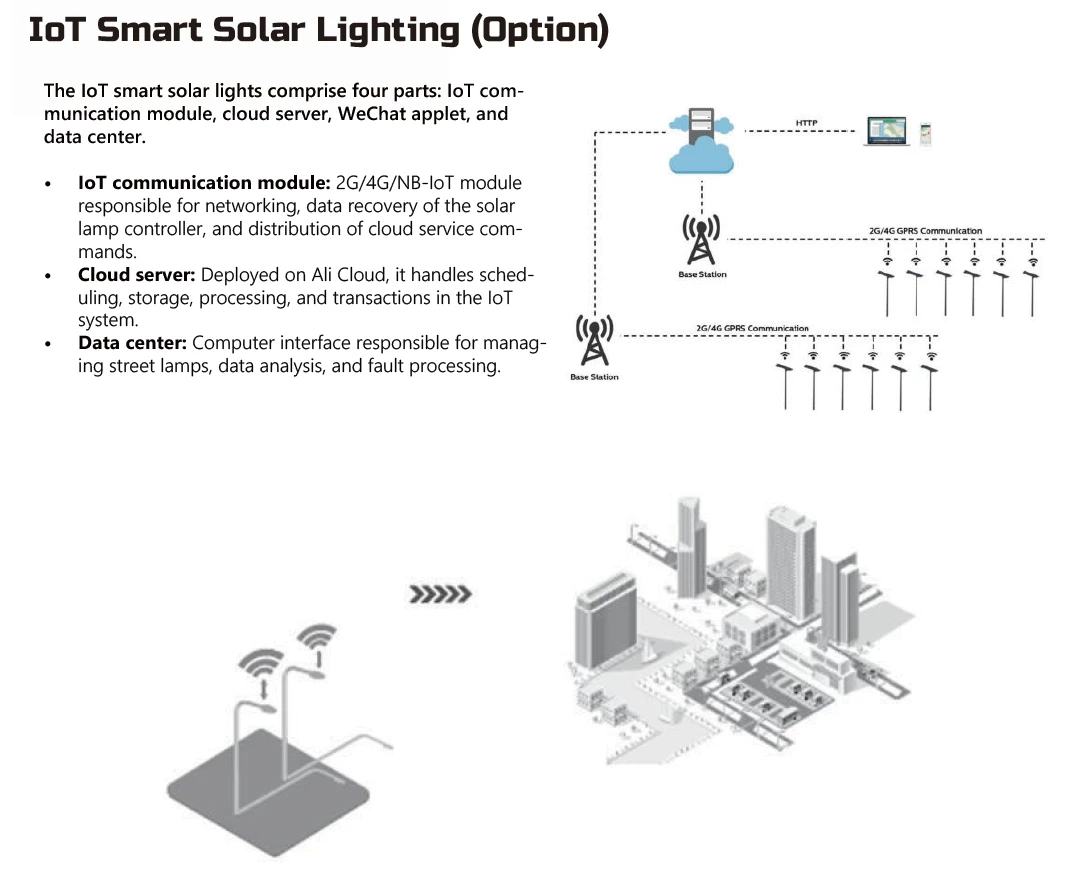

Intelligent Control System: Nws pib thaum tsaus ntuj, pib thaum kaj ntug; Txhawb lub sijhawm dimming, microwave radar sensor, thiab cov chaw taws teeb tswj kev ua haujlwm.
Strong & Durable Structure: Rustproof, waterproof, cua-resistant, haum rau sab nraum zoov hnyav.
| 6M 30W | 8M 60W | 10M 80W | 12M 100W | |
| LED Txoj Kev Teeb | Lub zog: 3 0 w Led Chip: CREE / NICHIA / Lwm yam Lumens: 1 9 0 Lm/ w Voltage: DC 1 2 V Xim kub: 2 7 00 - 65 00 K Color Rendering index: Ra> 7 5 IP ntsuam xyuas: IP6 6 |
Lub zog: 6 0 w Led Chip: CREE / NICHIA / Lwm yam Lumens: 1 9 0 Lm/ w Voltage: DC 2 4 V Xim kub: 2 7 0 0 - 6 5 0 0 K Color Rendering index: Ra> 7 5 IP ntsuam xyuas: IP6 6 |
Lub zog: 8 0 w Led Chip: CREE / NICHIA / Lwm yam Lumens: 1 9 0 Lm/ w Voltage: DC 2 4 V Xim kub: 2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP ntsuam xyuas: IP6 6 |
Lub zog: 1 0 0 w Led Chip: CREE / NICHIA / Lwm yam Lumens: 1 9 0 Lm/ w Voltage: DC 2 4 V Xim kub: 2 70 0 - 650 0 K Color Rendering index: Ra> 7 5 IP ntsuam xyuas: IP6 6 |
| hnub ci vaj huam sib luag | Lub zog: 1 2 0 W Kev khiav hauj lwm voltage: 1 8 V Kev ua haujlwm tam sim no:6 . 67 A Qhib Circuit Court voltage: 2 2 V Luv luv tam sim no: 6 . 7 5 A Khoom siv: Mono Crystalline Silicon Eficiency ntawm solar cells: 1 8 % |
Hwj chim: 1 2 0 W * 2 PCS Kev khiav hauj lwm voltage: 1 8 V Kev ua haujlwm tam sim no: 6 . 67 A Qhib Circuit Court voltage: 2 2 V Luv luv tam sim no: 6 . 7 5 A Khoom siv: Mono Crystalline Silicon Eficiency ntawm solar cells: 1 8 % |
Hwj chim: 1 5 0 W * 2 PCS Kev khiav hauj lwm voltage: 1 8 V Kev ua haujlwm tam sim no: 8 . 4 A Qhib Circuit Court voltage: 2 2 V Luv luv tam sim no: 8 . 8 A Khoom siv: Mono Crystalline Silicon Eficiency ntawm solar cells: 1 8 % |
Hwj chim: 2 0 0 W * 2 PCS Kev khiav hauj lwm voltage: 1 8 V Kev ua haujlwm tam sim no: 1 1 . 1 2 A Qhib Circuit Court voltage: 2 2 V Luv luv tam sim no: 1 1 . 4 6 A Khoom siv: Mono Crystalline Silicon Eficiency ntawm solar cells: 1 8 % |
| Kev xaiv 1: Gel roj teeb | Rated Peev Xwm: 1 0 0 AH Rated Voltage: 1 2 V Lub voj voog sib sib zog nqus Kev Kho Mob Dawb |
Rated Peev Xwm: 1 0 0 AH* 2 PCS Rated Voltage: 1 2 V Lub voj voog sib sib zog nqus Kev Kho Mob Dawb |
Rated Peev Xwm: 1 2 0 AH* 2 PCS Rated Voltage: 1 2 V Lub voj voog sib sib zog nqus Kev Kho Mob Dawb |
Rated Peev Xwm: 1 5 0 AH* 2 PCS Rated Voltage: 1 2 V Lub voj voog sib sib zog nqus Kev Kho Mob Dawb |
| Kev xaiv 2: Lithium roj teeb | Rated Peev Xwm: 7 2 AH Rated Voltage: 12 . 8V Lub voj voog sib sib zog nqus: 2 5 0 0 zaug Kev Kho Mob Dawb Hom: LiFePO4 18 65 0 / 32 65 0 |
Rated Peev Xwm: 7 2 AH Rated Voltage: 25 . 6V Lub voj voog sib sib zog nqus: 2 5 0 0 zaug Kev Kho Mob Dawb Hom: LiFePO4 18 65 0 / 32 65 0 |
Rated Peev Xwm: 8 4 AH Rated Voltage: 25 . 6V Lub voj voog sib sib zog nqus: 2 5 0 0 zaug Kev Kho Mob Dawb Hom: LiFePO4 18 65 0 / 32 65 0 |
Rated Peev Xwm: 1 0 2 AH Rated Voltage: 25 . 6V Lub voj voog sib sib zog nqus: 2 5 0 0 zaug Kev Kho Mob Dawb Hom: LiFePO4 18 65 0 / 32 65 0 |
| Solar Controller | Rated Voltage: 1 2 V / 2 4 V Rated Tam sim no: 1 0 A Tsis Siv Neeg Lub Teeb thiab Lub Sijhawm Tswjhwm dhau - Them / Tshem Tawm Tiv Thaiv Rov Qab - kev sib txuas |
Rated Voltage: 1 2 V / 2 4 V Rated Tam sim no: 1 5 A Tsis Siv Neeg Lub Teeb thiab Lub Sijhawm Tswjhwm dhau - Them / Tshem Tawm Tiv Thaiv Rov Qab - kev sib txuas |
Rated Voltage: 1 2 V / 2 4 V Rated Tam sim no: 2 0 A Tsis Siv Neeg Lub Teeb thiab Lub Sijhawm Tswjhwm dhau - Them / Tshem Tawm Tiv Thaiv Rov Qab - kev sib txuas |
Rated Voltage: 1 2 V / 2 4 V Rated Tam sim no: 2 0 A Tsis Siv Neeg Lub Teeb thiab Lub Sijhawm Tswjhwm dhau - Them / Tshem Tawm Kev Tiv Thaiv Rov Qab Txuas |
| Txoj Kev Teeb ncej | Luas: 6 m Sab saum toj / Hauv qab Dia: 7 0 / 1 4 0 mm ; Thickness: 3 . 0 hli Loj: 240 * 240 * 12mm Kub dip galvanized ncej nrog hmoov txheej |
Luas: 8 m Sab saum toj / Hauv qab Dia: 8 0 / 1 6 0 mm ; Thickness: 3 . 5 hli Loj: 300 * 300 * 14mm Kub dip galvanized ncej nrog hmoov txheej |
Qhov siab: 1 0 m Sab saum toj / Hauv qab Dia: 9 0 / 1 9 0 mm ; Thickness: 4 . 0 hli Loj: 350 * 350 * 18mm Kub dip galvanized ncej nrog hmoov txheej |
Qhov siab: 1 2 m Sab saum toj / Hauv qab Dia: 1 0 0 / 2 1 0 mm ; Thickness: 4 . 5 hli Flange: 40 0* 40 0 * 2 0 hli Kub dip galvanized ncej nrog hmoov txheej |
| Anchor Bolt | J bolt: M1 6 J bolt: 4 pcs Ntev ntawm J bolt: 5 0 0 mm ( Kub galvanized J bolt muaj) |
J bolt: M1 8 J bolt: 4 pcs Ntev ntawm J bolt: 7 0 0 mm ( Kub galvanized J bolt muaj) |
J bolt: M1 8 J bolt: 4 pcs Ntev ntawm J bolt: 9 0 0 mm ( Kub galvanized J bolt muaj) |
J bolt: M2 0 J bolt: 4 pcs Ntev ntawm J bolt: 1 1 0 0 mm ( Kub galvanized J bolt muaj) |
| RVV 2 * 2.5mm² | RVV 2 * 2.5mm² | RVV 2 * 2.5mm² | RVV 2 * 2.5mm² |
Kev siv scenario zoo tshaj plaws hnub ci teeb uas nyob rau txhua hmo
Kev siv tsim nyog
Txoj kev hauv nroog, nroog txoj kev, txoj kev nyob deb nroog
Txoj kev loj, txoj kev loj, ob txoj kev
Cov tsev nyob, tsev kawm ntawv cov tsev kawm ntawv, cov chaw ua si
Public squares, vaj, chaw nres tsheb
Municipal engineering & tsoom fwv tej yaam num
Vim li cas thiaj xaiv Edobo Solar's Split Type Street Lights?
Kev ua tau zoo tshaj plaws: Kev sib cais tsim cais cov roj teeb hnyav thiab vaj huam sib luag los ntawm lub taub hau teeb, tso cai rau kev pom zoo thiab kev ua haujlwm ntawm txhua yam khoom.
Ntxiv Flexibility: Tso cai rau qhov chaw ywj pheej ntawm lub hnub ci vaj huam sib luag kom pom lub hnub ci kom pom tseeb, tsis hais lub teeb tom qab qhov chaw.
Txhim kho Durability: Cov khoom siv yog tsim los tiv thaiv huab cua huab cua, ua kom ntev ntev - kev ntseeg tau thiab kev saib xyuas tsawg.
Environmentally Friendly: Siv lub hwj chim ntawm lub hnub kom txo tau koj cov pa roj carbon hneev taw thiab pab txhawb rau yav tom ntej.
Tus nqi- Ua tau zoo: Tshem tawm cov nqi hluav taws xob thiab txo cov nqi kho mob nrog peb cov kev ntseeg siab thiab ntev ntev - solar solar.
Customizable: Cov kev xaiv xaiv lub roj teeb zoo rau ib puag ncig thiab qhov loj ntawm lub vaj huam sib luag thiab lub taub hau teeb.
Warranty & Tom qab -Kev Pabcuam Muag
Tag nrho Lub Teeb Warranty: 2 xyoos (nrog rau kev tsim khoom thiab teeb meem kev ua haujlwm).
Lithium roj teeb Warranty: 5 xyoos (hloov dawb yog tias muaj peev xwm poob qis dua 80% hauv 5 xyoos).
Hnub Ci Vaj Huam Sib Luag Warranty: 25 xyoo (ua pov thawj 80% kev hloov dua siab tshiab tom qab 25 xyoo ntawm kev siv).
24/7 Technical Support: Peb pab neeg thoob ntiaj teb muab kev taw qhia kev teeb tsa chaw taws teeb thiab teeb meem ntawm email, xov tooj, lossis kev sib tham nyob, nrog lub sijhawm teb tsawg dua 12 teev. Cov neeg yuav khoom ntau tsim nyog rau ntawm - qhov kev pab cuam installation.
