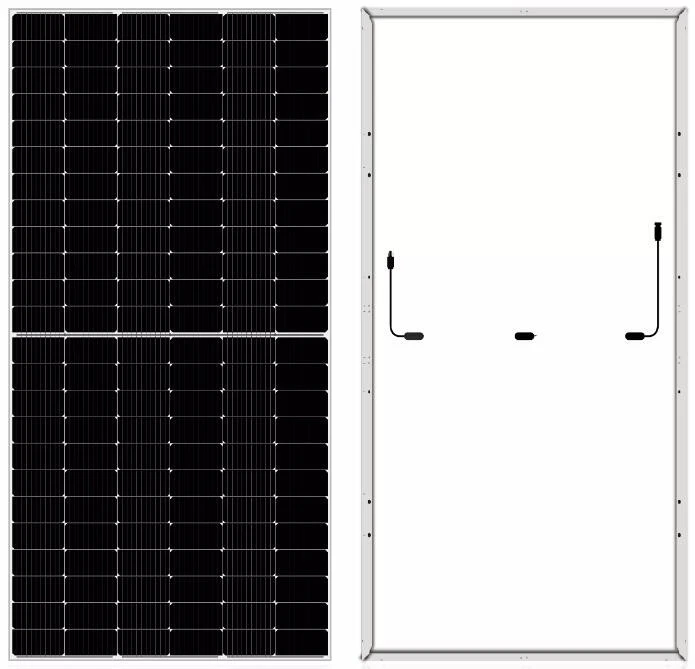

500w Monocrystalline Silicon Hnub Ci Vaj Huam Sib Luag
Hauj lwm lawm
Kev tsis
Khoom Description
500w Monocrystalline Silicon Hnub Ci Vaj Huam Sib Luag: Lub Neej Yav Tom Ntej ntawm Hnub Ci Zog
Hnub ci zog yog nce los ua ib qho chaw nrov ntawm lub zog tauj dua tshiab thoob ntiaj teb. Hnub ci vaj huam sib luag yog tsim los ntes thiab hloov lub hnub ci zog rau hauv hluav taws xob. Thaum muaj ntau hom hnub ci vaj huam sib luag muaj nyob rau hauv kev ua lag luam, Monocrystalline Silicon Hnub Ci Vaj Huam Sib Luag tau tshwm sim los ua cov thev naus laus zis hauv kev tsim hluav taws xob hnub ci.
500w Monocrystalline Silicon Hnub Ci Vaj Huam Sib Luag yog tsim los tsim hluav taws xob ntau dua piv rau lwm hom hnub ci vaj huam sib luag. Cov panels no yog tsim los ntawm cov khoom zoo silicon wafers uas yog hlais los ntawm ib qho siv lead ua ntawm silicon. Qhov no ua rau muaj kev ua haujlwm siab dua hauv kev tsim hluav taws xob.
Ib qho tseem ceeb ntawm 500w Monocrystalline Silicon Solar Panels yog lawv lub peev xwm los tsim hluav taws xob ntau dua ib square meter piv rau lwm hom hnub ci vaj huam sib luag. Qhov no txhais tau hais tias tsawg dua cov vaj huam sib luag yuav tsum tsim kom muaj hluav taws xob tib yam, ua rau lawv muaj txiaj ntsig zoo thiab muaj txiaj ntsig zoo rau cov chaw tsim hluav taws xob hnub ci loj.
Lwm qhov zoo dua ntawm 500w Monocrystalline Silicon Hnub Ci Vaj Huam Sib Luag yog lawv qhov ua tau zoo thiab ua haujlwm ntev. Cov vaj huam sib luag no tuaj yeem kav ntev txog 25 xyoo, ua rau lawv muaj peev xwm mus ntev ntev rau kev tsim hluav taws xob hnub ci.
Kev ua tau zoo ntawm 500w Monocrystalline Silicon Hnub Ci Vaj Huam Sib Luag tuaj yeem txhim kho ntxiv los ntawm kev txhim kho lawv hauv qhov chaw zoo. Qhov no suav nrog kev txhim kho lawv ntawm lub ru tsev lossis mounting rau hauv av ntawm lub kaum sab xis kom ua kom lub hnub raug pom.
500w hnub ci photovoltaic panels
Ib qho ntawm cov yam ntxwv tseem ceeb ntawm cov vaj huam sib luag no yog lawv cov khoom siv hluav taws xob siab. Nrog lub peev xwm ntawm 500 watts, lawv muaj peev xwm tsim kom muaj zog txaus rau lub zog loj hauv tsev, chaw ua haujlwm, lossis chaw ua haujlwm. Qhov no ua rau lawv muaj kev xaiv zoo heev rau cov neeg uas xav tau kev ywj pheej ntawm lub zog siab thiab xav txo lawv txoj kev cia siab ntawm daim phiaj.
Ntxiv nrog rau lawv cov kev tso tawm hluav taws xob zoo kawg nkaus, cov vaj huam sib luag no kuj muaj kev ruaj khov thiab txhim khu kev qha. Lawv tau tsim los tiv thaiv huab cua hnyav, suav nrog cua siab thiab cov daus hnyav, thiab tuaj nrog 25- xyoo lav rau kev thaj yeeb nyab xeeb ntxiv.
Kev teeb tsa yog ncaj nraim thiab tuaj yeem ua tiav los ntawm tus kws tshaj lij installer lossis tus nyiam DIY. Cov vaj huam sib luag tuaj nruab nrog tus qauv MC4 connectors, ua kom yooj yim rau kev txuas mus rau lwm lub hnub ci vaj huam sib luag thiab inverters.
Zuag qhia tag nrho, 500w monocrystalline silicon hnub ci vaj huam sib luag yog qhov kev xaiv zoo tshaj plaws rau txhua tus neeg tab tom nrhiav kom siv lub zog ntawm lub hnub rau lawv lub zog xav tau. Nrog lawv cov khoom siv hluav taws xob siab, ua haujlwm ntev, thiab kev ntseeg siab, lawv sawv cev rau kev nqis peev zoo rau yav tom ntej ntawm lub zog tauj dua tshiab.
Yantai Edobo Tech.Co., Ltd yog cov chaw tsim khoom thiab chaw tsim khoom ntawm cov khoom siv hnub ci zog hauv Suav teb. Peb cov khoom kab muaj xws li hnub ci vaj huam sib luag, roj teeb, inverters thiab lwm yam khoom muaj feem xyuam. Peb txaus siab rau peb tus kheej ntawm peb cov thev naus laus zis tshiab, cov khoom lag luam zoo, thiab kev pabcuam tshwj xeeb rau cov neeg siv khoom.
Ntawm Yantai Edobo, peb lub hom phiaj yog los muab cov kev daws teeb meem ruaj khov uas txhawb nqa ib puag ncig huv. Peb cov khoom siv hnub ci yog tsim los ua kom tau raws li cov kev xav tau ntawm thaj chaw, kev lag luam, thiab cov neeg siv khoom lag luam zoo ib yam, thiab peb cov kws tshaj lij yeej ib txwm muaj los pab koj xaiv cov kev daws teeb meem zoo tshaj plaws rau koj cov kev xav tau.
Peb ntseeg tias lub hnub ci zog yog txoj hauv kev rau lub neej yav tom ntej, thiab peb tau cog lus los muab cov khoom siv hluav taws xob pheej yig, txhim khu kev qha, thiab ua haujlwm siab rau peb cov neeg siv khoom. Peb cov khoom raug kuaj thiab ntawv pov thawj los xyuas kom meej tias lawv muaj kev nyab xeeb, txhim khu kev qha, thiab ua tau raws li txhua qhov kev lag luam thiab cov qauv kev cai.
kev paub
kev tshuaj xyuas zoo
xaj tau txais
tej yaam num ua tiav
feature ntawm cov khoom
Kev ua tau zoo
Vim yog siv cov ntaub ntawv zoo thiab cov cuab yeej tsim khoom siab tshaj plaws, peb lub hnub ci vaj huam sib luag lub zog hloov pauv tau lees paub tias yog siab dua cov qauv kev lag luam.
durability
Peb lub hnub ci vaj huam sib luag muaj lub neej ua haujlwm ntev, tus nqi tu qis, thiab cov qauv tsim nyog uas tso cai rau lawv tiv taus huab cua huab cua xws li lawg, cua daj cua dub, thiab daus.
Multifunctionality
Peb lub hnub ci vaj huam sib luag tuaj yeem ntsia tau thiab siv rau ntau qhov chaw, suav nrog tab sis tsis txwv rau lub ru tsev, phab ntsa, pem teb, thiab txawm tias lub tsheb. Nws hloov tau yooj yim heev rau kev thov.
Cov ntaub ntawv khoom
|
Lub zog siab tshaj plaws (Wp) |
500W |
|
Qhov siab tshaj plaws voltage (V) |
41.76V |
|
Maximum tam sim no (A) |
11.98A |
|
Qhib Circuit Court voltage (V) |
50.11V |
|
Short circuit tam sim no (A) |
12.63A |
|
Number of cells (Pcs) |
144 |
|
Module loj (mm) |
2279 * 1134 * 35 hli |
|
Qhov siab tshaj qhov system voltage (V) |
1000DC (IEC) / 600DC (UL) |
|
Kub coefficient ntawm Isc (%) |
+0.048% / degree |
|
Kub coefficient ntawm Voc (%) |
-0.27% / degree |
|
Kub coefficient ntawm Pm (%) |
-0.35% / degree |
|
Kub coefficient ntawm Im (%) |
/ |
|
Kub coefficient ntawm Vm (%) |
/ |
|
Qhov kub thiab txias |
-40 ~ +85 degree |
|
Tolerance Wattage (piv txwv li +/-5%) |
±3% |
|
Surface Maximum Load Capacity |
Pem Hauv Ntej Max. 5400Pa, Tsheb Sab Max. 2400 Nws |
|
Tso cai Hail Load |
25 hli |
|
Nyhav ib thooj (kg) |
26.5kg 3 |
|
Junction Box Hom |
MC4 Compatible |
|
Cable ntev (mm) |
3 5cm |
|
Tso zis kam rau ua (%) |
±3% |
|
Ncej (khoom siv, kaum, thiab lwm yam) |
Aluminium |
|
Standard Test Conditions |
Irradiance 1000W / m², Cell Kub 25 degree, AM 1.5 |
|
Warranty |
10 xyoo |
|
FF (%) |
79% |
|
Ntim |
31pcs / thawv |
Lub sij hawm them nyiaj:

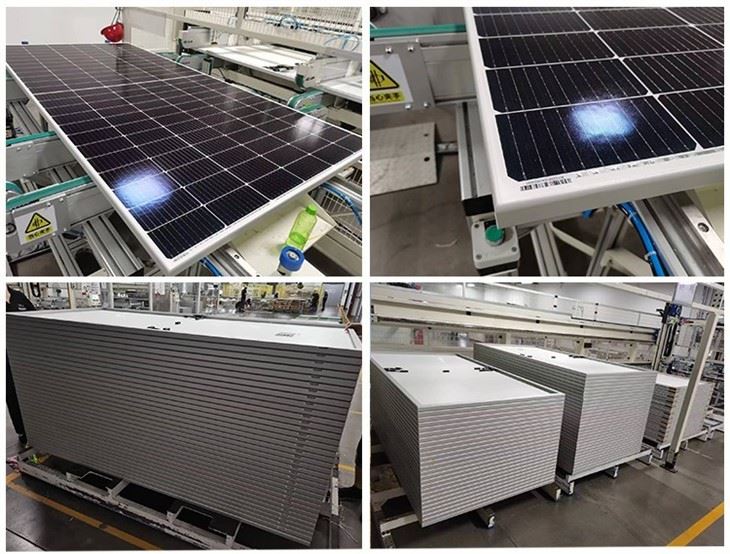

Project thiab packing ntawm cov khoom:
Cim npe nrov: 500w monocrystalline silicon solar panels, Tuam Tshoj 500w monocrystalline silicon solar panels lwm tus neeg, Hoobkas
Xa kev nug
