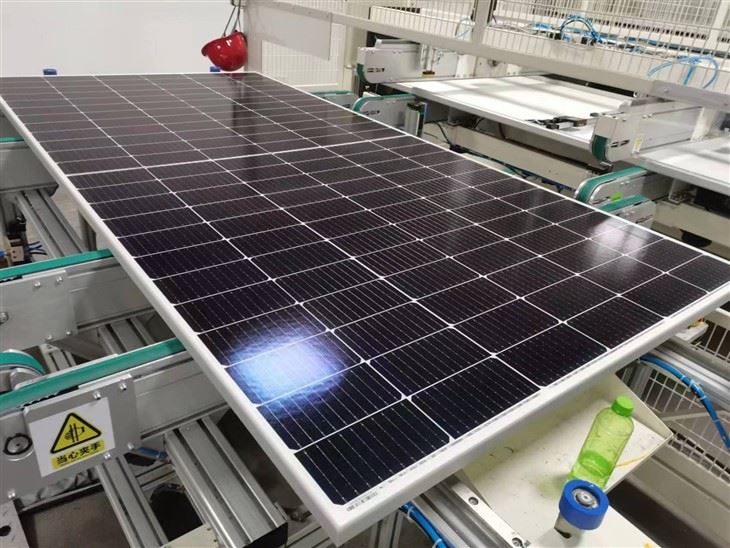

500w Sab saum toj Rated Solar Panels
Hauj lwm lawm
Kev tsis
Khoom Description
Dab tsi yog 500w sab saum toj ntsuas hnub ci vaj huam sib luag?
Lub wattage ntawm lub hnub ci vaj huam sib luag txiav txim siab npaum li cas hluav taws xob nws tuaj yeem tsim tau. 500w sab saum toj hnub ci vaj huam sib luag yog cov vaj huam sib luag ua haujlwm siab uas tuaj yeem tsim hluav taws xob 500 watts ib teev. Cov vaj huam sib luag no feem ntau yog qhov loj dua li cov hnub ci vaj huam sib luag thiab muaj kev ntsuas kev ua tau zoo dua, ua tsaug rau cov cuab yeej siv siab thiab cov khoom siv hauv lawv cov kev tsim kho.
Lawv ua haujlwm li cas?
Solar panels siv lub zog los ntawm lub hnub los tsim hluav taws xob. Lawv siv lub hnub ci hlwb, uas muaj ob txheej ntawm silicon nrog ib tug hlau conductor nyob nruab nrab. Thaum tshav ntuj hits lub hnub ci hlwb, nws tsim ib qho hluav taws xob teb nyob rau hauv silicon. Qhov hluav taws xob no ua rau cov hluav taws xob txav mus los, tsim hluav taws xob tam sim no.
500w sab saum toj hnub ci vaj huam sib luag siv lub hnub ci ua haujlwm siab uas tuaj yeem ntes tau ntau lub hnub ci thiab tsim hluav taws xob ntau dua ib teev. Lawv kuj muaj qhov kub thiab txias coefficient, uas txhais tau hais tias lawv tuaj yeem tsim hluav taws xob txawm nyob hauv huab cua huab cua.
Cov txiaj ntsig yog dab tsi?
Lub 500w sab saum toj hnub ci vaj huam sib luag muaj ntau yam txiaj ntsig tshaj li niaj hnub solar panels. Ua ntej, lawv ua haujlwm tau zoo dua, txhais tau tias lawv tuaj yeem tsim hluav taws xob ntau dua siv qhov chaw tsawg dua. Qhov no tuaj yeem muaj txiaj ntsig tshwj xeeb yog tias koj muaj qhov txwv lub ru tsev, tab sis tseem xav tsim kom muaj hluav taws xob loj.
Qhov thib ob, lawv muaj kev ruaj khov thiab siv tau ntev dua li niaj hnub solar panels. Lawv yog tsim los ntawm cov ntaub ntawv zoo uas tuaj yeem tiv taus huab cua huab cua, nrog rau lawg, daus, thiab cua daj cua dub.
Thaum kawg, lawv tuaj yeem txuag koj cov nyiaj ntawm koj cov nqi hluav taws xob. Los ntawm kev tsim koj cov hluav taws xob, koj tuaj yeem txo koj qhov kev cia siab ntawm daim phiaj thiab zam kom tsis txhob nce nqi hluav taws xob. Tsis tas li ntawd, koj tuaj yeem tsim nyog rau tsoomfwv cov nyiaj them rov qab thiab cov nyiaj pab rau kev txhim kho cov hnub ci vaj huam sib luag.
500w hnub ci photovoltaic panels
Yog tias koj tab tom nrhiav rau saum toj kawg nkaus hnub ci vaj huam sib luag, saib tsis muaj ntxiv. Peb 500W hnub ci vaj huam sib luag yog qee qhov ua tau zoo tshaj plaws nyob rau hauv kev ua lag luam niaj hnub no, tsim cov khoom siv hluav taws xob ntau tshaj plaws nrog rau qhov chaw tsawg kawg nkaus. Thiab nrog peb cov ntaub ntawv pov thawj ntawm kev muab qhov tshwj xeeb zoo thiab cov kev pabcuam rau cov neeg siv khoom, koj tuaj yeem ntseeg tau tias koj tab tom ua lub peev nyiaj zoo hauv lub zog tauj dua tshiab.
Peb cov kev ua tau zoo 500W hnub ci vaj huam sib luag yog tsim los tiv thaiv txawm tias huab cua hnyav tshaj plaws, ua kom muaj zog tshaj tawm txhua xyoo. Lawv kuj yog ib qho yooj yim rau nruab thiab tswj, uas txhais tau tias koj yuav txaus siab rau hassle-free zog txuag rau xyoo tom ntej.
Peb txaus siab heev rau peb txoj kev cog lus rau kev ruaj khov thiab kev saib xyuas ib puag ncig, thiab peb lub hnub ci vaj huam sib luag yog qhov piv txwv ci ntsa iab ntawm qhov no. Ua nrog cov ntaub ntawv hwm thiab cov thev naus laus zis thev naus laus zis, peb lub hnub ci vaj huam sib luag tsis yog tsuas yog siv tau thiab txhim khu kev qha, tab sis kuj yog eco-friendly. Los ntawm kev xaiv peb 500W hnub ci vaj huam sib luag, koj tsis tsuas yog txiav txim siab txog nyiaj txiag ntse, tab sis kuj pab txo koj cov pa roj carbon monoxide thiab tiv thaiv peb lub ntiaj teb rau tiam tom ntej.
Thaum kawg ntawm hnub, peb lub hom phiaj yog qhov yooj yim: muab cov khoom siv hnub ci zoo tshaj plaws uas xa cov nqi tshwj xeeb thiab kev txuag rau peb cov neeg siv khoom. Nrog peb 500W hnub ci vaj huam sib luag, koj tuaj yeem txaus siab rau kev thaj yeeb nyab xeeb ntawm lub siab uas los ntawm kev paub tias koj tau ua rau kev xav txog kev nqis peev hauv lub zog tauj dua tshiab. Yog li vim li cas tos? Tiv tauj peb hnub no kom paub ntau ntxiv txog peb cov hnub ci vaj huam sib luag saum toj kawg nkaus thiab peb tuaj yeem pab koj hloov pauv mus rau lub zog huv, ruaj khov.
Yantai Edobo Tech.Co., Ltd yog cov chaw tsim khoom thiab chaw tsim khoom ntawm cov khoom siv hnub ci zog hauv Suav teb. Peb cov khoom kab muaj xws li hnub ci vaj huam sib luag, roj teeb, inverters thiab lwm yam khoom muaj feem xyuam. Peb txaus siab rau peb tus kheej ntawm peb cov thev naus laus zis tshiab, cov khoom lag luam zoo, thiab kev pabcuam tshwj xeeb rau cov neeg siv khoom.
Ntawm Yantai Edobo, peb lub hom phiaj yog los muab cov kev daws teeb meem ruaj khov uas txhawb nqa ib puag ncig huv. Peb cov khoom siv hnub ci yog tsim los ua kom tau raws li cov kev xav tau ntawm thaj chaw, kev lag luam, thiab cov neeg siv khoom lag luam zoo ib yam, thiab peb cov kws tshaj lij yeej ib txwm muaj los pab koj xaiv cov kev daws teeb meem zoo tshaj plaws rau koj cov kev xav tau.
Peb ntseeg tias lub hnub ci zog yog txoj hauv kev rau lub neej yav tom ntej, thiab peb tau cog lus los muab cov khoom siv hluav taws xob pheej yig, txhim khu kev qha, thiab ua haujlwm siab rau peb cov neeg siv khoom. Peb cov khoom raug kuaj thiab ntawv pov thawj los xyuas kom meej tias lawv muaj kev nyab xeeb, txhim khu kev qha, thiab ua tau raws li txhua qhov kev lag luam thiab cov qauv kev cai.
kev paub
kev tshuaj xyuas zoo
xaj tau txais
tej yaam num ua tiav
feature ntawm cov khoom
Kev ua tau zoo
Vim yog siv cov ntaub ntawv zoo thiab cov cuab yeej tsim khoom siab tshaj plaws, peb lub hnub ci vaj huam sib luag lub zog hloov pauv tau lees paub tias yog siab dua cov qauv kev lag luam.
durability
Peb lub hnub ci vaj huam sib luag muaj lub neej ua haujlwm ntev, tus nqi tu qis, thiab cov qauv tsim nyog uas tso cai rau lawv tiv taus huab cua huab cua xws li lawg, cua daj cua dub, thiab daus.
Multifunctionality
Peb lub hnub ci vaj huam sib luag tuaj yeem ntsia tau thiab siv rau ntau qhov chaw, suav nrog tab sis tsis txwv rau lub ru tsev, phab ntsa, pem teb, thiab txawm tias lub tsheb. Nws hloov tau yooj yim heev rau kev thov.
Cov ntaub ntawv khoom
|
Lub zog siab tshaj plaws (Wp) |
500W |
|
Qhov siab tshaj plaws voltage (V) |
41.76V |
|
Maximum tam sim no (A) |
11.98A |
|
Qhib Circuit Court voltage (V) |
50.11V |
|
Short circuit tam sim no (A) |
12.63A |
|
Number of cells (Pcs) |
144 |
|
Module loj (mm) |
2279 * 1134 * 35 hli |
|
Qhov siab tshaj qhov system voltage (V) |
1000DC (IEC) / 600DC (UL) |
|
Kub coefficient ntawm Isc (%) |
+0.048% / degree |
|
Kub coefficient ntawm Voc (%) |
-0.27% / degree |
|
Kub coefficient ntawm Pm (%) |
-0.35% / degree |
|
Kub coefficient ntawm Im (%) |
/ |
|
Kub coefficient ntawm Vm (%) |
/ |
|
Qhov kub thiab txias |
-40 ~ +85 degree |
|
Tolerance Wattage (piv txwv li +/-5%) |
±3% |
|
Surface Maximum Load Capacity |
Pem Hauv Ntej Max. 5400Pa, Tsheb Sab Max. 2400 Nws |
|
Tso cai Hail Load |
25 hli |
|
Nyhav ib thooj (kg) |
26.5kg 3 |
|
Junction Box Hom |
MC4 Compatible |
|
Cable ntev (mm) |
3 5cm |
|
Tso zis kam rau ua (%) |
±3% |
|
Ncej (khoom siv, kaum, thiab lwm yam) |
Aluminium |
|
Standard Test Conditions |
Irradiance 1000W / m², Cell Kub 25 degree, AM 1.5 |
|
Warranty |
10 xyoo |
|
FF (%) |
79% |
|
Ntim |
31pcs / thawv |
Lub sij hawm them nyiaj:
Project thiab packing ntawm cov khoom:
Cim npe nrov: 500w sab saum toj hnub ci vaj huam sib luag, Tuam Tshoj 500w sab saum toj hnub ci vaj huam sib luag lwm tus neeg, Hoobkas
