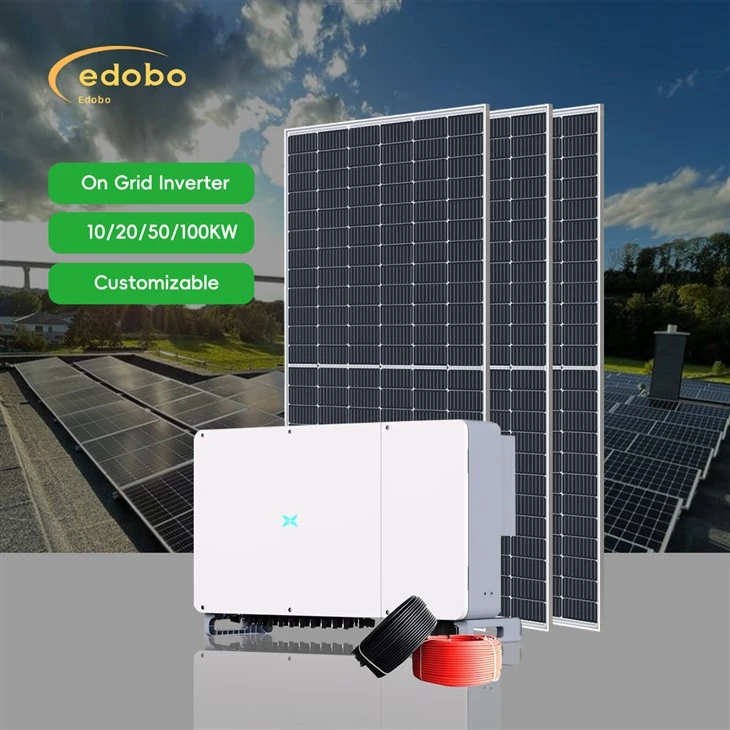

50KW ntawm Daim Phiaj Ci Hnub Ci Zog Cheebtsam

Ib qho 50kW ntawm-daim phiaj hnub ci zog yog qhov kev xaiv zoo rau cov khoom lag luam zoo nkauj rau kev lag luam, kev lag luam me, tsev kawm ntawv, lossis teeb tsa cov chaw nyob loj. Tsim los rau kev siv lub zog muaj zog thiab seamless kev sib koom ua ke nrog cov kab sib xyaw nrog cov nqi hluav taws xob thiab tseem muag cov hwj huam hluav taws xob ntau dua mus rau daim phiaj. Hauv qab no yog kev tawg ntawm cov Cheebtsam tseem ceeb hauv 50KW ntawm daim phiaj hnub ci fais fab system muaj los ntawm Edobo hnub ci.

Xa kev nug

Hauj lwm lawm

Kev tsis

Qhia Peb Lub Hnub Ci Zog

product-750-400

Nta:

1. Hnub ci Panels:

Kom muaj nuj nqis: kwv yees li 100-112 panels, nyob ntawm lub vaj huam sib luag wattage (550W-600W txhua).

Hom: High-efficiency monocrystalline lossis polycrystalline panels.

Lub Hom Phiaj: Ua raws li hnub ci thiab hloov nws mus rau hauv ncaj qha tam sim no (DC) hluav taws xob.

Nta:

Kev siv hluav taws xob siab hloov pauv tau.

Cov huab cua ruaj khov thiab tiv thaiv (IP67 / IP68 nyob).

2. Daim phiaj-khi inverter:

Lub peev xwm: 50kW lossis ntau cov inverters me (piv txwv li 2 x 25kW).

Lub Hom Phiaj: Hloov DC hluav taws xob hluav taws xob los ntawm lub hnub ci ci rau lwm txoj hauv kev hloov kho tam sim no (AC) hluav taws xob rau kev siv thiab sib xyaw.

Nta:

Qhov siab tshaj plaws fais fab tuag (MPT) rau kev siv hluav taws xob hloov kho.

Ua-nyob rau hauv kev nyab xeeb thiab saib xyuas cov tshuab.

Qhov Zoo:

3. Mounting Txheej Txheem:

Hom: tsau tilt lossis kho tau cov tshuab hloov kho (robopop lossis av-mounted).

Cov khoom siv: Aluminium lossis Galvanized steel rau corrosion tsis kam thiab kav ntev.

Lub Hom Phiaj: Muaj kev ruaj ntseg tuav lub hnub ci ci ntsa iab ntawm lub hom phiaj zoo tshaj plaws rau qhov siab tshaj plaws tshav ntuj.

4. DC Combiner Box:

Lub Hom Phiaj: Ua ke DC tsim tawm los ntawm ntau pawg solar vaj huam sib luag cov hlua thiab txau nws rau inverter.

Nta:

Kev Tiv Thaiv Surge Kev Tiv Thaiv (SPD).

Overcurrent kev tiv thaiv nrog fuses lossis Circuit Court cov neeg txhaum.

Kev Siv Cov Xwm Txheej

Yam	Lub Npe	Daim duab	Cov ntaub ntawv txheej txheem	Qho ntau
1	Mono lub vaj huam sib luag solar (Yingli Hnub Ci)		Rated Power: 450Watt, 144Cell, 9BB. Volfage ntawm PMAX: 41.35V Tam sim no ntawm PMAX: 10.89a Qhib-Circuit Coadage: 49.9V Luv-Circuit Court Tam Sim No: 11.47A Qhov loj me: 2094 * 1038 * 35 hli Qhov hnyav: 23.5Kg	112pieces
2	Daim phiaj-khi inverter (solis)		Rated OUTOUCT HWJ CHIM: 50KW Rated Grid Voltage: 220 / 380V lossis 230V / 400v peb ntu 50HZ / 60HZ	1piece
3	WiFi lo		Kev soj ntsuam System	1piece
4	PV Cable		PV {1- f 4 4 mm2 liab hlau yog 350m Dub Hlau yog 350m	400m
5	MC Txuas		Ntsuas Voltage: 1000V	18 pawg
