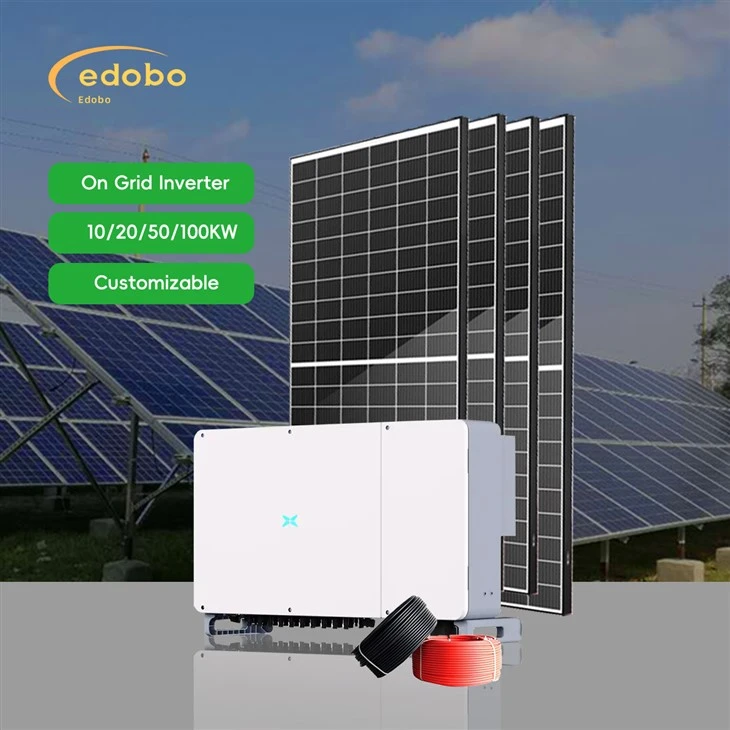

Hnub Ci Pv System Nrog Hnub Ci Inverter On Off Grid
Hauj lwm lawm
Kev tsis
Yuav xam pes tsawg hnub ci zog koj xav tau:
Nta:
Lub hnub ci PV system nrog lub hnub ci inverter yog ib txoj hauv kev zoo kom txuag tau koj cov nqi hluav taws xob thaum tseem khwv tau nyiaj ntxiv los ntawm kev muag cov nyiaj seem rov qab rau hauv daim phiaj. Qhov no yog hu ua grid-tied lossis on-grid system, thiab nws tso cai rau koj siv lub zog ntawm lub hnub los tsim hluav taws xob rau koj lub tsev lossis kev lag luam.
Lub hnub ci PV panels sau lub zog ntawm lub hnub thiab hloov mus rau hauv hluav taws xob ncaj qha (DC) hluav taws xob. Lub hnub ci inverter yog siv los hloov lub zog DC no rau hauv cov hluav taws xob hloov hluav taws xob (AC) hluav taws xob, uas tuaj yeem siv rau lub zog koj lub tsev lossis kev lag luam. Lub zog dhau los ntawm lub kaw lus tuaj yeem muab rov qab rau hauv daim phiaj, tso cai rau koj kom tau txais cov qhab nia lossis nyiaj rau lub zog txaus.
Ib qho txiaj ntsig tseem ceeb ntawm lub hnub ci PV system nrog lub hnub ci inverter yog kev txuag nqi. Los ntawm kev tsim koj tus kheej hluav taws xob, koj tuaj yeem txo lossis tshem tawm koj qhov kev vam khom ntawm daim phiaj, uas tuaj yeem txo koj cov nqi hluav taws xob. Tsis tas li ntawd, los ntawm kev muag ntau lub zog rov qab rau hauv daim phiaj, koj tuaj yeem khwv tau nyiaj tau los ntxiv thiab muaj feem cuam tshuam tus nqi ntawm koj lub hnub ci kev teeb tsa.
Lwm qhov txiaj ntsig yog kev cuam tshuam ib puag ncig. Lub hnub ci zog yog ib qho chaw huv, rov ua dua tshiab uas tsis muaj emissions lossis muaj kuab paug. Los ntawm kev txo koj txoj kev cia siab rau cov fossil fuels thiab txo koj cov pa roj carbon monoxide, koj tuaj yeem ua rau muaj kev cuam tshuam zoo rau ib puag ncig thiab pab tiv thaiv kev hloov pauv huab cua.
|
Yam khoom |
Cov khoom npe |
Duab |
Technical data |
Ntau |
|
1 |
Mono Solar Vaj Huam Sib Luag (Hom: Yingli) |
|
Rated zog: 450 watt, 144 cell, 9BB. yuag: 23.5 kg |
240 pcs |
|
2 |
Daim phiaj-tied Inverter (Hom: Solis) |
|
Rated tso zis zog: 100KW Rated daim phiaj voltage: 480VAC ib theem 60 tzs |
1 qob |
|
3 |
WIFI stick |
|
Saib xyuas qhov system |
1 qob |
|
4 |
AC Combiner Box |
|
1 input 1 output 100 KW |
1 qob |
|
5 |
PV kab |
|
PV1-F4 4MM2 liab hlau yog 100m dub hlau yog 100m |
1300m |
|
6 |
MC connector |
|
Rated voltage: 1000V |
50 ua khub |
|
7 |
PV Mounting Structurer Anodized aluminium alloy khoom alloy yog 6063 zog t5 |
|
haum rau 240pc hnub ci vaj huam sib luag |
1set ib |
Cim npe nrov: hnub ci pv system nrog hnub ci inverter rau ntawm daim phiaj, Tuam Tshoj hnub ci pv system nrog hnub ci inverter ntawm off daim phiaj lwm tus neeg, Hoobkas
