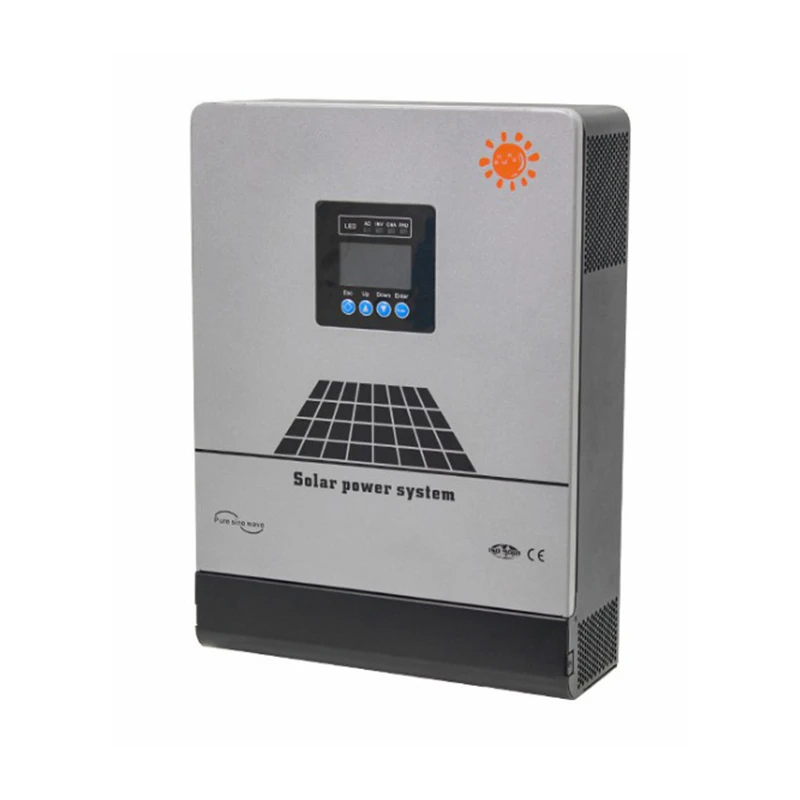

PV Inverter Hybrid
Hauj lwm lawm
Kev tsis
Product Overview:
Qhov no yog ib tug multi-function inverter / charger, combining zog ntawm inverter, hnub ci charger thiab roj teeb charger muab uninterruptible zog txhawb nrog portable loj. lts cov lus qhia dav dav LCD muaj cov neeg siv-configurable thiab yooj yim-nkag khawm ua haujlwm xws li roj teeb them tam sim no, AC / hnub ci charger qhov tseem ceeb, thiab siv tau qhov hluav taws xob raws li kev siv sib txawv.
Cov yam ntxwv tseem ceeb:
Pure Sine Wave Inverter;
Configurable input voltage ntau rau cov khoom siv hauv tsev thiab cov computers ntawm tus kheej;
LCD teeb tsa;
Configurable roj teeb them tam sim no raws li daim ntawv thov ntawm LCD teeb tsa;
Configurable AC / Hnub Ci Charger qhov tseem ceeb ntawm LCD teeb tsa;
Tau tshaj rau mains voltage los yog generators zog;
Nws pib pib dua thaum AC rov qab los;
Overload / Tshaj kub / luv Circuit Court tiv thaiv;
Smart roj teeb charger tsim rau optimized roj teeb kev ua tau zoo;
Cold start function

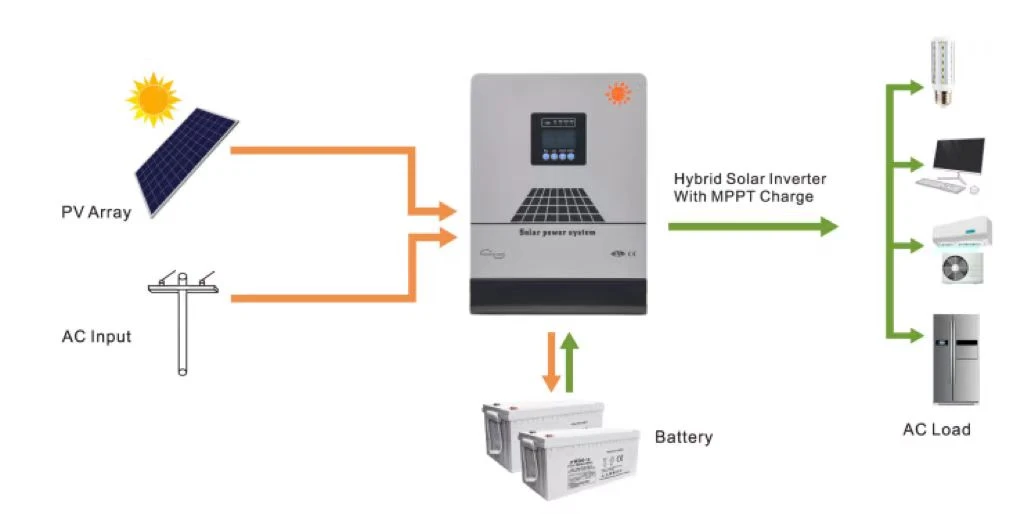

Daim duab thov:
Technical indexes:
|
Qauv |
ED-NKH-3KW |
ED-NKH-5KW |
|
Rated zog |
3000W |
5000W |
|
Tswv yim |
||
|
Qhov hluav taws xob |
208VAC / 220VAC / 230VAC / 240VAC |
|
|
Xaiv qhov Voltage Range |
170-280VAC(Rau Tus Kheej Computers) |
|
|
90-280VAC(Rau Cov Khoom Siv Hauv Tsev) |
||
|
Ntau zaus |
50Hz / 60Hz (Nws pib hnov) |
|
|
Tso zis |
||
|
AC Voltage Regulation (Battery.Mode) |
208VAC / 220VAC / 230VAC / 240VAC txog 5% |
|
|
Surge zog |
6000 VA |
10000 VA |
|
Efficiency (Peak) PV rau INV |
97% |
|
|
Efficiency (Peak) Roj teeb rau INV |
94% |
|
|
Hloov Sijhawm |
10ms ib |
|
|
Overlord Peev xwm |
1min@102%-110%Load,10s@110%-130%Load, |
|
|
3s@130%-150%Load,0.2s@>150% Load |
||
|
Roj teeb & AC Charge |
||
|
Roj teeb Voltage |
24 VDC |
48 VDC |
|
Floating Charge Voltage |
27 VDC |
54vdc ua |
|
Kev tiv thaiv overcharge |
32 VDC |
64vdc ua |
|
Maximum Charge Current |
60A |
80A |
|
PV Charge |
||
|
Maximum PV Array Power |
1500W |
5500W |
|
MPPT Kev Ua Haujlwm Voltage |
30-115VDC |
120-430VDC |
|
Qhov siab tshaj plaws PV Array Qhib Circuit Court Voltage |
||
|
145 VDC IB |
450VDC IB |
|
|
Maximum Charge Current |
60A |
80A |
|
Kev ua tau zoo tshaj plaws |
98% |
|
|
AC + PV Charge |
||
|
Maximum Charge Current |
120A |
80A |
|
Lub cev |
||
|
Qhov Loj D * W * H (mm) |
439*320*128 |
|
|
Net Nyhav (kg) |
8 |
9.2 |
|
Kev sib txuas lus interface |
USB / RS232 / GPRS / WIFI |
|
|
Opera Ting Ib puag ncig |
||
|
Cov av noo |
5% mus rau 95% txheeb ze humidity (Non-condensing) |
|
|
Ua haujlwm kub |
0 degree -55 degree |
|
|
Cia Kub |
-15 degree -60 degree |
|
