Hnub Ci Vaj Huam Sib Luag Hybrid Inverter
Hauj lwm lawm
Kev tsis
Product Overview:
NKM series hybrid hnub ci inverter series nrog Ob chav CPU ntse tswj tshuab, MPPT maub los thiab inverter integrated optimization daws, yog high efficiency ntshiab sine yoj inverter, muab cov neeg siv kev ua tau zoo tshaj plaws. Nws cov lus qhia dav dav LCD muaj cov neeg siv-configurable thiab yooj yim-mus siv tau khawm ua haujlwm xws li roj teeb them tam sim no, AC / hnub ci charger qhov tseem ceeb, thiab cov khoom siv hluav taws xob siv tau raws li cov ntawv thov sib txawv yog dav siv rau tsev neeg, tsev kawm ntawv, txoj kev, pem hauv ntej, tiv thaiv, pasturing thaj chaw. , cov khoom siv hauv tsev, cov khoom siv sib txuas lus satellite, cov tub rog, cov khoom siv tsheb thauj mus los, tsheb thauj neeg mob tub ceev xwm tsheb, nkoj thiab lwm yam.
Cov yam ntxwv tseem ceeb:
Ob chav CPU ntse tswj technology.performance excellence;
Lub hwj chim hom / lub zog txuag hom / roj teeb hom tuaj yeem teeb tsa, Kev siv yooj yim;
Ntse kiv cua tswj, muaj kev nyab xeeb thiab txhim khu kev qha;
Lub ntshiab sine yoj tso zis, tuaj yeem hloov mus rau ntau hom kev thauj khoom;
Dav input voltage ntau, high-precision tso zis tsis siv neeg voltage muaj nuj nqi;
Lub LCD real-time zaub ntaus ntawv tsis ua raws li txoj cai ntawm ib nrais muag;
Cov zis ntau dhau, kev tiv thaiv luv luv, tsis siv neeg tiv thaiv thiab tswb;
Lub ntse MPPT hnub ci maub los, overcharge. tshaj tawm kev tiv thaiv, tam sim no txwv them ntau yam kev tiv thaiv;
Ua-hauv GPRSIWIFI wireless network module, uas tuaj yeem tswj cov xwm txheej ua haujlwm nyob deb ntawm lub xov tooj ntawm tes
APP lossis computer (yeem)

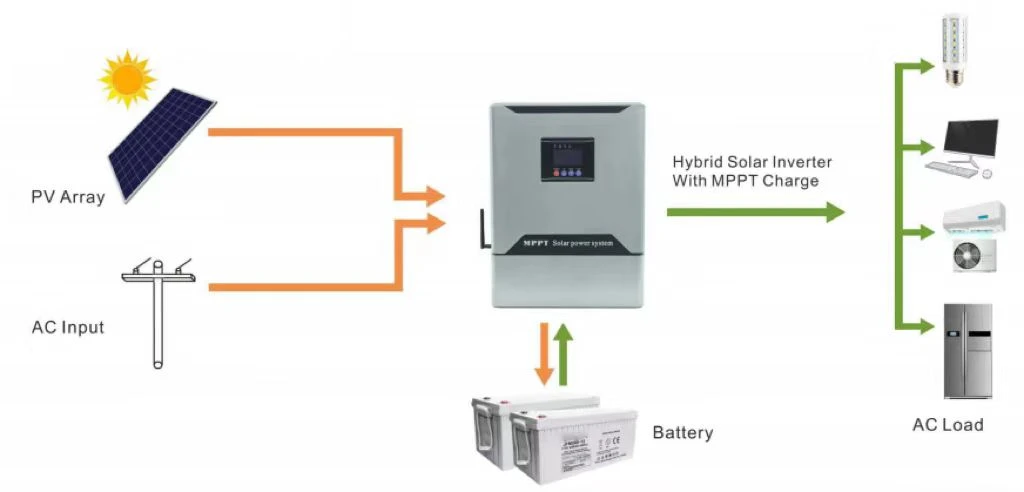

Daim duab thov:
Technical indexes:
|
Qauv: ED-NKM- |
0 3-1KW |
1. 5-6KW |
|||
|
lub zog ntsuas (w) |
300 |
700 |
1500 |
3000 |
5000 |
|
500 |
1000 |
2000 |
4000 |
6000 |
|
|
Roj teeb |
|||||
|
Rated voltage (VDC) |
12/24 |
12/24/48 |
24/48 |
48 |
|
|
Charge tam sim no |
10 A MAX |
30 A MAX |
|||
|
Hom roj teeb |
Yuav tau teem |
||||
|
Tswv yim |
|||||
|
Voltage Ntau |
85-138VAC/170-275VAC |
||||
|
zaus |
45-65Hz |
||||
|
Tso zis |
|||||
|
Voltage Ntau |
110VAC / 220VAC; ± 5% (Inverter hom) |
||||
|
zaus |
50/60Hz ± 1% (Inverter hom) |
||||
|
Tso zis nthwv dej |
Pure Sine Wave |
||||
|
Hloov sijhawm |
<10ms(Typical load) |
||||
|
zaus |
>85% (80% Resistive load) |
||||
|
overcharge |
110-120%/30S;>160% / 300ms; |
||||
|
Kev tiv thaiv muaj nuj nqi |
Roj teeb tshaj-voltage thiab low-voltage tiv thaiv, overload tiv thaiv, luv luv tiv thaiv, tiv thaiv dhau-kub |
||||
|
Solar Controller |
|||||
|
MPPT Voltage Ntau |
12VDC: 15V ~ 150VDC; 24VDC: 30V ~ 150VDC; 48VDC: 60V ~ 150VDC |
||||
|
PV zog |
12VDC-30A(400W); 24VDC-30A (800W |
12VDC-60A(800W); |
|||
|
24VDC-60A(1600W); |
|||||
|
48VDC -60A (3200W) |
|||||
|
Rated nqi tam sim no |
30A (Max) |
60A (Max) |
|||
|
MPPT efficiency |
Ntau dua lossis sib npaug li 99% |
||||
|
Nruab nrab them voltage (lead acid roj teeb) |
12V / 14.2VDC; 24V / 28.4VDC; 48V / 56.8VDC |
||||
|
Floating charge voltage |
12V / 13.75VDC; 24V / 27.5VDC; 48V / 55VDC |
||||
|
Ua haujlwm kub ambient |
-15-+50 degree |
||||
|
Cia ambient kub |
-20 -+50 degree |
||||
|
Kev khiav hauj lwm / khaws cia ib puag ncig |
0-90% Tsis muaj condensation |
||||
|
Qhov Loj: W * D * H (mm) |
420*320*122 |
520*420*222 |
|||
|
Ntim qhov loj: W * D * H (mm) |
535*435*172 |
635*535*252 |
|||
