Product Overview:

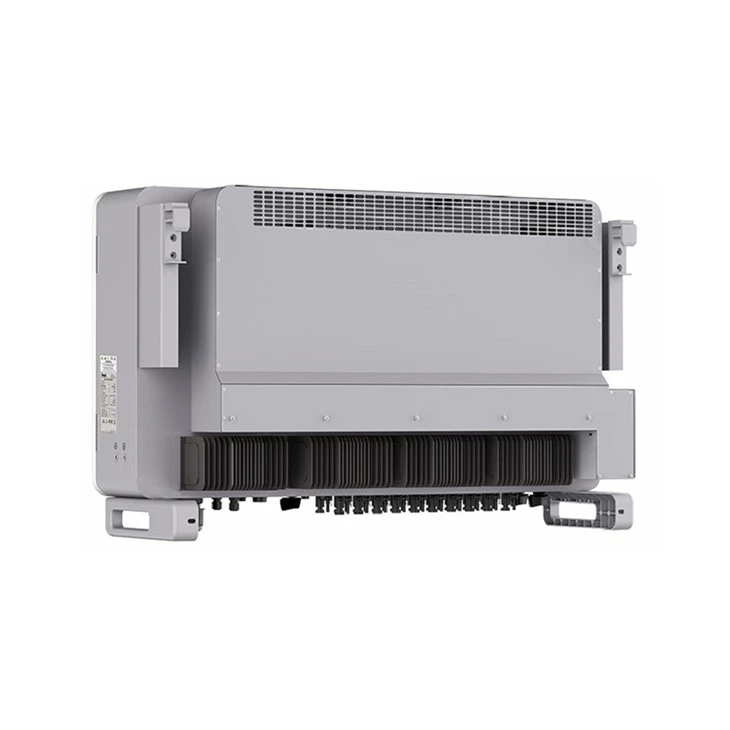

Qhia txog ED100kW - qhov zoo tshaj plaws loj-teev peb-theem inverter uas khav theeb kev ua tau zoo ntawm tus nqi pheej yig. Cov khoom no tau dhau los ua qhov kev sim thiab ntawv pov thawj, ua rau nws tsim nyog siv rau hauv ob qho tib si kev lag luam thiab kev lag luam. Nrog nws cov yam ntxwv zoo heev thiab txhim khu kev qha, ED100kW yog qhov kev daws teeb meem zoo tshaj plaws rau cov neeg siv khoom nrhiav lub zog siv hluav taws xob zoo thiab muaj txiaj ntsig kom tau raws li lawv cov kev xav tau ntawm lub zog.
Nruab nrog cov thev naus laus zis thev naus laus zis, lub inverter no muaj ntau yam kev txiav-ntug, nrog rau kev kuaj xyuas qhov txhaum, kev tiv thaiv overcurrent, thiab kev tswj roj teeb. Cov yam ntxwv no ua kom muaj kev nyab xeeb thiab siv tau ntev ntawm cov khoom, nrog rau muab kev txhawj xeeb rau cov neeg siv khoom.
Hauv cov ntsiab lus, ED100kW yog qhov kev nqis peev zoo tshaj plaws rau cov lag luam tab tom nrhiav rau cov khoom siv hluav taws xob zoo thiab muaj kev cia siab rau lub zog rau lawv cov haujlwm. Nrog nws cov nqi sib tw, txhim khu kev qha kev ua tau zoo, thiab cov yam ntxwv zoo, cov khoom no paub tseeb tias yuav dhau qhov koj xav tau. Xaiv ED100kW hnub no thiab pib noj koj lub zog xav tau mus rau qib tom ntej!
Efficient Cov nyiaj tau los ntau dua
●9-12 MPP Trackers, siab ib lub voj voog taug qab qhov tseeb, cov lus teb ceev ceev thiab muaj zog dua
●150% DC Input Tshaj Loj
● Kev ua haujlwm siab tshaj plaws ntawm 98.7%. Dav MPPT voltage ntau: 180V-1000V
● Tau tshaj nrog lub zog siab modules
Intelligent Yooj Yim O&M
●Smart IV Curve Diagnosis Function: nrhiav PV hlua faults kom raug thiab tau txais kev ua txhaum
●Intelligent Fault Detection: ac-sab voltage thiab tam sim no nthwv dej cov ntaub ntawv ntawm lub sijhawm kaw, qhov chaw ceev ceev
● Txhawb RS485/USB (WiFi/DRM/Bluetooth yeem): xyuas tej thaj chaw deb thiab ua haujlwm ntawm PC lossis xov tooj ntawm tes
Txhim khu kev txhawj xeeb
● IP66 tiv thaiv qib: txhawb kev teeb tsa sab nraum zoov
●DC & AC Hom Il SPD: tiv thaiv kev puas tsuaj ntawm xob laim
●AFCI Muaj nuj nqi (Yeem): thaum kuaj pom arc-fault lub inverter tam sim ntawd nres ua haujlwm
Technical indexes:
|
ED100K-TR |
|
|
Cov tswv yim (DC) |
|
|
Max.Input zog |
150 kW |
|
Max.Input voltage |
1100V |
|
Pib Voltage |
250V |
|
Rated nyob rau hauv muab Voltage |
620V |
|
Puv-load MPP Voltage Range |
530V~850V |
|
MPPT Voltage Ntau |
180V~1000V |
|
Tus naj npawb ntawm MPP Trackers |
9 |
|
Number of String ib MPPT |
2 |
|
Max.Current rau MPPT |
26A |
|
Max.Short Circuit Current per MPPT |
40A |
|
Cov zis (AC) |
|
|
Max.Output Tam sim no |
158.8A |
|
Rated tso zis zog |
100 kW |
|
Max.Output zog |
110kVA ua |
|
Rated Grid Frequency |
50Hz / 60Hz |
|
Rated Daim phiaj Voltage |
230Vac/400Vac, 3L/N/PE, 3L/PE |
|
Hwj chim Factor |
>{{0}}.99 (0.8 ua ~ 0.8 lagging) |
|
TH Diam |
<3% (Rated Power) |
|
Kev ua tau zoo |
|
|
Max.Efficiency |
98.70% |
|
European Efficiency |
98.50% |
|
MPPT Efficiency |
99.90% |
|
Kev tiv thaiv |
|
|
DC rov qab polarity tiv thaiv |
Yog lawm |
|
Anti-islanding tiv thaiv |
Yog lawm |
|
AC luv Circuit Court tiv thaiv |
Yog lawm |
|
Residual tam sim no saib xyuas chav tsev |
Yog lawm |
|
Rwb thaiv tsev kuj saib xyuas |
Yog lawm |
|
Kev saib xyuas hauv av |
Yog lawm |
|
Daim phiaj saib xyuas |
Yog lawm |
|
PV txoj hlua saib xyuas |
Yog lawm |
|
Surge tiv thaiv |
Hom Ⅱ |
|
AFCI kev tiv thaiv |
Xaiv tau |
|
Kev sib txuas lus |
|
|
Zaub |
LED / LCD / WiFi + App |
|
Kev sib txuas lus |
Txuj: RS485 / USB |
|
Txuj kev ua raws cai |
|
|
Grid Connection Standards |
IEC 61727, IEC 62116, IEC60068, VFE-AR-N 4110: 2018, VDE-AR-N4105: 2018, |
|
Kev nyab xeeb / EMC |
IEC 62109-1: 2010, IEC 62109-2: 2011, EN 61000-6-2: 2005, EN 61000-6-3: 2007/A1: 2011 |
|
Cov ntaub ntawv dav dav |
|
|
Qhov Loj (W * H * D) |
1050 * 660 * 330 hli |
|
Qhov hnyav |
95kg ua |
|
Kev khiav hauj lwm qhov kub thiab txias |
-30 degree ~ +60 degree |
|
Txoj kev txias |
Ntse txias |
|
Kev tiv thaiv qib |
IP66 |
|
Max.Operating Altitude |
4000m |
|
Reklative Humidity |
0~100% |
|
Topology |
Hloov tsis tau |
|
Hmo ntuj siv zog |
<1W |
