Product Overview:

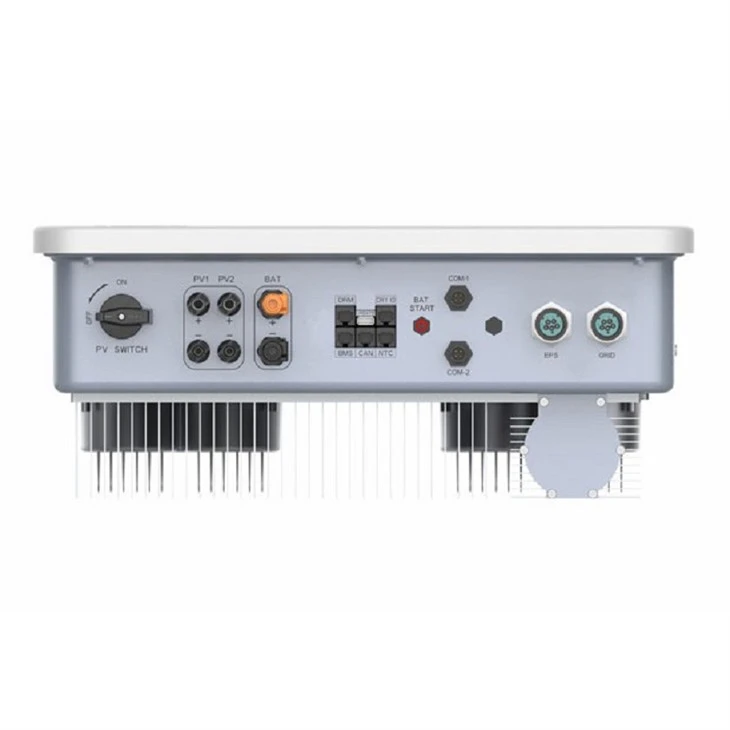

ED5kW yog qhov tseeb ib-theem lub zog cia inverter tsim rau tsev neeg thiab cov lag luam me hnub ci fais fab nroj tsuag. Nws muaj built-in tus kheej tiam thiab nws tus kheej noj, ncov shaving thiab hav filling, roj teeb qhov tseem ceeb, lub hwj chim backup, thiab lwm yam kev khiav hauj lwm hom. Tsis tas li ntawd, nws kuj khav theeb ntau lub zog cia kev daws teeb meem, suav nrog ntau chav nyob rau tib lub sijhawm, Anti-reflux, thiab lwm yam. Nrog nws cov txheej txheem dav dav, ED5kW yog qhov kev xaiv zoo tshaj plaws rau cov neeg nrhiav kev txhim khu kev qha thiab muaj txiaj ntsig zoo rau lawv lub hnub ci fais fab nroj tsuag.
Technical indexes:
|
ED5K-TL |
|
|
Cov tswv yim (DC) |
|
|
Max.Input zog |
7.5 kWm |
|
Max.Input voltage |
600V |
|
Pib Voltage |
80V |
|
Rated nyob rau hauv muab Voltage |
360V |
|
Puv-load MPP Voltage Range |
170V~480V |
|
MPPT Voltage Ntau |
80V~560V |
|
Tus naj npawb ntawm MPP Trackers |
2 |
|
Number of String ib MPPT |
1/1 |
|
Max.Current rau MPPT |
20A |
|
Max.Short Circuit Current per MPPT |
25A |
|
Cov zis (AC) |
|
|
Max.Output Tam sim no |
25A |
|
Rated tso zis zog |
5 kW ib |
|
Max.Output zog |
5.5 kVA ua |
|
Rated Grid Frequency |
50Hz / 60Hz |
|
Rated Daim phiaj Voltage |
220VAC/230VAC/240VAC |
|
Hwj chim Factor |
>{{0}}.99 (0.8 ua ~ 0.8 lagging) |
|
TH Diam |
<3% (Rated Power) |
|
Kev ua tau zoo |
|
|
Max.Efficiency |
98.30% |
|
European Efficiency |
97.20% |
|
MPPT Efficiency |
99.90% |
|
Kev tiv thaiv |
|
|
DC rov qab polarity tiv thaiv |
Yog lawm |
|
Anti-islanding tiv thaiv |
Yog lawm |
|
AC luv Circuit Court tiv thaiv |
Yog lawm |
|
Residual tam sim no saib xyuas chav tsev |
Yog lawm |
|
Rwb thaiv tsev kuj saib xyuas |
Yog lawm |
|
Kev saib xyuas hauv av |
Yog lawm |
|
Daim phiaj saib xyuas |
Yog lawm |
|
PV txoj hlua saib xyuas |
Yog lawm |
|
Surge tiv thaiv |
Hom Ⅱ |
|
AFCI kev tiv thaiv |
Xaiv tau |
|
Kev sib txuas lus |
|
|
Zaub |
LED / LCD / WiFi + App |
|
Kev sib txuas lus |
RS485 / WiFi / 4G |
|
Txuj kev ua raws cai |
|
|
Grid Connection Standards |
IEC 61727, IEC 62116, IEC60068, VFE-AR-N 4110: 2018, VDE-AR-N4105: 2018 |
|
Kev nyab xeeb / EMC |
IEC 62109-1: 2010, IEC 62109-2: 2011, EN 61000-6-2: 2005, EN 61000-6-3: 2007/A1: 2011 |
|
Cov ntaub ntawv dav dav |
|
|
Qhov Loj (W * H * D) |
380 * 380 * 160 hli |
|
Qhov hnyav |
13kg ua |
|
Kev khiav hauj lwm qhov kub thiab txias |
-30 degree ~ +60 degree |
|
Txoj kev txias |
Ntuj |
|
Kev tiv thaiv qib |
IP66 |
|
Max.Operating Altitude |
4000m |
|
Reklative Humidity |
0~100% |
|
Topology |
Hloov tsis tau |
|
Hmo ntuj siv zog |
<1W |
