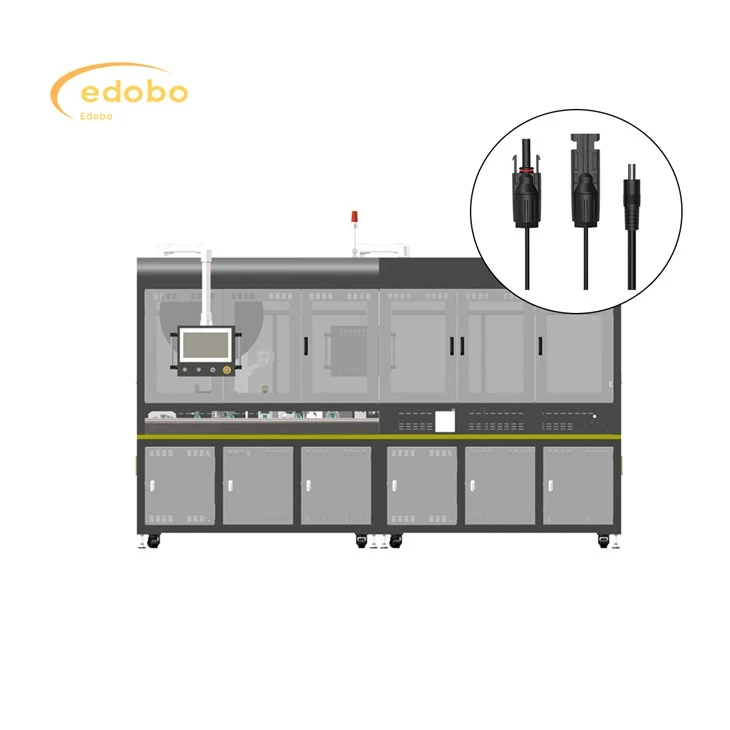

Hnub ci Vaj Huam Sib Luag Muab Kev Khib Tes Box Crimping Tshuab

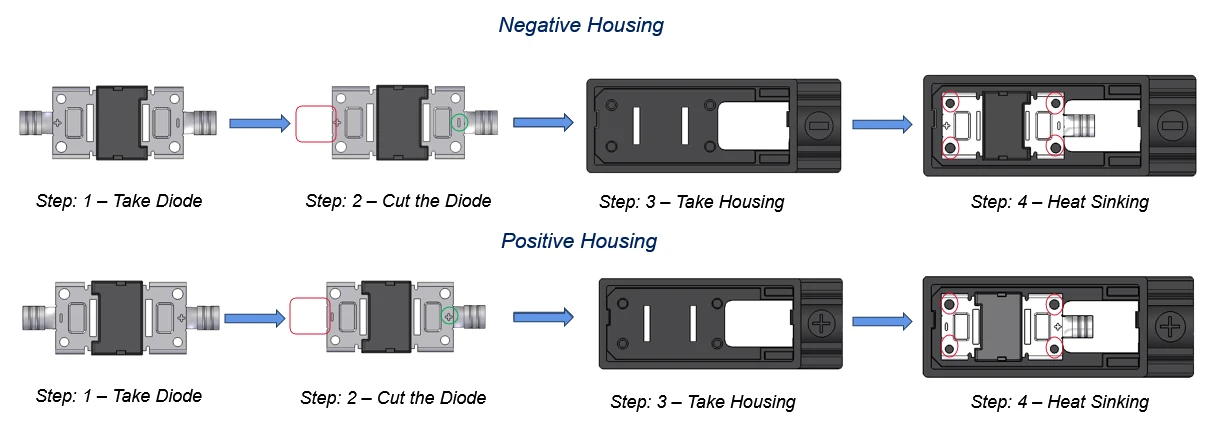

1.Thaum diode:

Ib tus neeg teb xov tooj (lossis ib lub tshuab tuaj yeem xaiv thiab-qhov chaw nyob hauv ib nrab tshuab txiav txim siab) khaws ib daim dire.

2.Cov lub Diode:

Cov Diode cov coj (cov hlau hlau txuas ntxiv los ntawm Diode lub cev) tau txiav kom muaj qhov ntev. Cov duab qhia cov teeb liab liab, tejzaum nws qhov kev txiav nyom. Kev txiav txim ncaj ncees yog qhov tseem ceeb los xyuas kom meej haum thiab kev sib cuag hluav taws xob.

3.Take vaj tse:

Lub tsev nyob tsim nyog (txawm yog lub tsev "tsis zoo" lossis "vaj tse" zoo) tau rov qab los.

4.Heat xaws:

Lub taub hau txiav Diode tau ntxig rau hauv lub tsev. Cov voj voog liab yuav qhia tau cov ntsiab lus sib chwv uas cov dev uas ua hluav taws xob sib cuag nrog cov hlau seem hauv lub tsev. Cov kauj ruam no tseem muab lub tshuab ntxuav kub - hloov cua sov kom deb ntawm diode.

Polarity: Cov txheej txheem tau sib cais rau hauv "tsev nyob tsis zoo" thiab "vaj tse nyob" zoo ", qhia tias Diode lub polarinals (zoo thiab tsis zoo. Cov tsev tau tsim qauv sib txawv kom ntseeg tau tias cov diode tau ntxig kom raug.

Qhov hluav taws xob sib cuag: cov "cua sov so" Qhov no txhais tau tias cov Diode ua kom ruaj khov rau kev sib cuag nrog cov tswv yim. Qhov no yog qhov tseem ceeb rau lub thawv hlws rau kom ua haujlwm kom raug.

Tswjhwm Zoo:

Kev kuaj pom ntawm dodes ua ntej thiab tom qab txiav.

Txheeb xyuas Diode lub polarity.

Kom ntseeg tau kom ruaj khov thiab rooj zaum ntawm daim diode hauv lub tsev.

Muaj feem, kev ntsuas hluav taws xob kom paub tseeb qhov kev sib txuas.

Ntxiv mus los ua ke: qhov no tsuas yog ib feem ntawm kev sib tshuam tag nrho lub thawv sib dhos. Tom qab no cov kev sib xyaw ua ke no, yuav muaj cov kauj ruam ntxiv, xws li:

Txuas cov ntaub qhwv sab hauv.

Txuas lub thawv hloog rau lub solar vaj huam sib luag.

Potting lossis sealing lub thawv hlws ris kom tiv thaiv nws los ntawm ib puag ncig.

Ntxiv cov qog cable lossis txuas.

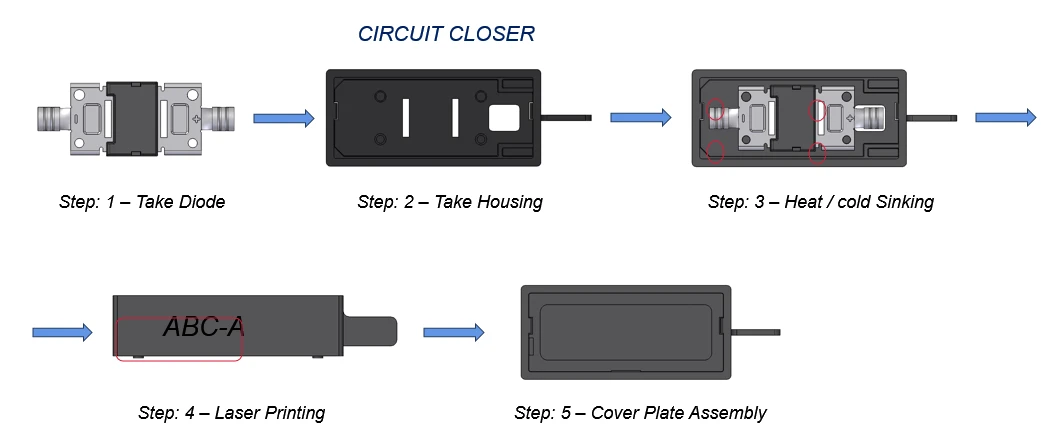

Kauj ruam 1: Nqa Diode:

Diode yog rov qab (yog manually lossis los ntawm ib lub kaw lus).

Kauj ruam 2: Siv Vaj Tse:

Lub tsev tsim nyog

Kauj ruam 3: Tshav kub / Txias Sinking:

Cov kauj ruam no ua ke ntau ntau yam:

Diode ntxig: cov diode tau ntxig rau hauv vaj tse.

Kev sib txuas hluav taws xob: Lub Diode cov kev coj ua tau kev sib cuag nrog cov lus tshaj tawm hauv tsev.

Txiav: Diode cov coj ua tsis xav tau txiav.

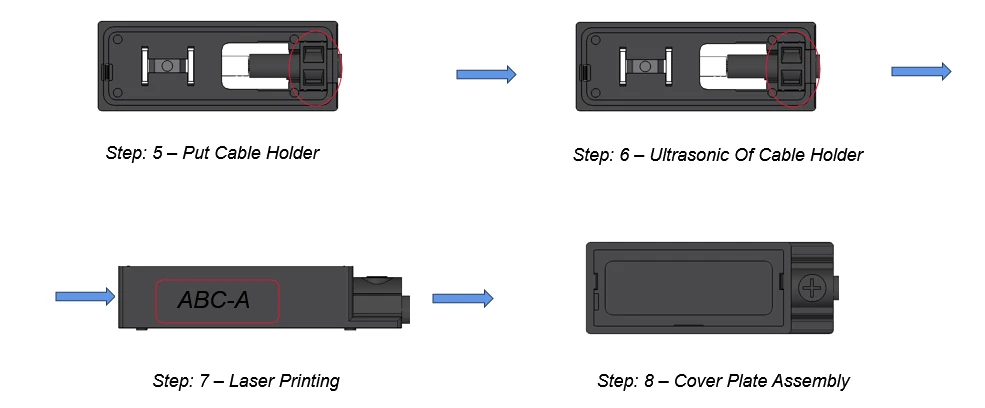

Kauj ruam 4: Laser Luam Ntawv:

Lub tsev nyob yog cim nrog cov ntaub ntawv txheeb xyuas (piv txwv li, "ABC-A") siv cov tshuab luam ntawv laser / engraving system.

Kauj Ruam 5: Npog phaj sib dhos:

Lub hau phaj txuas nrog lub tsev nyob, muab cov khoom siv sab hauv.

1. Cov ntaub ntawv raw rau cov khoom siv cov khoom siv no yog: Central tsis zoo lub thawv thiab cov qauv sib xws), cov kab ke siab, cables nrog cov txuas txuas.

2. Ua Haujlwm Tau Zoo

Tsis siv neeg pub mis rau ntawm lub nroog tsis zoo lub cev. Tsis siv neeg pub mis ntawm tus qauv. Los ua ke thiab riveting ntawm module nrog lub thawv lub cev. Kev ntsuas hluav taws xob ntsuas ntawm lub cev nruab nrab, coding. Tsis siv neeg tsis siv neeg.

② (Lub thawv lub cev zoo thiab tsis zoo) phau ntawv kev soj ntsuam, siv hluav taws xob (nrog kev ntsuas hluav taws xob, tsis siv neeg sau hluav taws xob, tsis siv neeg sau cia.

3. Cov Khoom Siv Yuav Tsum Tau

Txhua yam uas nkag mus rau hauv kev sib cuag nrog cov ntaub ntawv raw yuav tsum polished kom ntseeg tau tias cov nplaim dej raw tsis puas, khawb lossis kos.

② Pab kom RIVET xov hlau compression.

③ Ultrasonic Vuam ntawm lub suab sealing muaj lub zog sib luag ntawm tsis muaj tsawg tshaj li 350 n

④ hluav taws xob ntsuas thiab cov ntaub ntawv sau ua ke. ⑤C / T: 4 vib nas this.

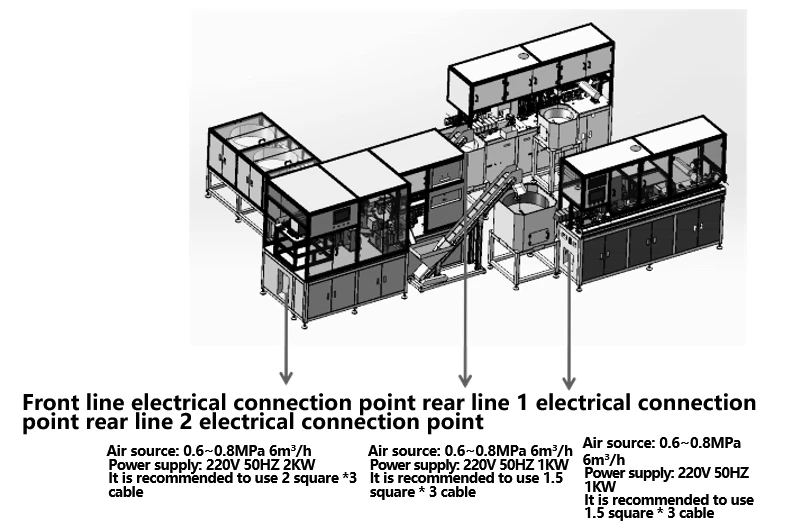

1. Cov kab ntau lawm yog tsim rau kev ua tshuab photovoltaic cable. Cov kab ntau lawm ntws los ntawm sab laug rau sab xis thiab tuaj yeem ua tiav cov xov hlau, cov txiv ntoo sib tw, lub thawv criver, CCD nrhiav kom tau

2. Muaj feem xyuam co lub taub: 4mm²

3. Kab ntev: 15 {0 mm {2}} mm, kam +1 mm;

4. Pev ntev ntau yam: 1-9 hli;

5. Ntau lawm suab nrov: ntau dua los yog sib npaug rau 4 vib nas this;

6. Host loj: 1200 × 4000 × 2400mm

7. Tib neeg tshuab operating system: Lub vijtsam touchAble interface yog qhov yooj yim thiab meej, tso cai rau kev tswj xyuas sai ntawm lub tshuab ua haujlwm. Txhua yam tsis muaj peev xwm tau yooj yim thiab khaws cia yooj yim, thiab cov lus qhia ua haujlwm tau tshwm sim hauv kev txawj ntse thiab yooj yim los ntawm cov duab. Nws los nrog 4-} qib theem pib kev tiv thaiv kev ua haujlwm (nrog kev tso cai), ua txhaum cai tswj hwm kev tu, ua tiav kev tu ua kom yooj yim thiab them tus nqi txo;

8. Feem ntau cov chaw ua haujlwm siv cov khoom paub tab rau kev koom ua ke kom ntseeg tau cov khoom ruaj khov;

9. Txais cov txheej txheem kev tswj hwm kev tswj hwm kom ntseeg tau qhov tseeb;

10. Qhov kev zov me nyuam tuaj yeem khaws txog 100 cov ntaub ntawv thiab tuaj yeem nkag mus los ntawm xaiv tus lej program. Cov ntaub ntawv database sau cov ntaub ntawv ntau lawm thiab npaj zoo rau cov kab ntau lawm, ua kom yooj yim rau cov ntaub ntawv sab sauv thiab taug kev ua cov ntaub ntawv thaum cov khoom lag luam ntau lawm hauv lub network;
