Hnub Ci Vaj Huam Sib Luag Ntau Cov Khoom Siv Vuam Tshuab

1. Cov txheej txheem kev ua haujlwm ntawm lub hnub ci vaj huam sib luag rhiav:
Slicing ntawm roj teeb hlwb → kuaj cov roj teeb hlwb → xaiv cov roj teeb → soldering → stringing → stacking → EL test → lamination → thav duab sib dhos → tu → gluing thiab ntim → thaiv → flash test → ntim.

2. Kev khiav hauj lwm txheej txheem rau slicing roj teeb hlwb:
Raws li cov neeg siv khoom xav tau, nkag mus rau cov ntaub ntawv tseem ceeb (xws li hlais qhov dav & qhov siab) rau hauv lub computer txuas nrog lub tshuab txiav → tso cov roj teeb hauv lub tshuab txiav → nyem "ua haujlwm" lossis nias lub "spacebar" → khiav lub slicer → tshem tawm cov roj teeb hlwb thiab muab faib ua ob peb daim me me raws cov kab txiav. (Ceeb Toom: Lub luag haujlwm ntawm lub tshuab txiav yog txiav cov roj teeb.)

3. Roj teeb ntawm tes kuaj cov txheej txheem ua haujlwm:
Tig lub ntsuas hluav taws xob tam sim no thiab qhov ntsuas hluav taws xob → tso lub roj teeb ntawm tes rau ntawm lub rooj ntawm lub ntsuas ntsuas, maj mam nyem rau ntawm lub roj teeb ntawm tes nrog lub ntsuas ntsuas ntsuas thaum nqis los ntawm ko taw ntawm lub ntsuas ntsuas → lub ntsuas ntsuas qhia cov ntaub ntawv tseem ceeb kom pom tias cov ntaub ntawv no ua tau raws li qhov xav tau. kev xav tau. (Faj seeb: Qhov kev ntsuam xyuas ntawm qhov ntsuas tam sim no thiab qhov ntsuas hluav taws xob yog tam sim no, thiab qhov hluav taws xob tau ruaj khov. Qhov voltage ntawm txhua lub roj teeb ntawm tes yog 0.5V; ko taw pedal yog siv rau lub hwj chim.)











4. Cov txheej txheem xaiv roj teeb ntawm tes:
Raws li qhov loj ntawm cov roj teeb chips, cov roj teeb chips dhau qhov kev xeem yuav tsum tau muab faib → xim ntawm cov roj teeb chips yuav tsum tau muab cais tawm ntawm lub teeb mus rau qhov tob → txhua hom roj teeb chips yuav tsum muab tso rau hauv ib lub thawv txhua 12 PCS. Txhua kab ntawm cov roj teeb chips yuav tsum tau sib cais los ntawm ua npuas ncauj, thiab tib yam ntawm cov roj teeb chips thiab cov thawv yuav tsum tau sib cais los ntawm npuas. (Ceeb toom: Thaum xaiv cov roj teeb, nws tseem yuav tsum tau xyuas seb lawv puas qias neeg. Yog tias muaj, maj mam muab cov stains nrog cov lwv. so lawv.)

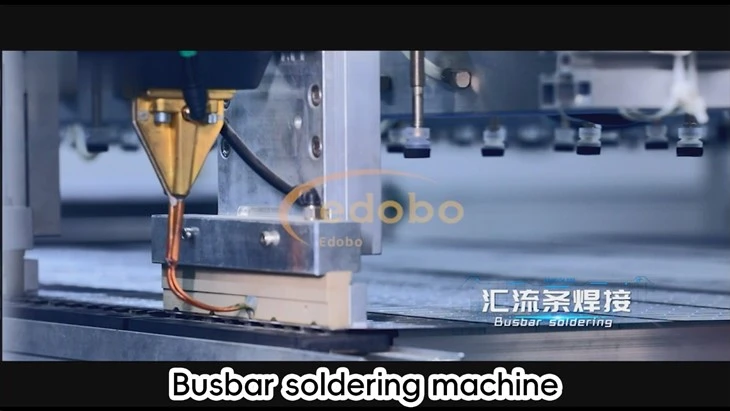

5. Vuam txheej txheem:
Txiav lub photovoltaic ribbon raws li qhov dav ntawm lub hnub ci cell (piv txwv li qhov ntev ntawm photovoltaic ribbon=qhov dav ntawm lub hnub ci cell x 1.9) → Muab cov hlais photovoltaic ribbon rau hauv flux, muab nws tawm tom qab thiab tshuab Qhuav nws nrog lub tshuab tshuab → Teem lub hnub ci ntawm lub rooj ua haujlwm → Siv cov tweezers los kho cov kab hluav taws xob photovoltaic nrog rau pem hauv ntej lub ntsiab daim phiaj kab ntawm lub hnub ci cell (xws li cov dawb ib feem ntawm cov xim ntawm lub hnub ci cell) → Ceev ceev dhau los ntawm photovoltaic ribbon nrog ib tug soldering hlau. (Ceeb toom: Lub photovoltaic ribbon yuav tsum tsis txhob ncua dhau lub hnub ci cell, tawm tsawg kawg yog 1-2 daim phiaj. Thaum soldering lub hnub ci cell thiab photovoltaic ribbon, lub soldering hlau yuav tsum tsis txhob nyob, txwv tsis pub tej zaum yuav muaj solder pob qij txha, thiab nws Yuav tsum tsis txhob muab khi rau hauv qab Nres thaum tseem muaj ob daim phiaj sab laug hauv qab, txwv tsis pub lub photovoltaic ribbon tsis tuaj yeem khoov thaum lub sij hawm stacking.

Edobo Company yog tus thawj coj hauv kev tsim cov kab hluav taws xob hnub ci. Nrog 15 xyoo ntawm kev tshawb fawb thiab kev tsim kho kev txawj ntse, peb tau pioneered cutting-edge technologies thiab cov txheej txheem los lav zoo sab saum toj thiab zoo ntau lawm kab. Peb pab neeg txawj ntse tau mob siab rau muab cov kev daws teeb meem tshiab rau lub hnub ci zog, ua rau peb cov neeg siv khoom kom ncav cuag cov hom phiaj tsim khoom ntawm 100MW, 300MW, lossis 500MW, yog li tsim cov txiaj ntsig zoo.

Vim li cas thiaj xaiv Edobo Solar's Solar Vaj Huam Sib Luag Ntau Lawm Kab?

Kev ua haujlwm siab:Automated tshuab, los ntawm series vuam mus rau lamination, xyuas kom ceev thiab zoo ib yam ntau lawm, optimizing ob lub sij hawm thiab kev pab.

Scalability:Cov kab ntau lawm yog tsim los rau kev ua kom yooj yim thiab tuaj yeem ua kom haum rau ntau qhov kev tsim khoom, tsis hais rau cov lag luam me lossis cov tuam txhab loj.

Superior Quality Control:Cov txheej txheem kev ruaj ntseg zoo ua kom ntseeg tau tias txhua lub vaj huam sib luag ua tau raws li cov qauv thoob ntiaj teb rau kev ua tau zoo thiab kav ntev.

Kev them nyiaj yug Comprehensive:Edobo Solar muab kev txhawb nqa tag nrho, los ntawm kev teeb tsa thiab kev cob qhia mus rau kev saib xyuas, ua kom muaj kev ua haujlwm zoo thiab ua kom muaj txiaj ntsig zoo.
