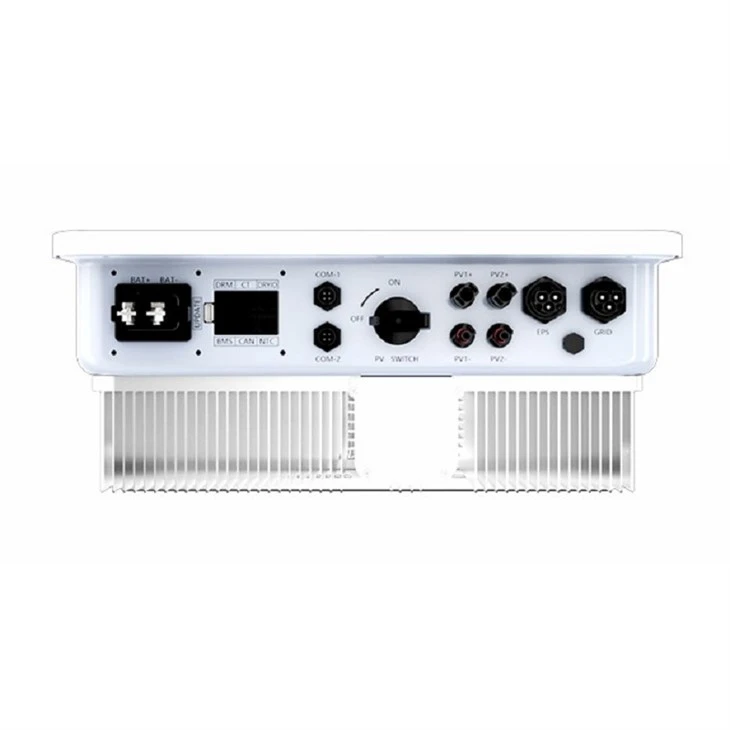

Single Phase Grid Tie Inverter
ED3kW(2)(001)

Tib Phase Grid Tie Inverter

ED3kW yog ib tiam tshiab ntawm ib-theem zog cia inverter nrog kev ua tau zoo. Nws tuaj yeem hloov kho rau ntau yam kev siv hluav taws xob hauv tsev, suav nrog kev nkag mus rau tib lub sijhawm ntawm PV, roj teeb, thauj khoom, daim phiaj / diesel generator, built-in tus kheej tiam thiab kev siv tus kheej, ncov shaving thiab hav filling, roj teeb tseem ceeb, lub zog thaub qab, thiab lwm yam. hom kev ua haujlwm.

Xa kev nug

Hauj lwm lawm

Kev tsis

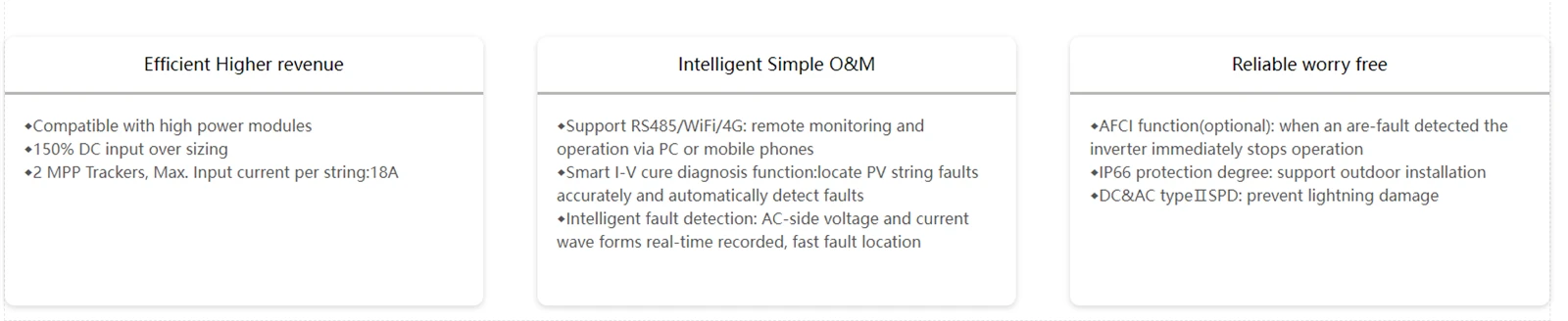

Product Overview:

Technical indexes:

ED3K-TL
Cov tswv yim (DC)
Max.Input zog	4.5 kWm
Max.Input voltage	600V
Pib Voltage	80V
Rated nyob rau hauv muab Voltage	360V
Puv-load MPP Voltage Range	190V~480V
MPPT Voltage Ntau	80V~560V
Tus naj npawb ntawm MPP Trackers	1
Number of String ib MPPT	1
Max.Current rau MPPT	20A
Max.Short Circuit Current per MPPT	25A
Cov zis (AC)
Max.Output Tam sim no	15A
Rated tso zis zog	3 kW
Max.Output zog	3.3kVA ua
Rated Grid Frequency	50Hz / 60Hz
Rated Daim phiaj Voltage	220VAC/230VAC/240VAC
Hwj chim Factor	>{{0}}.99 (0.8 ua ~ 0.8 lagging)
TH Diam	<3% (Rated Power)
Kev ua tau zoo
Max.Efficiency	98.10%
European Efficiency	97.10%
MPPT Efficiency	99.90%
Kev tiv thaiv
DC rov qab polarity tiv thaiv	Yog lawm
Anti-islanding tiv thaiv	Yog lawm
AC luv Circuit Court tiv thaiv	Yog lawm
Residual tam sim no saib xyuas chav tsev	Yog lawm
Rwb thaiv tsev kuj saib xyuas	Yog lawm
Kev saib xyuas hauv av	Yog lawm
Daim phiaj saib xyuas	Yog lawm
PV txoj hlua saib xyuas	Yog lawm
Surge tiv thaiv	Hom Ⅱ
AFCI kev tiv thaiv	Xaiv tau
Kev sib txuas lus
Zaub	LED / LCD / WiFi + App
Kev sib txuas lus	RS485 / WiFi / 4G
Txuj kev ua raws cai
Grid Connection Standards	IEC 61727, IEC 62116, IEC60068, VFE-AR-N 4110: 2018, VDE-AR-N4105: 2018 VDE-AR-N 4120:2018, N 50549, AS/NZS 4777.2:2020, CEI 0-21, VDE 0126-1-1/A1 VFR 2014, UTE C15-712-1:2013, DEWA DRRG, NRS 097-2-1, MEA/PEA, C10/11, G98/G99
Kev nyab xeeb / EMC	IEC 62109-1: 2010, IEC 62109-2: 2011, EN 61000-6-2: 2005, EN 61000-6-3: 2007/A1: 2011
Cov ntaub ntawv dav dav
Qhov Loj (W * H * D)	380 * 380 * 160 hli
Qhov hnyav	13kg ua
Kev khiav hauj lwm qhov kub thiab txias	-30 degree ~ +60 degree
Txoj kev txias	Ntuj
Kev tiv thaiv qib	IP66
Max.Operating Altitude	4000m
Reklative Humidity	0~100%
Topology	Hloov tsis tau
Hmo ntuj siv zog	<1W
