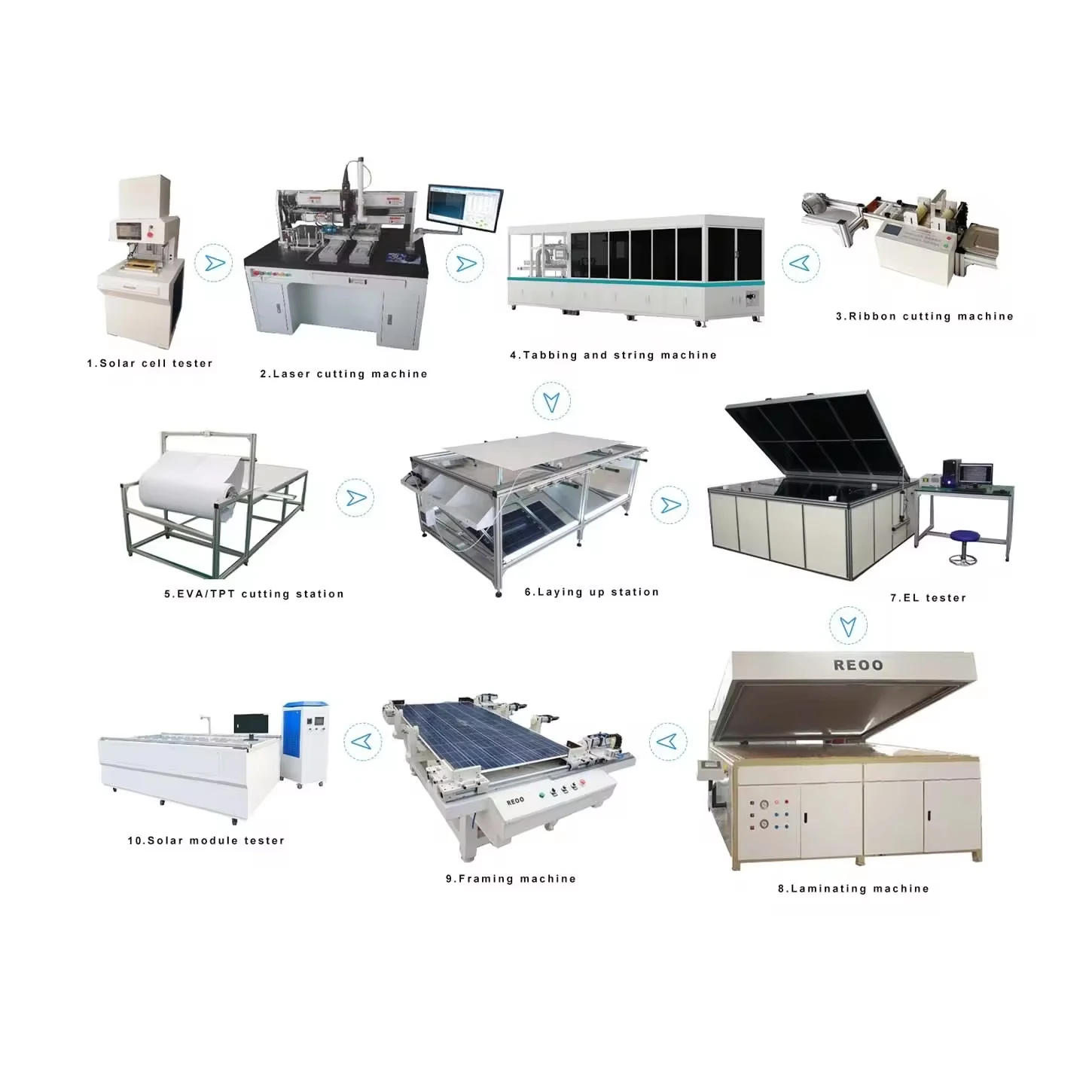

100MW 200MW 600W Hnub Ci Vaj Huam Sib Luag Ua Chaw Tsim Khoom

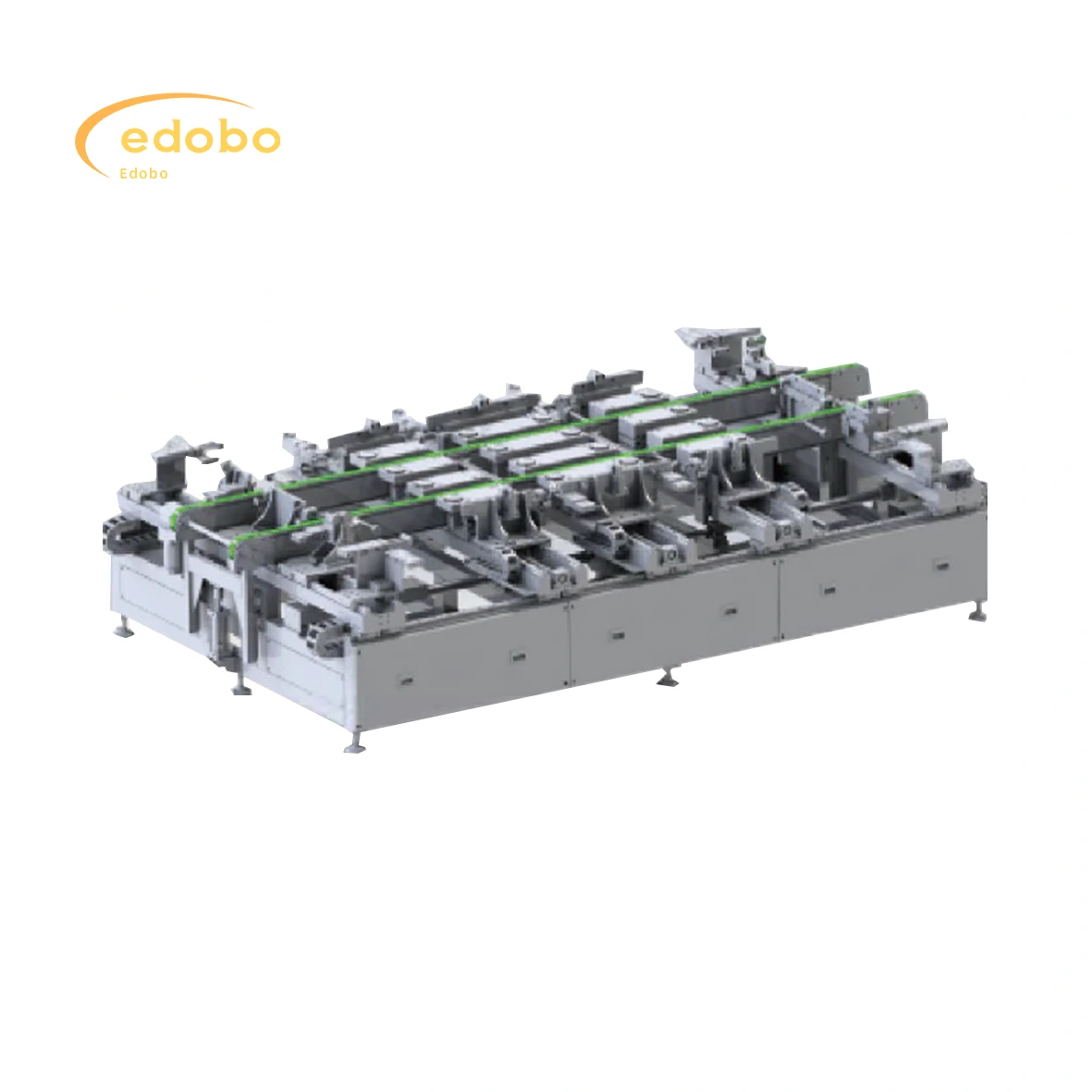

Tsis siv neeg framing

Raws li qhov kev thov rau hnub ci zog txuas ntxiv mus, ntau thiab ntau lub tuam txhab tab tom nrhiav los tsim cov hnub ci vaj huam sib luag ntawm qhov loj dua. Txhawm rau ua tiav qhov no, cov tuam ntxhab tau nqis peev hauv cov khoom siv uas tuaj yeem tsim cov vaj huam sib luag ntawm lub peev xwm ntawm 100MW, 200MW, thiab ntau dua.

Ib qho ntawm cov khoom tseem ceeb ntawm kev tsim vaj huam sib luag hnub ci yog cov cuab yeej siv los tsim lub hnub ci ntawm tus kheej. Cov hlwb no yog tsim los ntawm silicon wafers, uas tau kho nrog ntau yam tshuaj thiab cov txheej txheem txhawm rau tsim cov khoom siv hluav taws xob tsim nyog. Cov neeg tsim khoom feem ntau siv cov cuab yeej siv tsis siv neeg los siv cov kev kho mob no, thiab cov khoom siv tuaj yeem sib txawv ntawm qhov loj thiab qhov nyuaj nyob ntawm qhov muaj peev xwm ntawm vaj huam sib luag.

Thaum cov hlwb tau tsim, lawv tau sib sau ua ke rau hauv vaj huam sib luag siv cov cuab yeej tshwj xeeb. Qhov no yuav suav nrog ntxiv txheej tiv thaiv, xws li tempered iav, rau pem hauv ntej ntawm lub vaj huam sib luag thiab txuas cov hlwb nrog cov xov hlau lossis lwm yam khoom siv hluav taws xob. Cov khoom kawg raug kuaj xyuas kom ntseeg tau tias nws ua tau raws li cov qauv tsim nyog.

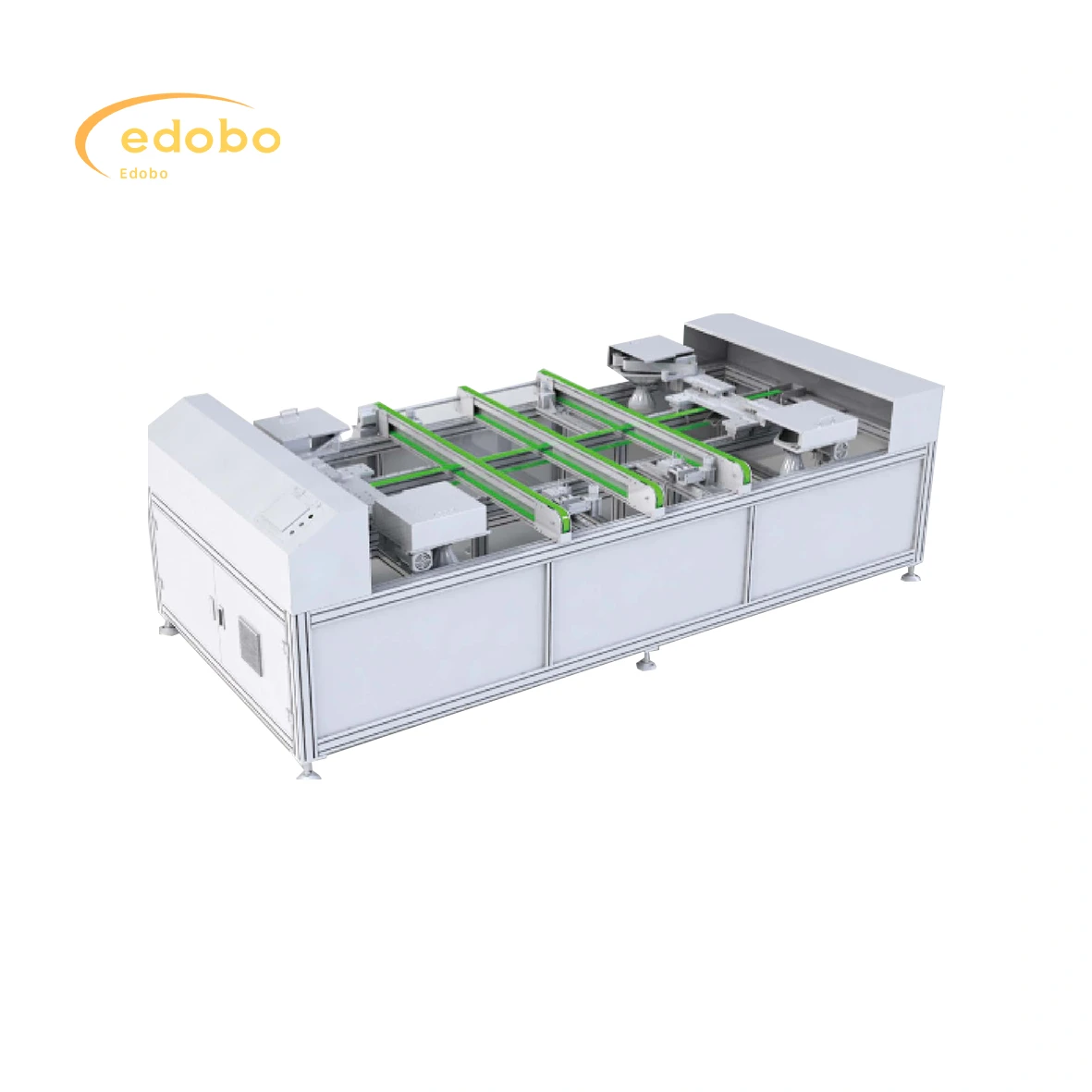

Lub kaum milling

Thaum xaiv cov chaw tsim khoom hnub ci vaj huam sib luag, nws yog ib qho tseem ceeb uas yuav tsum xav txog ob qho tib si cov cuab yeej siv thiab cov peev txheej ntau lawm. Lub Hoobkas zoo nrog lub peev xwm ntau lawm tuaj yeem muab kev lag luam ntawm cov nplai uas tuaj yeem pab txo cov nqi tag nrho. Txawm li cas los xij, nws tseem yog ib qho tseem ceeb kom ntseeg tau tias cov chaw tsim khoom muaj cov txheej txheem tswj xyuas zoo nyob rau hauv qhov chaw kom ntseeg tau tias txhua lub vaj huam sib luag ua tau raws li cov qauv tsim nyog rau kev ua tau zoo thiab kav ntev.

Nrog rau qhov kev thov rau hnub ci zog txuas ntxiv mus ntxiv, nws zoo li peb yuav pom ntau thiab ntau dua peev hauv cov cuab yeej siv thiab thev naus laus zis los tsim cov hnub ci vaj huam sib luag ntawm lub peev xwm siab dua. Yog li ntawd, peb tuaj yeem cia siab tias yuav pom cov nqi pheej yig zuj zus, ua rau lub hnub ci hluav taws xob muaj kev pheej yig dua thiab siv tau rau cov tsev thiab kev lag luam ib yam nkaus.

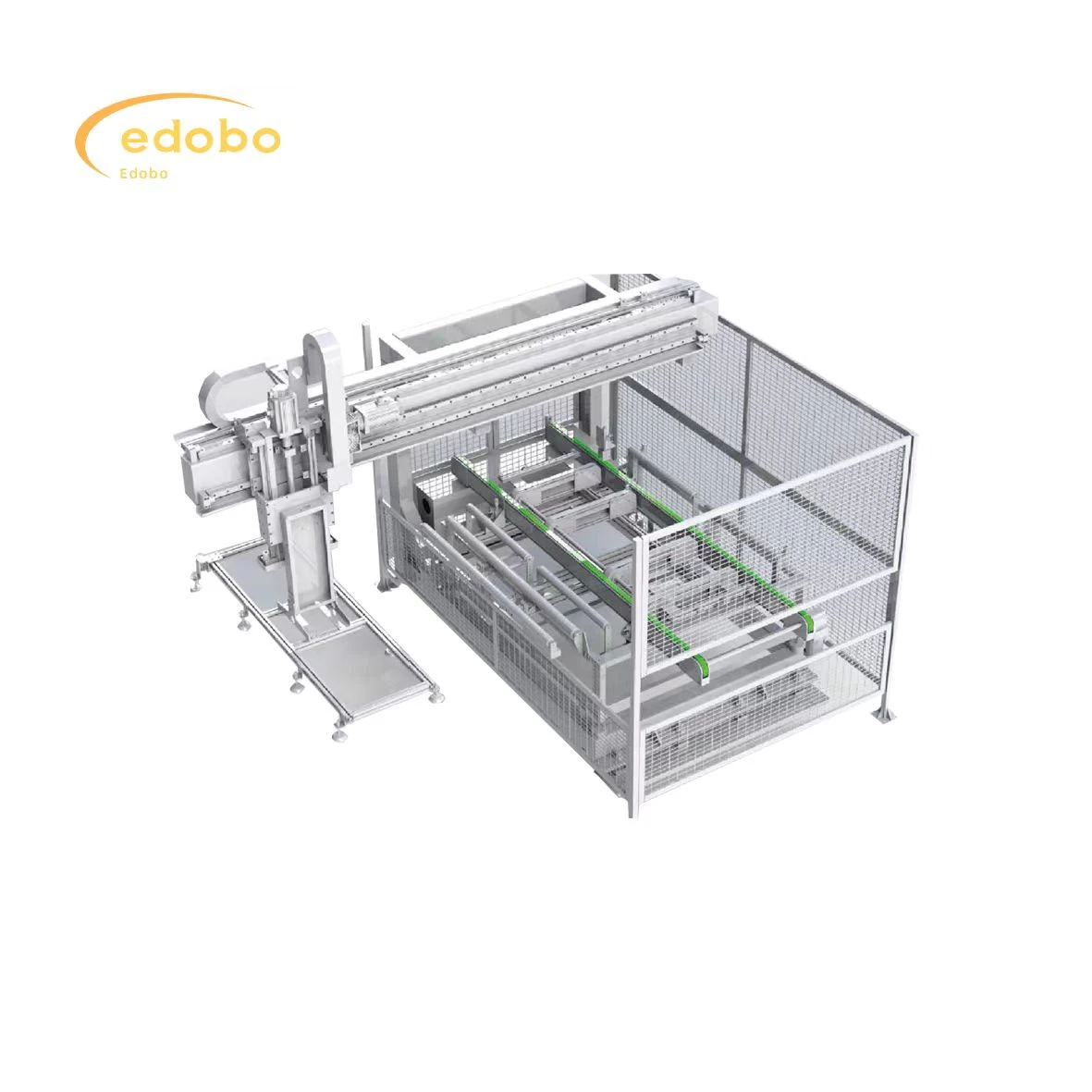

iav unloader

1. Xaiv servo lub cev muaj zog rau kev hloov pauv siab thiab ruaj khov transmi ssion kev ua haujlwm;
2. Cov qauv tsim qauv siab tshaj plaws thiab cov txheej txheem ua haujlwm kom ntseeg tau tias tag nrho cov tshuab ua haujlwm;
3. Tsis siv neeg tag nrho cov txheej txheem tswj kom tsis txhob muaj kev cuam tshuam cov neeg ua haujlwm thiab kev ua haujlwm siab;
4. Lub tshuab tag nrho yog nruab nrog lub laj kab kev nyab xeeb, uas muaj kev tiv thaiv kev nyab xeeb;
5. Khoos phis tawj programming thiab tswj, ntse heev, yooj yim thiab yooj yim rau kev khiav lag luam;
6. Kev teeb tsa yooj yim, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, yooj yim los tswj, thiab tus nqi qis

1. Lub tshuab siv lub tshuab synchronous siv, tsav los ntawm servo lub cev muaj zog, thiab coj los ntawm cov kab qhia kev tsheb ciav hlau, uas muaj qhov zoo ntawm qhov tseeb qhov chaw, kev ua haujlwm ruaj khov, thiab ceev ceev.
2. Lub khob nqus dej yog ua los ntawm polyurethane thiab yuav tsis muaj qhov cim tseg ntawm txoj hlua roj teeb tom qab nqus.
3. Lub tshuab yog nruab nrog lub zog thiab kev tiv thaiv roj.
4. Lub tshuab ua haujlwm tsis siv neeg thiab tsis tas yuav muaj kev cuam tshuam los ntawm phau ntawv.
5. Qhov tseeb qhov chaw ntawm cov hlua roj teeb yog ± 0.3 millimeters
6. Rau txoj hlua hluav taws xob nyob nruab nrab ntawm 1-10 millimeters sib nrug
7. Tau tshaj ntau txoj hlua roj teeb, loj 156/182/210, 6-12 daim
8. Lub ntsiab solar hlwb ntiv tes yog sib xws nrog 2/3/4/5 ntiv tes

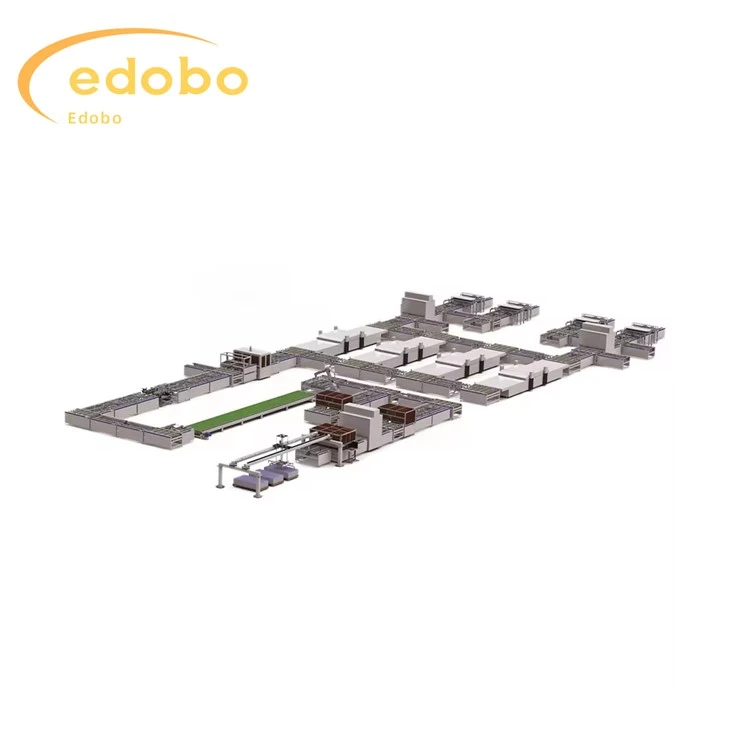

(1) Ntau lawm kab muaj peev xwm: 50MW-500MW/xyoo.
(2) Cov khoom siv hluav taws xob xav tau yog 380V (peb-theem tsib xaim system), thiab lub zog xav tau tuaj yeem pom nyob rau hauv cov khoom siv ntawm txhua chav. Cov kab hluav taws xob teeb tsa yuav muab cais los ntawm peb lub tuam txhab.
(3) Kev xav tau cua compressed rau cov khoom siv yog 0.6-0.8MPa, qhuav, huv si, thiab ua tau raws li cov kev cai ntawm cov kab ntau lawm; Plua plav yam tsawg dua lossis sib npaug li 1um, dej siab dew point Tsawg dua lossis sib npaug rau -40 degree , roj (nrog rau chav) Tsawg dua lossis sib npaug rau 0.1mg/;
(4) Kev huv huv ntawm huab cua hauv lub Hoobkas yuav tsum tsis pub tsawg dua 300000 qib (ISO Class 8);
(5) Cov khoom siv kis tau tus mob ceev: Lub sijhawm sib kis tau tsawg dua 22s, uas ua tau raws li qhov yuav tsum tau muaj peev xwm ntawm 500MW / xyoo. Tag nrho cov kab tau txais kev tswj hwm qhov sib txawv ntawm qhov ceev ceev, nrog rau kev tswj hwm ceev ceev ntawm 30HZ thiab kev tswj ceev ntawm 0-50HZ (kev ceev tshwj xeeb tuaj yeem pom hauv cov khoom siv tsis tau ntawm txhua chav);
(6) Sab nraud qhov ntev ntawm cov kab sib kis: Cov khoom siv no yog cov khoom siv tsis zoo, thiab daim duab kos duab kawg yuav muab los ntawm Edobo Solar;
(7) Kev sib dhos kab qhov siab thiab kev hloov kho ntau yam: Muaj qee qhov siab qhov sib txawv ntawm tus kheej cov cuab yeej siv thiab chav sib kis. Rau cov ncauj lus kom ntxaws sab nraud, thov xa mus rau cov kev tsis sib xws ntawm tus kheej cov cuab yeej; Qhov siab ntawm chav sib kis feem ntau yog 950mm ± 30mm;
(8) Cov kab sib kis thiab cov khoom siv ua haujlwm tuaj yeem hloov kho ntawm cov khoom ntawm qhov ntev (1650mm-2600mm) * dav (950mm-1500mm), ua kom muaj kev thauj mus los ntawm cov khoom hauv ntau txoj kev lamination.
(9) Cov kab sib kis yog du thiab qhov loj me me yog tsawg dua 10mm;
(10) Thaum cov cuab yeej ua haujlwm ib txwm ua, qhov cuam tshuam tsis ua haujlwm los ntawm cov khoom siv thiab cov kab sib txuas yog tsawg dua 1/1000;
(11) Lub suab nrov thaum lub sijhawm ua haujlwm khoom tsawg dua lossis sib npaug li 72dbA (tsis suav cov twj compression)

1. Lub xovtooj ntawm tes txais CCD pom qhov chaw, uas muaj qhov zoo ntawm qhov raug thiab ruaj khov;
2. Cov cuab yeej tuaj yeem tau txais, txiav layout thiab txiav cov khoom xa tawm, thiab cov txheej txheem yog qhov tseeb;
3. Lub khob nqus dej yog ua los ntawm cov khoom siv silicone uas tuaj yeem, uas yuav tsis tawm ntawm qhov chaw ntawm lub roj teeb;
4. Txais peb-axis mechanical motion mode (rotating 180 degree);
5. Lub lateral txav adopts linear motor module, uas muaj qhov zoo ntawm kev txav ceev ceev, siab rov ua dua qhov tseeb thiab kev ua haujlwm ruaj khov, txuag lub sijhawm tag nrho;
6. Ntev thiab luv ntug hloov pauv hloov kho sai sai, kev hloov kho sai, yooj yim, yooj yim thiab txhim khu kev qha;
