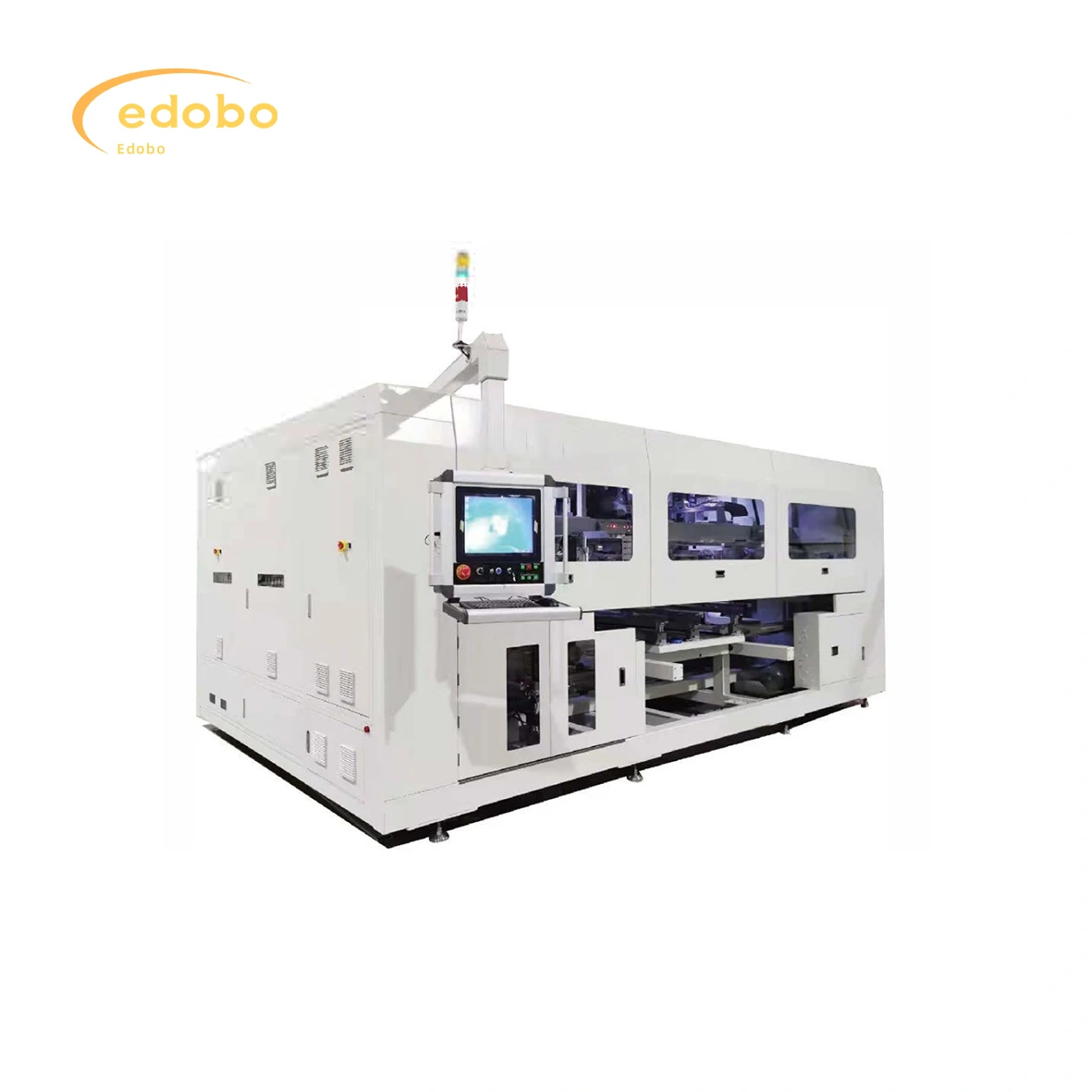

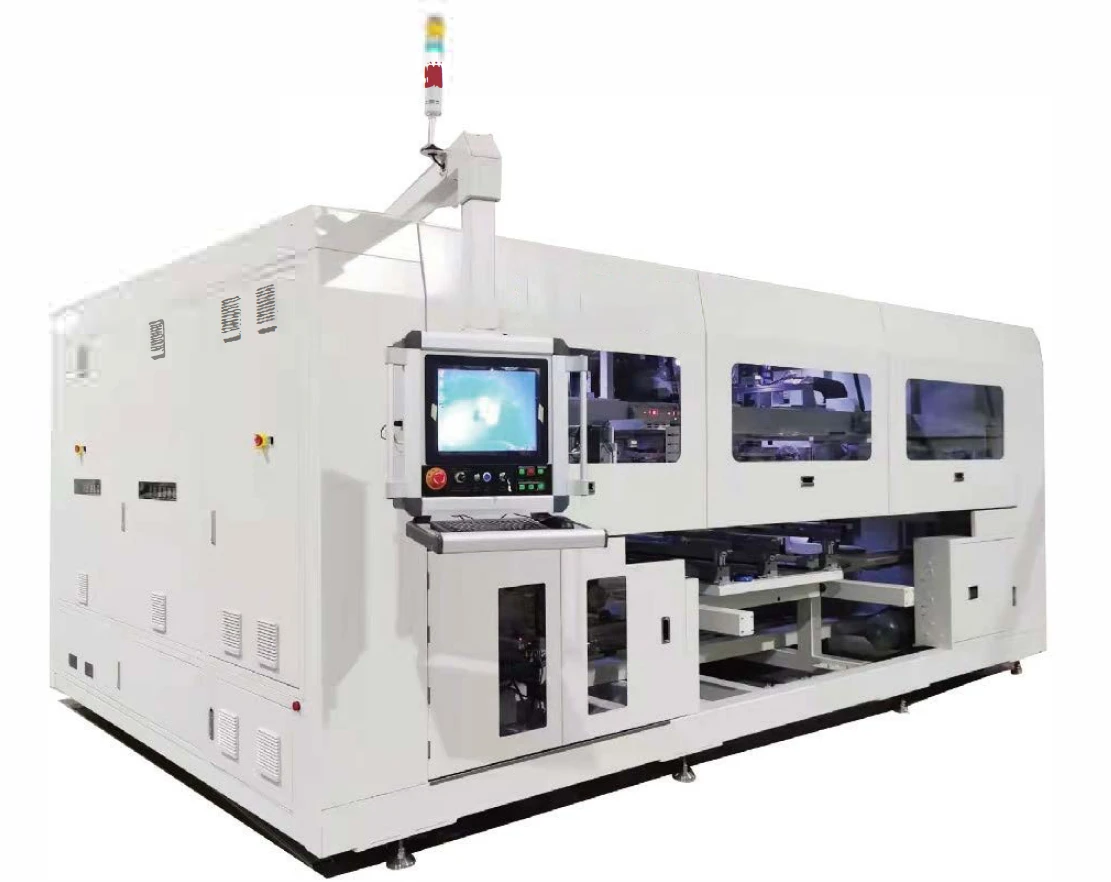

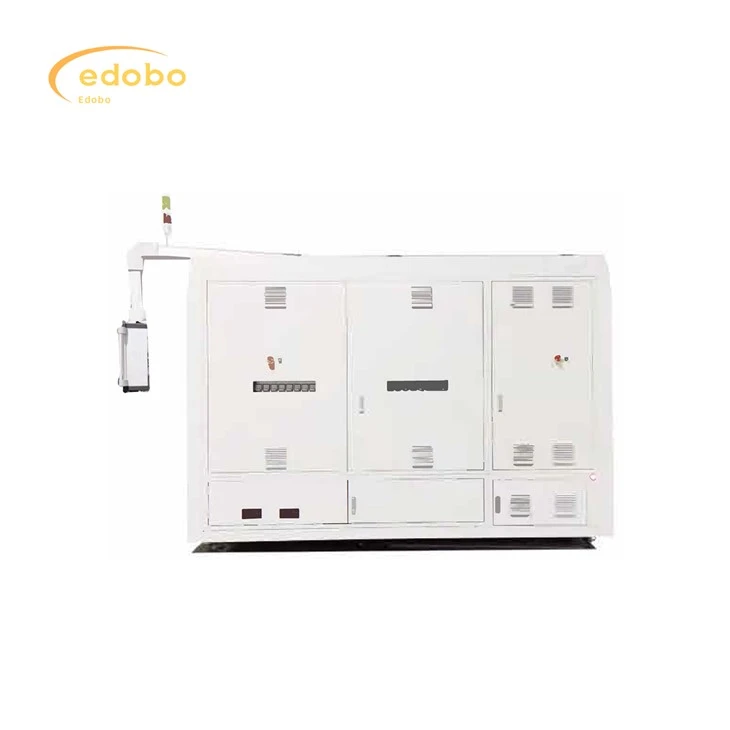

Hnub Ci Vaj Huam Sib Luag Ntau Lawm Kab Auto Bussing

Auto Bussing

Lub xov tooj ntawm tes induction soldering lub taub hau yog siv rau kev sib txuas thiab solder lub tsheb npav ribbon ntawm lub taub hau, nruab nrab thiab tus Tsov tus tw ntawm cov kab tawm hom sib dhos; nws muaj kev ua haujlwm ntawm coil tsheb npav ribbon pub siv thiab khoov U-thiab L-hom ua rau sab saud. Kev nrawm dua; sib xws nrog cov loj loj modules.

♦ Lub sij hawm voj voog: 17sec / vaj huam sib luag (ib leeg bypass soldering) 21 sec / vaj huam sib luag (qhib Ob chav bypass soldering)
♦ Kev Ua Haujlwm: Ntau dua lossis sib npaug li 98%;
♦ Cell Specification: 166mm-230mm;
♦ Vaj huam sib luag specification:
A 156-180 Cell:
6 txoj hlua x 10 ib nrab daim x 2;
6 x 11 x 2;
6 txoj hlua x 12 ib nrab daim x 2;
6 x 13 po x 2 po
B.182 Cell:
6 x 9 x 2 :
C.210 Cell:
6 txoj hlua x 10 ib nrab daim x 2;
6 x 15 x 2 x 3
D.210Cell:
5 txoj hlua x 10 ib nrab daim x 2;
5 txoj hlua x 15 ib qho thib peb x 2
♦ Qhov chaw ntawm tes: -0 5-4mm;
♦ Txoj hlua qhov chaw: 1-6mm; bypass soldering ntawm Txoj hlua qhov chaw Ntau dua lossis sib npaug li 10mm
♦ iav specification: dav (980-1500mm) * ntev(1720-2600mm);
♦ Kev kho qhov tseeb ntawm cov hlua ntawm tes Tsawg dua lossis sib npaug ± 0.25mm;
♦ Khoom siv hluav taws xob: peb-theem 380V 50 / 60Hz:
♦ Lub zog: siab tshaj 35kW; nruab nrab 25kW;
♦ Cua: zoo siab {{0}}.6 ~ 0.8MPa, tsis zoo siab txog - 70kPa;
♦ Cov khoom siv loj: ntev * dav * qhov siab: 6580 * 5604 * 2621 mm (xws li ob kab sib dhos)

♦ Lub sij hawm voj voog 17s, kev kub ceev
♦ Strong compatib 巾ty: sib xws nrog Multi-shard ntawm 6 txoj hlua, 5 txoj hlua ib leeg Bypass soldering thiab 6 txoj hlua ob npaug Bypass soldering
♦ Kho ob zaug rau txoj hauj lwm ntawm 10/12 series hallf piece cell string, grabs cell string by nqus adsorption, ib zaug npliag soldering thiab siab welding raug.
♦ Yooj yim specification hloov dua siab tshiab.
♦ Muaj peev xwm punch qhov kawg ntawm daim npav npav
♦ Ib sab pub, yooj yim rau kev khiav lag luam
♦ Ob chav Bypass soldering kev koom ua ke tuaj yeem ua tau raws li cov neeg siv khoom xav tau rau 6 txoj hlua ob chav Bypass soldering ntawm bypass npav ribbon, tuaj yeem kaw lossis qhib raws li qhov xav tau tiag tiag.
♦ Qhov tsawg tshaj plaws hauv pem teb, qhov qis tshaj CoO.
