Inverter Tawm Grid 5kw

Edobo inverter tawm ntawm kab sib chaws 5kw kev ua kom zoo tshaj plaws kev daws teeb meem, muab cov neeg siv nrog cov kev paub zoo tshaj plaws. Ntshiab sine yoj tso zis kom tau raws li ntau hom kev thauj khoom; mains muab hom nyiam / fais fab txuag hom / roj teeb nyiam hom rau kev sib ntsib yooj yim ntawm cov kev xav tau ntawm cov neeg siv sib txawv.

Xa kev nug

Hauj lwm lawm

Kev tsis

Product Overview:

Lub 5kw off grid inverter yog qhov kev daws teeb meem zoo tshaj plaws rau cov uas tab tom nrhiav los tsim lub zog ntawm nws tus kheej yam tsis tas yuav tsum muaj cov khoom siv hluav taws xob ib txwm muaj. Qhov no inverter yog tsim los muab cov ntshiab sine yoj lub zog rau ntau yam khoom siv, ua rau nws zoo tagnrho rau tsev, cabins, thiab txawm RVs.
Nrog nws lub peev xwm muaj zog, qhov inverter no tuaj yeem hloov DC input voltage rau hauv AC tso zis voltage, muab lub zog ruaj khov thiab ruaj khov rau koj cov khoom siv. Siv cov thev naus laus zis siab tshaj thiab cov khoom siv zoo, lub inverter no boasts high efficiency thiab qis standby zog noj, ua rau nws ib tug eco-phooj ywg thiab nqi-zoo tshuaj.

Cov yam ntxwv tseem ceeb:

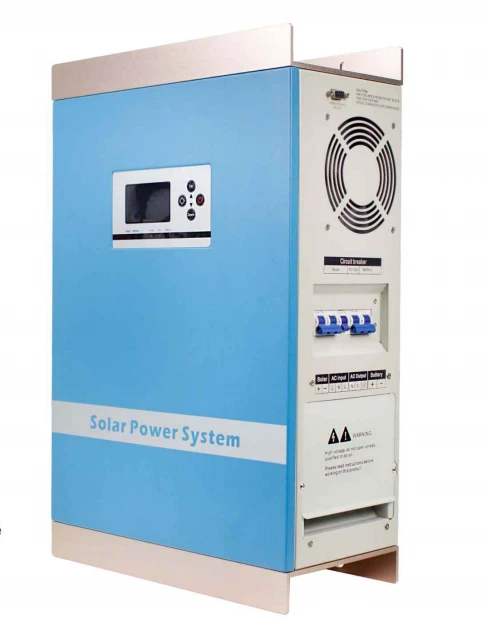

3kw ED-NKW solar inverter with bult-in charge controller

Raws li cov khoom siv hluav taws xob txuas ntxiv mus txuas ntxiv mus rau qhov muaj koob meej, ntau thiab ntau tus neeg tau tig mus rau cov kab hluav taws xob tawm los ua hluav taws xob rau lawv lub tsev thiab kev lag luam. Tab sis ua li ntawd, koj xav tau ib lub zog inverter uas tuaj yeem hloov lub zog DC los ntawm koj qhov chaw txuas ntxiv mus rau AC lub zog siv tau.

Yog tias koj nyob hauv kev ua lag luam rau lub inverter rau koj cov kab sib chaws, qhov loj 5kw yog ib qho kev xaiv rau cov tsev thiab cov lag luam me. Nov yog qee yam uas yuav tsum nco ntsoov thaum koj mus yuav khoom:

1. Sizing: Nws yog ib qho tseem ceeb uas yuav tau xaiv lub inverter uas tsim nyog rau koj lub cev.

2. Hom: Muaj ob lub ntsiab ntawm inverters: ntshiab sine yoj thiab hloov sine yoj. Pure sine yoj inverters tsim lub zog huv dua li hloov sine yoj inverters, thiab feem ntau pom zoo rau cov khoom siv hluav taws xob thiab cov khoom siv.

3. Efficiency: Saib rau cov inverters uas muaj kev ntsuam xyuas kev ua haujlwm siab, vim qhov no yuav ua rau kev ua haujlwm zoo dua thiab txo qis zog.

4. Surge peev: Yog tias koj npaj yuav khiav cov khoom siv nrog lub cev muaj zog, xws li cov tub yees lossis lub tshuab cua txias, koj yuav xav tau lub inverter nrog lub peev xwm surge los tswj cov khoom pib pib. Tshawb xyuas lub inverter qhov ntsuas qhov muaj peev xwm ua ntej ua kev yuav khoom.

5. Warranty: Zoo li txhua yam khoom siv hluav taws xob, inverter tuaj yeem ua tsis tau. Saib rau inverters uas tuaj nrog lub warranty ruaj khov, yog li koj tuaj yeem muaj kev thaj yeeb nyab xeeb ntawm lub siab paub tias koj tau txais kev pab yog tias muaj qee yam yuam kev.

Ua koj cov kev tshawb fawb thiab nrhiav ib qho inverter uas haum koj cov kev xav tau tshwj xeeb thiab nyiaj txiag.

Nco ntsoov, ib qho kev txhim khu kev qha inverter yog ib qho tseem ceeb ntawm cov kab hluav taws xob tawm. Los ntawm kev xaiv lub inverter txoj cai, koj tuaj yeem xyuas kom meej tias koj muaj lub zog ruaj khov, txhim khu kev qha rau xyoo tom ntej.

Qhov no off-grid inverter nta tus neeg siv-phooj ywg tsim uas ua kom yooj yim ua haujlwm thiab teeb tsa. Nws yog txawm peem rau nrog ib tug digital zaub uas muaj cov ntaub ntawv ntawm input thiab output voltage, roj teeb muaj peev xwm, thiab tso zis zog. Tsis tas li ntawd, lub inverter suav nrog kev tiv thaiv overload, luv Circuit Court, dhau-voltage, under-voltage, over-temperature, thiab thim rov qab polarity, kom ntseeg tau tias kev nyab xeeb ntawm koj cov khoom siv.
Rau cov uas tab tom nrhiav kom txo tau lawv cov pa roj carbon hneev taw thiab ua tiav lub zog ywj pheej, 5kw tawm daim phiaj inverter yog qhov kev daws teeb meem zoo tshaj. Nrog cov khoom tsim tau zoo thiab txhim khu kev qha technology, lub inverter no yog tsim los muab kev pab cuam ntau xyoo. Yog li vim li cas tos? Pib tsim koj tus kheej lub zog thiab koom nrog kev hloov pauv ntsuab hnub no nrog 5kw tawm kab sib chaws inverter.

Daim duab thov:

product-1024-454

Technical indexes:

Qauv: ED-NKW-	1 KW	1.5 KW TSI	2 KW	3 KW	5 kWm	6 kWm
Lub zog muaj zog	1 KW	1.5 KW TSI	2 KW	3 KW	5 kWm	6 kWm
Roj teeb
Rated voltage	12/24 VDC	24/48VDC	48 VDC
Tus tswj
Rated tam sim no	60A
Peb-theem them	Boosting, ncaj qha, ntab
Voltage ntawm boosting nqi	28.4V;×2148V;×4/96V;
Voltage ntawm tus nqi ncaj qha	28V;×2/48V;×4/96V;
Voltage ntawm floating nqi	27.6V;×2/48V;×4/96V;
tswj hom	PWM
Mains khoom input
Qhov hluav taws xob	85-138VAC/170-275VAC
Ntau zaus	45-65Hz
Charge tam sim no	30A (Default)-CO-C6
Hom roj teeb	UA-U 7
AC tso zis
Qhov hluav taws xob	110VAC / 220VAC; ± 5% (hom hloov pauv)
Tso zis zaus	50 / 60Hz ± 1% (hloov hom)
Tso zis waveform	Ntshiab sine yoj
Kev ua tau zoo	>85% (80% tiv taus load)
Tshaj dhau	110-120%/30S;>160% / 300ms;
Kev tiv thaiv muaj nuj nqi	Roj teeb tshaj qhov hluav taws xob tiv thaiv, roj teeb nyob rau hauv kev tiv thaiv hluav taws xob, tiv thaiv overload, tiv thaiv luv luv, tiv thaiv kub, thiab lwm yam.
Hloov sijhawm	4-8ms
Ambient kub rau kev ua haujlwm	0-40 degree
ambient kub rau cia	-15-+50 degree
txheeb ze humidity rau kev khiav hauj lwm / cia	0-90% (tsis muaj condensation)
Sab nraud qhov ntev: D × W × H (mm)	290125430		350175550
Ntim qhov ntev: D × W × H (mm)	365205473		445245650

Yantai Edobo Tech Co., Ltd

Edobo yog ib lub tuam txhab ua lag luam hauv kev lag luam ntawm cov khoom siv hnub ci zog. Peb muab ntau yam khoom siv uas tsim los ua kom tau raws li qhov xav tau ntawm lub ntiaj teb niaj hnub no thiab pab peb cov neeg siv khoom kom tau txais txiaj ntsig ntawm cov khoom siv hluav taws xob tauj dua tshiab. Peb cov khoom lag luam suav nrog cov hnub ci vaj huam sib luag, lub tshuab hluav taws xob, lub tshuab hluav taws xob, cov roj teeb, thiab lwm yam khoom siv hnub ci zog..

Pab neeg tshaj lij

peb pab neeg, suav nrog cov kws tshaj lij engineers thiab cov kws tshaj lij, tau mob siab rau muab kev txhawb nqa kev txawj ntse, kev daws teeb meem, thiab kev txawj ntse los xyuas kom meej kev sib koom ua ke ntawm peb cov khoom hnub ci.

Kev Tswj Xyuas Zoo

Peb lub chaw tsim khoom lag luam hauv lub xeev, nrog rau kev ua lag luam raws caij nyoog, xyuas kom meej tias txhua yam khoom raug tsim los ua kom tau raws li cov qauv kev lag luam.

Hu rau tam sim no
