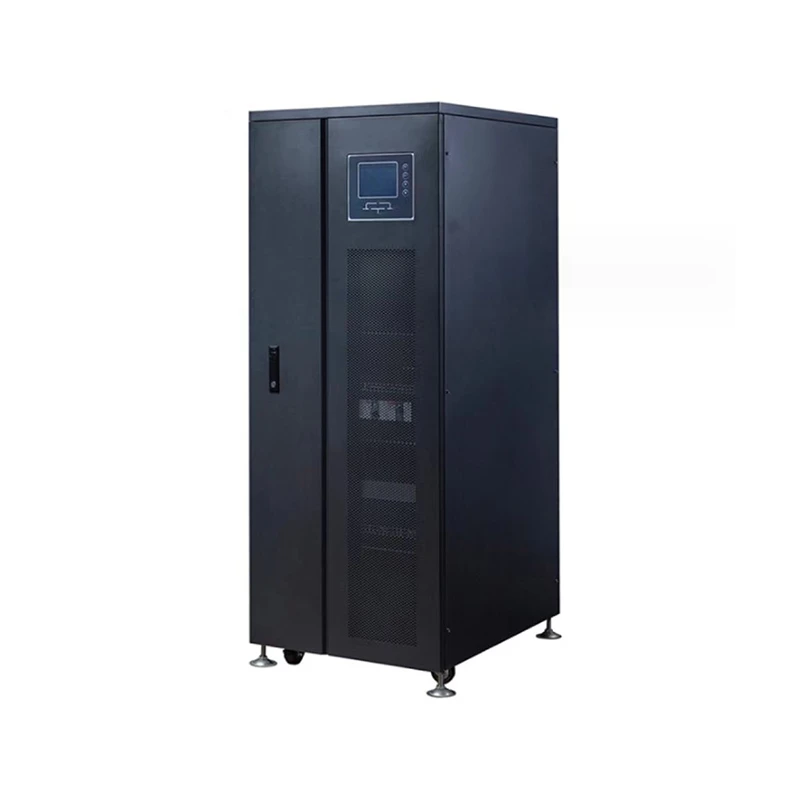

30kw Tawm Grid Inverter
Hauj lwm lawm
Kev tsis
Product Overview:
Cov khoom lag luam tuaj yeem muab kev tiv thaiv kev tiv thaiv hluav taws xob rau cov chaw loj cov ntaub ntawv, cov chav sib txuas hauv computer nrog rau cov hluav taws xob txuas hluav taws xob ntawm thaj chaw xws li kev tsim khoom, kev khiav tsheb thiab lub zog kom tau raws li qhov kev ntseeg siab ntawm cov neeg siv rau cov hluav taws xob loj inverters. Raws li DSP cov cuab yeej tswj xyuas kom raug thiab ob qho tib si hauv MCUs, cov khoom lag luam tuaj yeem tsim cov sine tsis muaj zog thiab muaj kev nyab xeeb thiab txhim khu kev qha rau cov neeg siv khoom.
Cov yam ntxwv tseem ceeb:
Advanced ua haujlwm hom
Kev soj ntsuam ntau zaus, theem-xauv voltage stabilization, suab nrov lim thiab tiv thaiv kev cuam tshuam los ntawm kev hloov pauv ntawm daim phiaj hluav taws xob pom tau zoo hauv cov zis ntawm inverter
Qhov zoo tshaj plaws fais fab mov lav rau cov khoom siv thauj khoom ntawm cov neeg siv tau txais txiaj ntsig los ntawm tag nrho cov digital vector tswj thev naus laus zis raws li lub sijhawm ua tiav los ntawm DSP, MCU thiab DDC
Efficient LGBT (Insulated Gate Bipolar Transistor inversion technology
Qhov zoo ntawm kev hloov pauv ceev, qhov loj-voltage thiab loj-tam sim no kev khiav hauj lwm yam ntxwv, thiab voltage tsav ntawm IGBT (Lub thib tsib-tiam IGBT muaj ib tug tsawg saturation voltage poob thiab ntau dua kev ua hauj lwm efficiency thiab kev cia siab rau.)
High adaptability
Ntau yam input zaus (45Hz ~ 65Hz) uas paub txog kev ua haujlwm ruaj khov ntawm cov tshuab hluav taws xob roj
Muaj peev xwm thauj khoom zoo heev
Haum rau kev lag luam kev siv xws li cov cuab yeej siv tshuab thiab hlau cutters
Txhim khu kev ua tau zoo
Lub zog-on kuaj muaj nuj nqi rau kev tshawb pom raws sij hawm tshem tawm cov kev phom sij
Kev ruaj ntseg siab thiab kev ntseeg siab tau lees paub los ntawm kev sib koom ua ke ntawm kev ua haujlwm suav nrog AC tawm tswv yim tshaj kev tiv thaiv hluav taws xob, AC input nyob rau hauv kev tiv thaiv hluav taws xob, tso zis ntau dhau kev tiv thaiv, kev tiv thaiv luv luv, kev tiv thaiv tam sim no, kev tiv thaiv tsheb npav dhau hluav taws xob, kev tiv thaiv overheat, kiv cua tiv thaiv, kev pabcuam fais fab tuag. kev tiv thaiv, roj teeb nyob rau hauv voltage ceeb toom tiv thaiv, roj teeb overcharge tiv thaiv, thiab lwm yam.
Kev tswj hwm muaj nuj nqi
Loj LCD, pom kev ua haujlwm ntawm cov xwm txheej dhau los ntawm cov kab kos ntws, lub ntsej muag ntse icon kov cov khawm tabular cov ntaub ntawv, cov ntaub ntawv tshwm sim, thiab lwm yam.Visualization ntawm qhov tsis muaj ntawm lub inverter los ntawm kev sib txuas lus nrog lub computer ntawm RS232 / RS485 interface nrog kev pab los ntawm ntse saib xyuas software ntawm lub inverter.
Kev tswj cov roj teeb ntse
Cov roj teeb ntse ntse: Kev hloov pauv ntawm lub roj teeb tus nqi ntsuas raws li lub roj teeb teeb tsa ntawm tus neeg siv, thiab hloov pauv ntawm cov nqi sib npaug thiab cov nqi ntab, qhov kub thiab txias them nqi, thiab kev tswj xyuas tawm raws li cov khoom siv hluav taws xob, uas yuav ua rau lub roj teeb lub neej ntev dua thiab txo lub nra ntawm tus thawj tswj hwm
Kev paub txog lub roj teeb ntse ntse: Kev ntsuas ntawm ib qho kev ntsuas, tso saib cov txiaj ntsig ntsuas ntawm LCD, thiab ceeb toom tam sim thiab ceeb toom rau tus thawj coj thaum muaj teeb meem roj teeb.
Personalized settings:
Kev kho kom raug ntawm cov input parameters raws li input fais fab mov tej yam kev mob
Technical indexes:
|
Qauv: ED-TP |
TP -10KW |
TP -20KW |
TP -30KW |
TP -50KW |
TP -60KW |
TP -80KW |
TP -100KW |
TP -150KW |
TP -200KW |
|
Rated peev |
10 KW |
20 KW |
30 KW |
50 kWm |
60 kWm |
80 KW TSI |
100 KW |
150 KW TSI |
200 KW |
|
Kev ua haujlwm hom thiab lub hauv paus ntsiab lus |
PWM (pulse width modulation) raws li DSP raug tswj thev naus laus zis thiab muab ob npaug rau hauv MCUs Ua tiav kev sib cais ntawm cov khoom siv hluav taws xob |
||||||||
|
AC input |
|||||||||
|
Phase naj npawb |
Peb theem + N + G |
||||||||
|
Qhov hluav taws xob |
AC220V / AC380V ± 20% |
||||||||
|
Ntau zaus |
50Hz / 60Hz ± 5% |
||||||||
|
DC input |
|||||||||
|
DC voltage |
DC192V/DC220V/DC240V/DC384V |
DC 384 V |
|||||||
|
Floating roj teeb |
13.6V ntawm txhua lub roj teeb x roj teeb kom muaj nuj nqis 【13.6V × 16 roj teeb =217.6V】 |
||||||||
|
Txiav tawm voltage |
10.8V ntawm txhua lub roj teeb x roj teeb kom muaj nuj nqis 【10.8V × 16 roj teeb =172.8V】 |
||||||||
|
AC tso zis |
|||||||||
|
Phase naj npawb |
Peb theem + N + G |
||||||||
|
Qhov hluav taws xob |
AC220V / AC380V ± 1% (tsis tu ncua load) |
||||||||
|
Ntau zaus |
5 0Hz / 60Hz ± 5% (cov khoom siv loj) 50Hz ± 0.01% (roj teeb) |
||||||||
|
Kev ua tau zoo |
Ntau dua lossis sib npaug li 90% (load: 100%) |
||||||||
|
Tso zis waveform |
Sine yoj |
||||||||
|
THD |
Linear load:<3%;non-linear load:<5% |
||||||||
|
Dynamic load voltage transient |
<±5%(jump from 0 to 100%) |
||||||||
|
Lub sijhawm rov qab sai sai |
<100ms |
||||||||
|
Lub sijhawm hloov ntawm lub roj teeb thiab cov khoom siv loj |
3S-5S |
<4ms |
|||||||
|
Tsis sib npaug voltage |
<±3%<±1%(balanced load voltage) |
||||||||
|
Muaj peev xwm tshaj |
120%,20s;>150%, 100ms |
125%,20s;>150%,1s |
|||||||
|
System indexes |
|||||||||
|
Kev ua haujlwm efficiency |
Ntau dua lossis sib npaug li 90% (load: 100%) |
||||||||
|
Kev sib txuas lus hauv computer |
RS 232 / RS 485 (SNMP chaw taws teeb saib xyuas network adapter) |
||||||||
|
Ua haujlwm kub |
-10 ~ 40 degree |
||||||||
|
txheeb ze humidity |
0-90% (tsis muaj condensation) |
||||||||
|
Suab nrov |
40-50dB |
50-60dB |
60-70dB |
||||||
|
Qauv |
|||||||||
|
Sab nraud qhov ntev |
580*750*920 |
608*728*1475 |
1138*795*1125 |
1138*945*1725 |
|||||
|
Qhov hnyav (Kg) |
180 |
220 |
300 |
470 |
620 |
680 |
730 |
954 |
980 |
