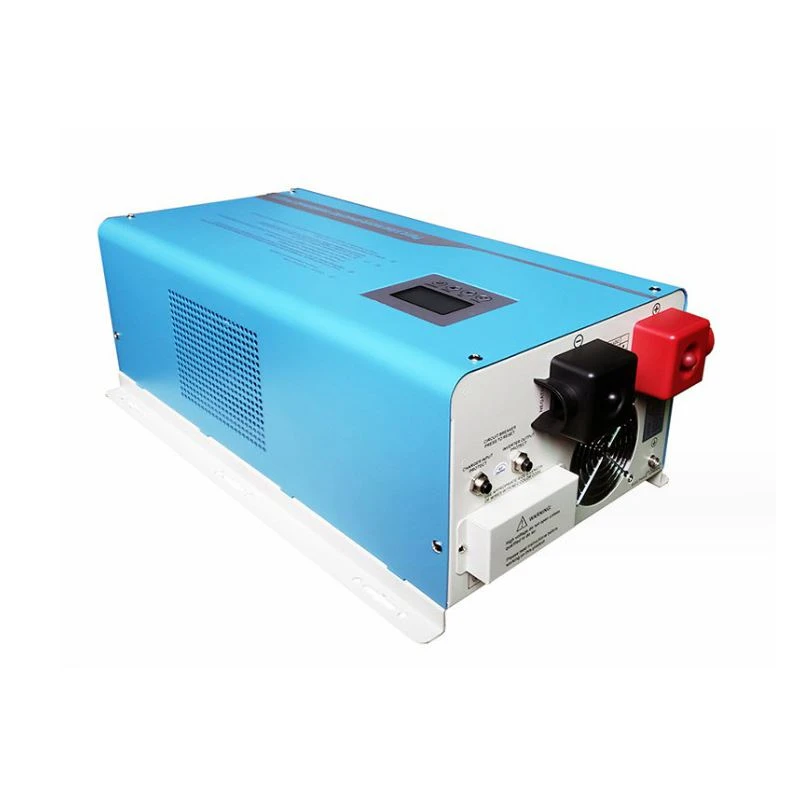

Tib Theem Tawm Grid Inverter
Hauj lwm lawm
Kev tsis
Product Overview:
Nrog ob lub MCUs, cov khoom lag luam muab cov nqi sib txawv thiab cov nqi tam sim no kom paub txog kev tswj hwm cov roj teeb ntawm ntau hom. Nws lub ntsiab muab hom nyiam, hom txuag hluav taws xob thiab roj teeb nyiam hom yog tag nrho cov lus teeb tsa, yog li ua kom yooj yim kom tau raws li cov kev xav tau sib txawv ntawm cov neeg siv. Nws muaj LCD. Nws yog dav siv rau cov tsev neeg, tsev kawm ntawv, txoj kev, kev tiv thaiv pem hauv ntej, thaj chaw pasturing, cov khoom siv hauv tsev, cov khoom siv sib txuas lus satellite, cov khoom siv tub rog, tsheb thauj neeg mob, tsheb tub ceev xwm, nkoj, thiab lwm yam.
Cov yam ntxwv tseem ceeb:
Kev ua tau zoo heev vim yog ob chav MCU Intelligent tsim
Ntshiab sine yoj tso zis rau compatibility nrog loads ntawm ntau hom
Kev pom kev ua haujlwm ntawm cov khoom siv los ntawm cov LCDA ntau yam ntawm cov khoom siv hluav taws xob, cov zis tawm raug thiab tag nrho tsis siv neeg voltage stabilization
Settable roj teeb hom thiab them tam sim no rau kev tswj cov roj teeb ntawm ntau hom FT / FT-B
Settable mains muab hom nyiam, hom txuag hluav taws xob thiab roj teeb nyiam hom rau kev sib ntsib yooj yim ntawm cov kev xav tau ntawm cov neeg siv sib txawv
Kev tiv thaiv tag nrho (roj teeb tiv thaiv overvoltage, roj teeb hauv kev tiv thaiv hluav taws xob, tiv thaiv overload tiv thaiv luv luv tiv thaiv thiab tiv thaiv kub dhau)

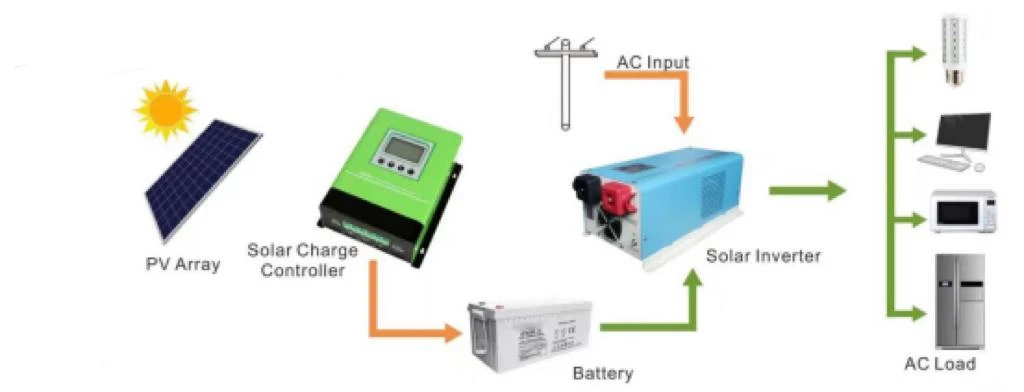

Daim duab thov:
Technical indexes -1:
|
Homl:ED-FT-B |
0.3KW |
0.5KW |
0.7 KW |
0.7 KW |
1 KW |
|
Rated zog |
300W |
500W |
700W |
700W |
1000W |
|
Roj teeb |
|||||
|
Rated voltage |
12VDC / 24VDC |
24 VDC |
12 VDC |
12VDC / 24VDC |
|
|
Tswv yim |
|||||
|
Voltage ntau |
73-138VAC/145-275VAC |
||||
|
Ntau zaus |
45-65Hz |
||||
|
Khoom loj: L * W * H (mm) |
302*122*188 |
316*149*215 |
|||
|
Pob qhov loj: L * W * H (mm) |
375*195*260 |
410*215*280 |
|||
Technical indexes -2:
|
Qauv: ED-FT |
1 KW |
1.5 KW TSI |
2 KW |
3 KW |
4 KW |
5 kWm |
6 kWm |
8 kWm |
|
Rated zog |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
8000W |
|
Roj teeb |
||||||||
|
Rated voltage |
12VDC / 24VDC / 48VDC |
24VDC / 48VDC |
48VDC / 96VDC |
|||||
|
Charge tam sim no |
30A (default)-CO-C6 |
|||||||
|
Hom roj teeb |
UA-U 7 |
|||||||
|
Tswv yim |
||||||||
|
Voltage ntau |
85-138VAC/170-275VAC |
|||||||
|
Ntau zaus |
45-65Hz |
|||||||
|
Khoom loj: L * W * H (mm) |
486*247*179 |
555*307*189 |
653*332*260 |
|||||
|
Pob ntawv loj: L * W * H 9mm) |
550*310*230 |
640*370*240 |
715*365*310 |
|||||
Technical indexes -3:
|
Common Technical Index |
|
|
Tso zis |
|
|
Voltage ntau |
110VAC / 220VAC; ± 5% (Inversion hom) |
|
Ntau zaus |
50 / 60Hz ± 1% (Kev hloov pauv hom) |
|
Tso zis nthwv dej |
Ntshiab sine yoj |
|
Hloov lub sijhawm |
<10ms(Typical load) |
|
Kev ua tau zoo |
>85% (80% tiv taus load) |
|
Tshaj dhau |
110-120%/30S;>160% / 300ms; |
|
Kev tiv thaiv muaj nuj nqi |
Roj teeb overvoltage tiv thaiv, roj teeb nyob rau hauv voltage tiv thaiv, overload, tiv thaiv, luv luv tiv thaiv, tiv thaiv kub, thiab lwm yam |
|
Kev ua haujlwm ntawm Ambient Kub |
0-40 degree |
|
ambient kub rau cia |
-15-+50 degree |
|
Kev ua haujlwm / khaws cia ambient |
0-90% Tsis muaj condensation |
