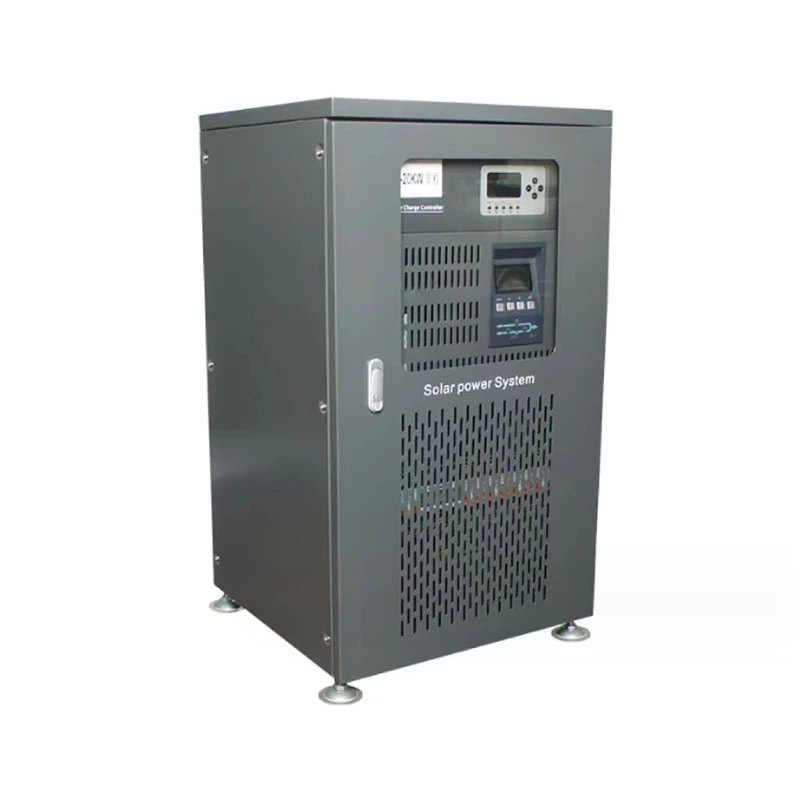

Tawm Grid Inverter System
Hauj lwm lawm
Kev tsis
Product Overview:
Cov khoom yog ib qho kev sib xyaw ua ke ntse inverter nrog built-in charger system tsim rau lub zog loj photovoltaic. Nws built-in maub los tuaj yeem paub txog kev tswj hwm tus nqi rau lub roj teeb pob los ntawm ntau lub hnub ci arrays txhawm rau txhim kho cov nqi hluav taws xob thiab lub neej ntawm lub roj teeb pob. Ua tsaug rau nws cov cuab yeej digital vector tswj tag nrho raws li lub sijhawm ua tiav los ntawm DSP, MCU thiab DDC, nws muaj kev tiv thaiv zoo tshaj plaws thiab muaj kev ntseeg siab. Nws cov mains muab hom nyiam, thiab roj teeb nyiam hom yog tag nrho cov teeb tsa, yog li ua kom yooj yim kom tau raws li cov kev xav tau sib txawv ntawm cov neeg siv. Nws muaj LCD. t yog dav siv rau lub hnub ci tsim hluav taws xob loj loj xws li tsev neeg, tsev kawm ntawv, teeb pom kev zoo rau pej xeem, kev lag luam thiab kev lag luam mining, kev tiv thaiv pem hauv ntej, hiav txwv Islands tuaj, thaj chaw pasturing, thiab lwm yam.
Cov yam ntxwv tseem ceeb:
Kev ntseeg siab
Kev taug qab zaus, suab nrov lim thiab tsis tshua muaj kev cuam tshuam hauv inverter tso zis vim yog kev hloov pauv ob zaug
Siab adaptability
Muaj ntau yam input zaus, uas paub txog kev ua haujlwm ruaj khov ntawm cov tshuab hluav taws xob roj
Kev ua haujlwm siab zoo ntawm lub roj teeb
Lub roj teeb ntse tswj thev naus laus zis, uas lav lub roj teeb lub neej ntev dua thiab txo lub sijhawm ntawm kev saib xyuas roj teeb Ib qho thev naus laus zis thev naus laus zis thev naus laus zis, uas ua kom lub roj teeb mus rau qhov zoo tshaj plaws, txuag lub sijhawm them nqi thiab lav lub roj teeb ntev dua.
Zuag qhia tag nrho thiab txhim khu kev qha tiv thaiv
Kev ntsuas hluav taws xob muaj nuj nqi, uas tuaj yeem zam qhov tsis raug vim muaj kev phom sij ntawm inverter Efficient IGBT (Insulated Gate Bipolar Transistor) inversion thev naus laus zis Zoo siab hloov pauv feature, loj-voltage thiab loj-tam sim no kev khiav hauj lwm yam ntxwv, thiab voltage tsav ntawm IGBT (Ib tiam thib tsib IGBT muaj qhov qis qis qis qis thiab ua haujlwm siab dua thiab kev ntseeg siab.)

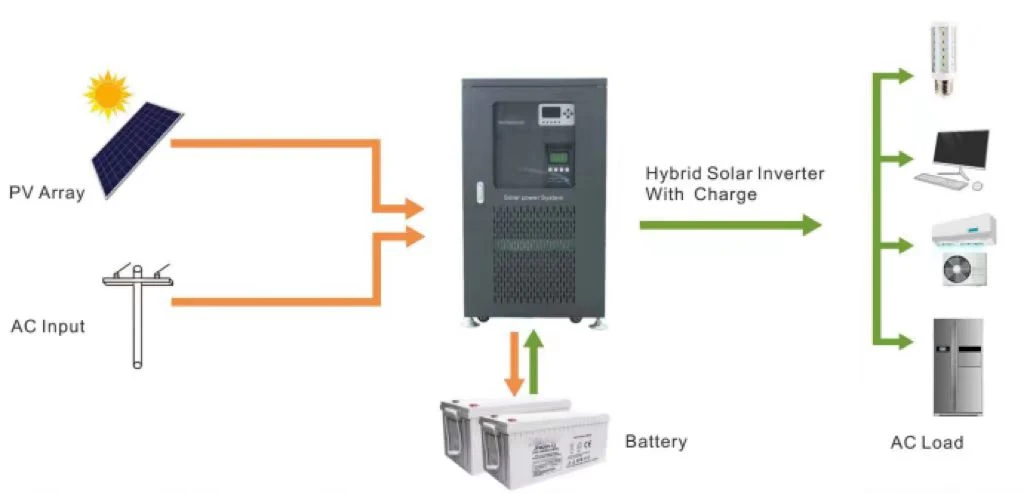

Daim duab thov:
Technical indexes:
|
Qauv: ED-NKD |
NKWD-8KW |
NKWD-10KW |
NKWD-15KW |
NKWD-20KW |
NKWD-30KW |
|
Rated zog |
8 kWm |
10 KW |
15 KW |
20 KW |
30 KW |
|
Roj teeb |
|||||
|
Rated voltage |
96 VDC / 192VDC / 220VDC / 384VDC |
||||
|
Voltage ntawm tshaj tawm kev tiv thaiv |
96VDC / 172VDC / 194VDC / 345VDC |
||||
|
Tus tswj |
|||||
|
Rated tam sim no |
100A |
||||
|
Rated voltage |
192VDC / 220VDC / 384VDC |
||||
|
Tus naj npawb ntawm cov nqi nkag |
4 |
||||
|
Qhov siab tshaj plaws tam sim no ntawm txhua qhov kev nkag |
25A |
||||
|
Hnub ci input voltage |
<165VDC/<330VDC/<378VDC/<660VDC |
||||
|
Voltage ntawm overcharge tiv thaiv |
110VDC / 222VDC / 255VDC / 445VDC (programmable |
||||
|
Tswj qhov tseeb |
±0.1 |
||||
|
Qhia qhov tseeb |
±0.1 |
||||
|
Kev ua tau zoo |
>90% |
||||
|
Inverter |
|||||
|
input voltage |
88-132VAC/176-264VAC |
||||
|
Input zaus |
45-65Hz |
||||
|
Output voltage |
110VAC / 220VAC |
||||
|
Tso zis zaus |
50/60Hz |
||||
|
Tso zis waveform |
Pure sine wave, THD<4%(full load) |
||||
|
Kev tiv thaiv muaj nuj nqi |
Kev tiv thaiv luv luv Circuit Court, dhau voltage tiv thaiv, nyob rau hauv voltage tiv thaiv, tsis tshua muaj roj teeb tiv thaiv, thiab lwm yam |
||||
|
Manual power-on/off |
Kev tuav fais fab-on/off nyiam |
||||
|
Tsis siv neeg lub hwj chim qhib / tawm |
Lub teeb ua haujlwm fais fab-on + tsau-lub sij hawm fais fab tuag (programmable) |
||||
|
Hloov sijhawm |
<10ms |
||||
|
Lwm yam |
|||||
|
Ambient kub rau kev ua haujlwm |
0-40 degree |
||||
|
txheeb ze humidity rau kev khiav hauj lwm / cia |
20-90% (tsis muaj condensation, siab tshaj) |
||||
|
Sab nraud qhov ntev D × W × H (mm) |
536*560*1015 |
||||
|
Ntim qhov ntev: D × W × H (mm) |
675*700*1180 |
||||
