Product Overview:
Cov khoom lag luam yog cov khoom siv hluav taws xob ruaj khov thiab txhim khu kev qha tsim los ntawm SNAT kom ua tau raws li qhov yuav tsum tau muaj kev ntseeg siab rau cov phiaj xwm hluav taws xob thiab lub network. Nws qhov kev ua tau zoo ua rau nws muab kev nyab xeeb, txhim khu kev qha thiab kev tiv thaiv tag nrho rau kev thauj khoom xws li cov chaw zov me nyuam cov ntaub ntawv, cov cuab yeej tswj kev lag luam, cov cuab yeej siv kho mob thiab cov khoom siv hauv tsev. Nws muaj kev tiv thaiv zoo tshaj plaws thiab muaj kev ntseeg siab vim yog tag nrho cov digital vector tswj thev naus laus zis raws sijhawm ua tiav los ntawm DSP, MCU thiab DDC. Nyob rau hauv ob qho tib si cov ntshiab sine yoj tso zis hom thiab lub inversion hom, nws muaj peev xwm output ib tug ntshiab sine yoj fais fab mov nrog tsawg distortion, yog li muab qhov zoo tshaj plaws fais fab mov lav rau cov khoom siv thauj khoom ntawm cov neeg siv.
Cov yam ntxwv tseem ceeb:
Kev ntseeg siab
Kev taug qab zaus, suab nrov lim thiab tsis tshua muaj kev cuam tshuam hauv inverter tso zis vim yog kev hloov pauv ob zaug
High adaptability
Muaj ntau yam input zaus, uas paub txog kev ua haujlwm ruaj khov ntawm cov tshuab hluav taws xob roj
Kev ua haujlwm siab zoo ntawm lub roj teeb
Lub roj teeb ntse tswj thev naus laus zis, uas lav lub roj teeb lub neej ntev dua thiab txo lub sijhawm ntawm kev saib xyuas roj teeb
Lub tshuab thev naus laus zis thev naus laus zis tsis tu ncua, uas ua kom lub roj teeb ua haujlwm tau zoo, txuag lub sijhawm them nqi thiab lav lub roj teeb ntev dua
Zuag qhia tag nrho thiab txhim khu kev qha tiv thaiv
Kev ntsuas hluav taws xob ua haujlwm, uas tuaj yeem zam qhov tsis raug vim muaj kev phom sij ntawm inverter
Zuag qhia tag nrho tsis siv neeg kev tiv thaiv thiab tswb xws li tso zis overload tiv thaiv
Ua tau zoo IGBT (Insulated Gate Bipolar Transistor) inversion thev naus laus zis
Zoo high-speed switching feature, loj-voltage thiab loj-tam sim no kev khiav hauj lwm yam ntxwv.and voltage tsav ntawm IGBT (Lub tsib-tiam IGBT muaj ib tug tsawg saturation voltage poob thiab ntau dua kev ua hauj lwm efficiency thiab kev cia siab rau.)

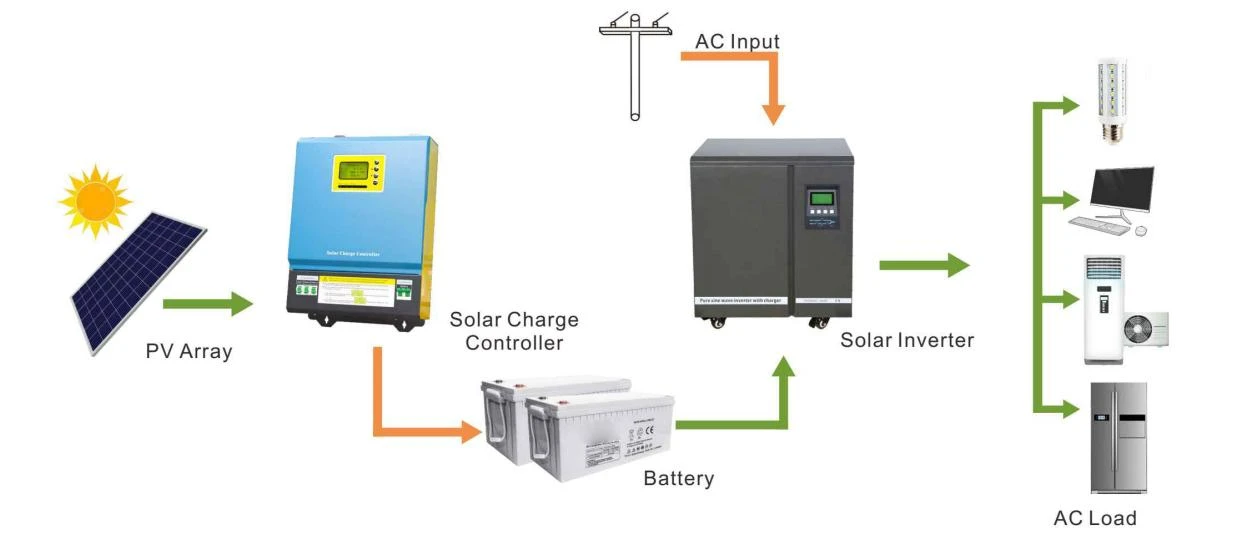

Daim duab thov:
Technical indexes:
|
Qauv:ED-SN- |
6 kWm |
8 kWm |
10 KW |
12 kWm |
15 KW |
20 KW |
|
Rated zog |
6 kWm |
8 kWm |
10 KW |
12 kWm |
15 KW |
20 KW |
|
Roj teeb |
||||||
|
Lub zog hluav taws xob |
96VDC / 192VDC |
192vdc ua |
||||
|
Charge tam sim no |
10A-20A |
|||||
|
Kev tiv thaiv hluav taws xob tsawg |
84VDC / 168VDC |
168 VDC UAS |
||||
|
Tswv yim |
||||||
|
Voltage Ntau |
88-132VAC/176-264VAC |
|||||
|
Ntau zaus |
45-65Hz |
|||||
|
Tso zis |
||||||
|
Ntau zaus |
50 / 60Hz ± 1% (Inversion hom) |
|||||
|
Voltage Ntau |
110VAC / 220VAC; ± 5% (Inversion Hom) |
|||||
|
Tso zis Waveform |
Ntshiab sine Wave |
|||||
|
Hloov lub sij hawm |
<10ms(Typical Load |
|||||
|
Ffficiency |
>85% (100% Resistive Load) |
>90% (100% Resistive Load) |
||||
|
Tshaj dhau |
110-120%/30S;>160% / 300ms; |
|||||
|
Kev tiv thaiv muaj nuj nqi |
Roj teeb tshaj qhov hluav taws xob tiv thaiv, roj teeb nyob rau hauv kev tiv thaiv hluav taws xob, tiv thaiv overload, tiv thaiv luv luv, tiv thaiv kub, thiab lwm yam. |
|||||
|
Kev ua haujlwm ntawm Ambient Temperature |
0-40 degree |
|||||
|
Ambient Temperature rau Cia |
-15-+50 degree |
|||||
|
Kev ua haujlwm / khaws cia combient |
0-90% Tsis muaj condensation |
|||||
|
Qhov Loj: D × H × H (mm) |
555*368*695 |
655*383*795 |
||||
|
Qhov hnyav tag nrho (KG) |
80 |
90 |
110 |
130 |
150 |
170 |
